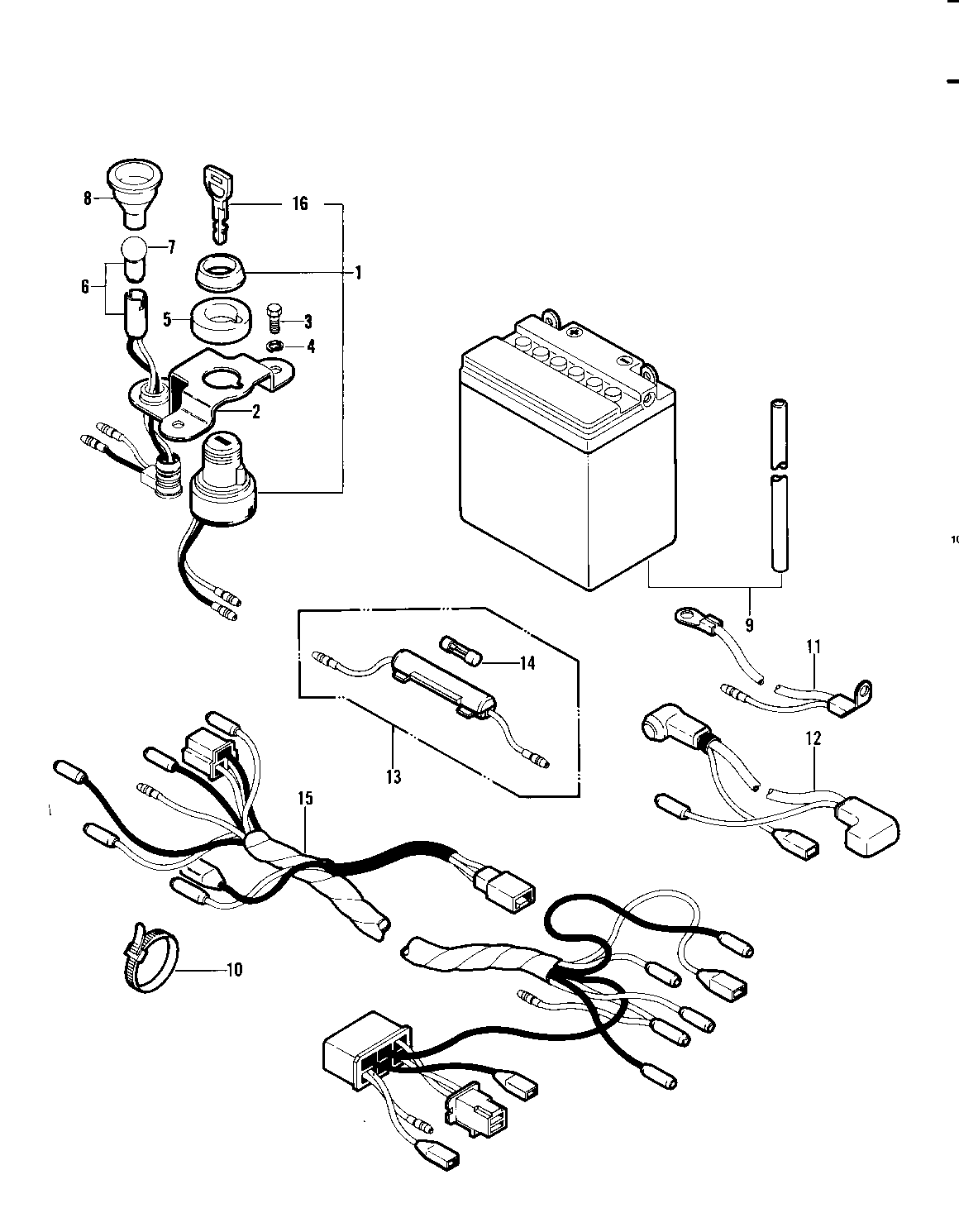

1982 KLT250 - CHASSIS ELECTRICAL EQUIPMENT ('82 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SWITCH-ASSY-IGNITION | 1 | 27005-1117 | 1 | ||
| BRACKET-SWITCH,IGNITI | 2 | 32059-4002 | 1 | ||
| BOLT-UPSET 6X14 | 3 | 112B0614 | 2 | ||
| WASHER SPRING 6MM | 4 | 461F0600 | 2 | ||
| DAMPER IGNITION SWITH | 5 | 92075-4016 | 1 | ||
| LIGHT ASSY | 6 | 23016-4002 | 1 | ||
| BULB 12V 3W | 7 | 92069-018 | 1 | ||
| TUBE | 8 | 92059-1559 | 1 | ||
| FB BAT FB12A-A | 9 | 26012-1004 | 1 | ||
| BAND | 10 | 92072-3505 | 4 | ||
| WIRE,BATTERY GROUND | 11 | 26010-052 | 1 | ||
| WIRE-LEAD,BATTERY | 12 | 26011-4004 | 1 | ||
| FUSE ASSY | 13 | 26004-013 | 1 | ||
| FUSE-20A | 14 | 26006-005 | 1 | ||
| HARNESS,MAIN | 15 | 26001-4015 | 1 | ||
| KEY-LOCK,BLANK | 16 | 27008-1103 | 1 |
| SWITCH-ASSY-IGNITION | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-SWITCH,IGNITI | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET 6X14 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER IGNITION SWITH | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LIGHT ASSY | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB 12V 3W | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TUBE | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FB BAT FB12A-A | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BAND | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WIRE,BATTERY GROUND | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,BATTERY | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE ASSY | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FUSE-20A | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HARNESS,MAIN | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| KEY-LOCK,BLANK | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
