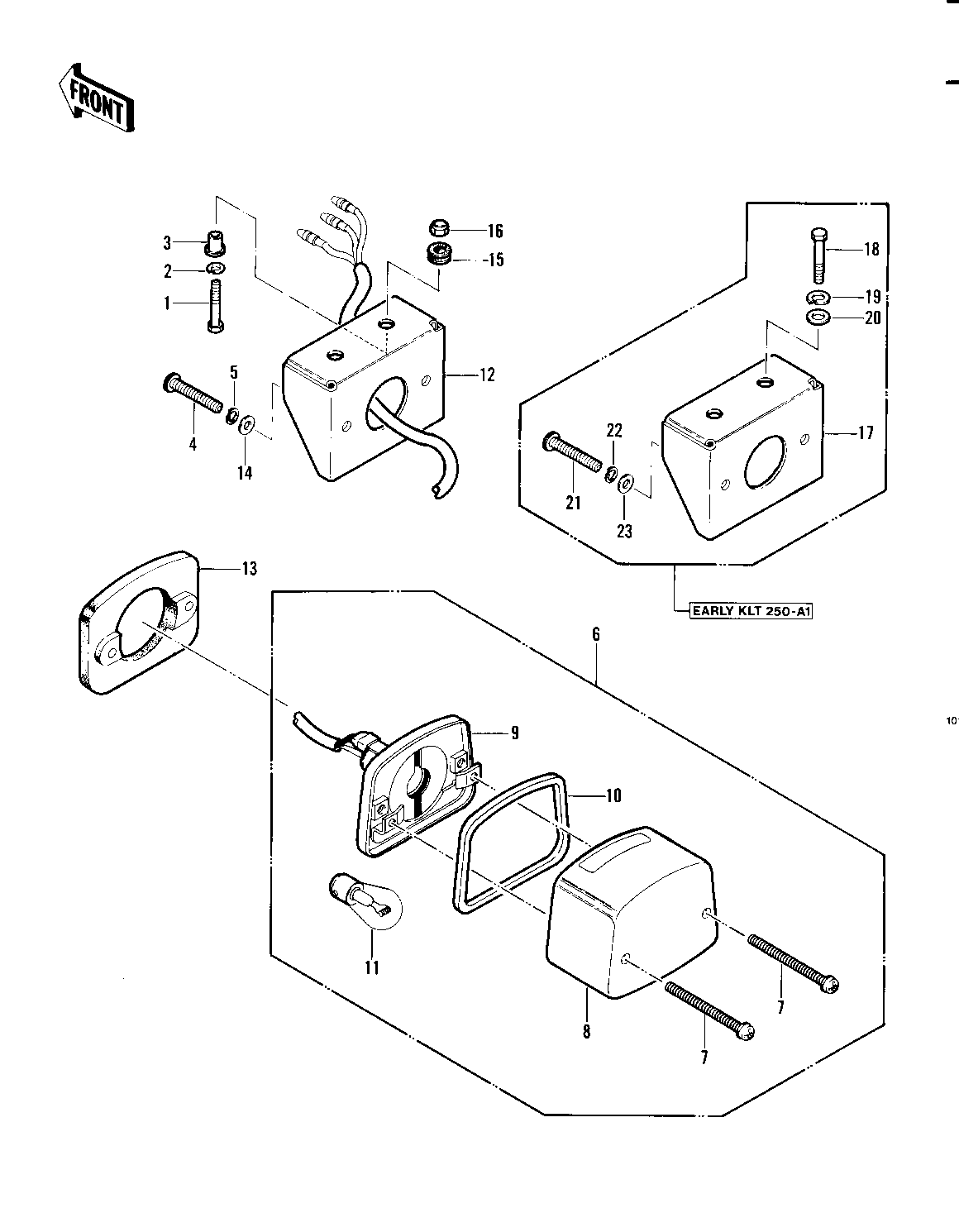

1982 KLT250 - TAILLIGHT ('82 A1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT-UPSET,6X20 1 112G0620 2
WASHER SPRING 6MM 2 461F0600 2
COLLAR 3 92027-1045 2
SCREW PAN HEAD 5X18 4 220B0518 2
WASHER SPRING 5MM 5 461F0500 2
LAMP,TAIL 6 23025-4001 1
SCREW-PAN-CROS 7 220B0330 2
LENS,TAIL LAMP 8 23026-040 1
CASE,TAIL LAMP 9 23027-044 1
GASKET,TAIL LIGHT 10 23028-020 1
BULB,12V 32/3CP 11 92069-059 1
BRACKET-TAIL LAMP 12 23036-4003 1
DAMPER RUBBER 13 92075-4014 1
WASHER PLAIN 5MM 14 410B0500 2
DAMPER RUBBER 15 92075-277 2
NUT 16 92019-008 2
BRKT,TAIL LAMP 17 23036-4002 1 EARLY KLT250-A1
BOLT-UPSET,6X12 18 112G0612 2 EARLY KLT250-A1
WASHER SPRING 6MM 19 461F0600 2 EARLY KLT250-A1
WASHER PLAIN 6MM 20 411B0600 2 EARLY KLT250-A1
UNAVAILABLE IN PRICE BOOK 21 214B0516A 2 EARLY KLT250-A1
WASHER SPRING 5MM 22 461F0500 2 EARLY KLT250-A1
WASHER,PLAIN,6MM 23 92022-263 2 EARLY KLT250-A1
