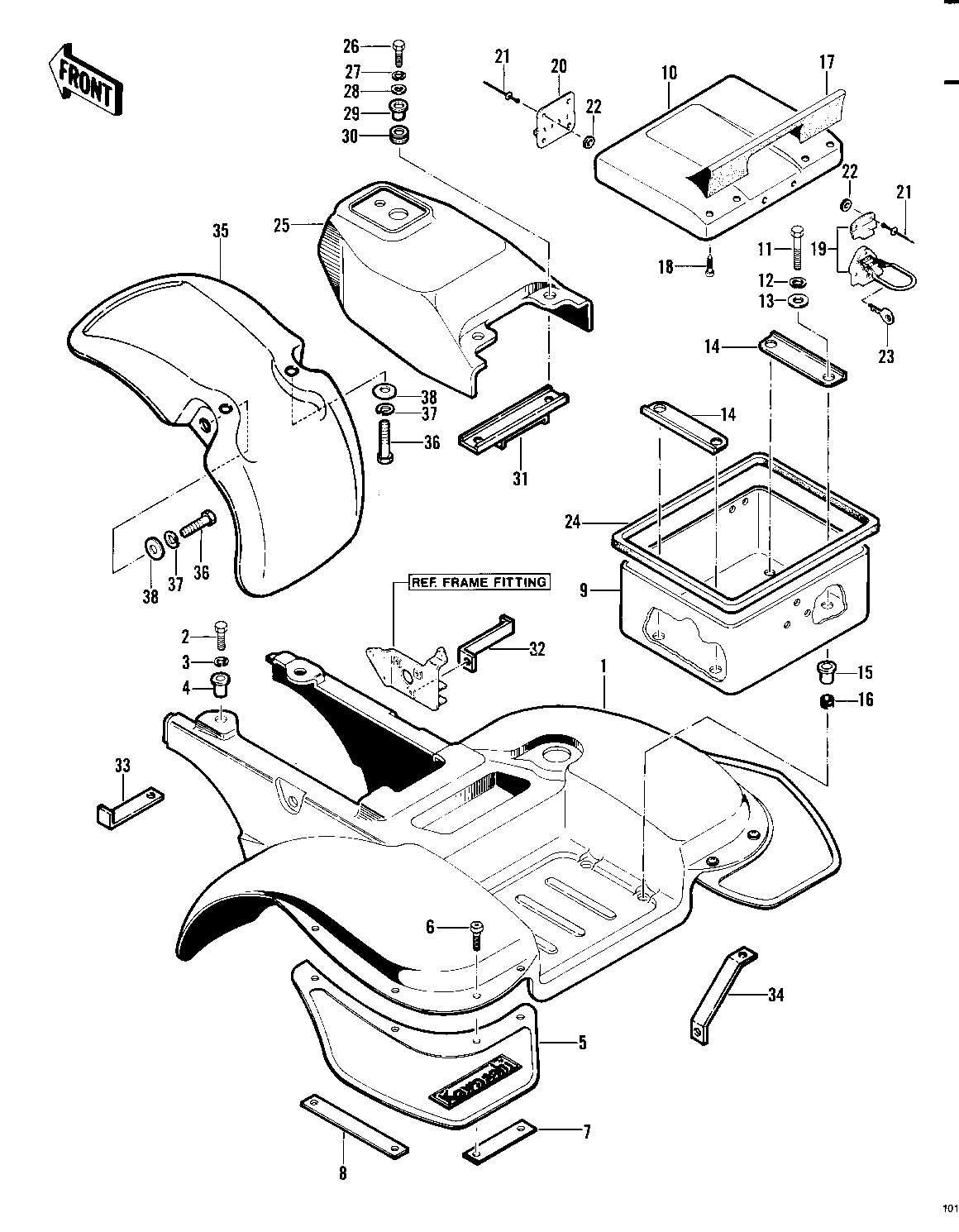

1982 KLT250 - FENDERS/COVER/TRUNK ('82 A1)
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FENDER-RR,L.GREEN | 1 | 35022-4003-6W | 1 | ||
FENDER-RR,BLACK | 1 | 35022-4003-6D | 1 | ||
BOLT-UPSET 6X14 | 2 | 112B0614 | 2 | ||
WASHER SPRING 6MM | 3 | 461F0600 | 2 | ||
COLLAR,L=5 | 4 | 92027-4020 | 2 | ||
FLAP | 5 | 35019-4004 | 2 | ||
SCREW,6X20 | 6 | 92009-1289 | 8 | ||
BRACKET,FLAP | 7 | 11034-4062 | 2 | ||
BRACKET,FLAP | 8 | 11034-4063 | 2 | ||
CASE-TRUNK | 9 | 32099-4006 | 1 | ||
COVER,TRUNK,LM GREEN | 10 | 14025-4016-6W | 1 | ||
COVER,TRUNK,BLACK | 10 | 14025-4016-6D | 1 | ||
BOLT,8X40 | 11 | 115G0840 | 4 | ||
WASHER SPRING 8MM | 12 | 461F0800 | 4 | ||
WASHER PLAIN 8MM | 13 | 410B0800 | 4 | ||
PLATE | 14 | 13169-4017 | 2 | ||
COLLAR,FUEL TANK FITT | 15 | 92027-1134 | 4 | ||
DAMPER RUBB TANK FRNT | 16 | 92075-013 | 4 | ||
GRIP | 17 | 46075-4002 | 1 | ||
SCREW-.125X.50 | 18 | 92009-4010 | 4 | ||
LATCH | 19 | 49031-4002 | 1 | ||
HINGE | 20 | 53009-4001 | 2 | ||
RIVET | 21 | 92039-004 | 13 | ||
WASHER | 22 | 92022-4017 | 13 | ||
KEY SET-POLICE SDDLBG | 23 | 27008-4001 | 1 | ||
SEAL-TRUNK | 24 | 92093-4003 | 1 | ||
COVER,FR,LM GREEN | 25 | 14025-4015-6W | 1 | ||
COVER,FR,BLACK | 25 | 14025-4015-6D | 1 | ||
BOLT-UPSET | 26 | 112G0625 | 2 | ||
WASHER SPRING 8MM | 27 | 461F0800 | 2 | ||
WASHER PLAIN 8MM | 28 | 411B0800 | 2 | ||
COLLAR | 29 | 92027-194 | 2 | ||
DAMPER RUBBER | 30 | 92075-112 | 2 | ||
BRACKET-SEAT | 31 | 32046-4012 | 1 | ||
BRACE-FNDR,RH FT | 32 | 35009-4002 | 1 | ||
BRACE-FNDR,LH FT | 33 | 35009-4001 | 1 | ||
BRACE-FNDR,REAR | 34 | 35009-4003 | 2 | ||
FENDER-FR,LIME GREEN | 35 | 35004-4003-6W | 1 | ||
FENDER-FR,BLACK | 35 | 35004-4003-6D | 1 | ||
BOLT-UPSET 6X14 | 36 | 112B0614 | 4 | ||
WASHER SPRING 6MM | 37 | 461F0600 | 4 | ||
WASHER 6.5X20X1.6T | 38 | 92022-125 | 4 |
