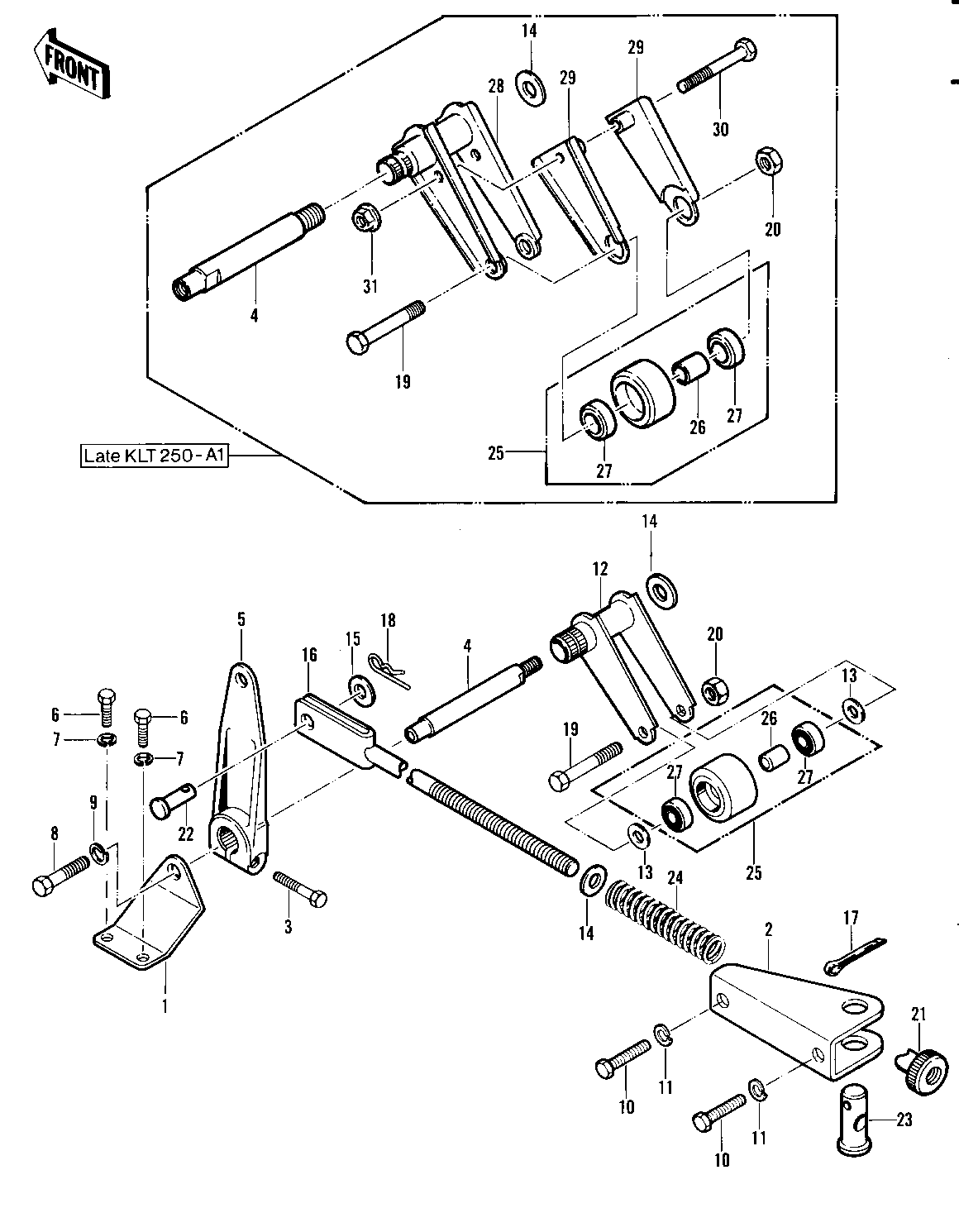

1982 KLT250 - CHAIN TENSIONER ('82 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,LEVER TENSION | 1 | 11034-4060 | 1 | ||
| BRACKET,CHAIN ADJUST | 2 | 11034-4061 | 1 | ||
| BOLT,SMALL UPSET | 3 | 115G0835 | 1 | ||
| SHAFT,L=90 | 4 | 13107-4008 | 1 | ||
| LEVER-ARM-TENSIONER S | 5 | 13168-5002 | 1 | ||
| BOLT-UPSET 6X14 | 6 | 112B0614 | 2 | ||
| WASHER SPRING 6MM | 7 | 461F0600 | 2 | ||
| BOLT-SMALL-UPSET,8X16 | 8 | 115G0816 | 1 | ||
| WASHER SPRING 8MM | 9 | 461F0800 | 1 | ||
| BOLT-SMALL-UPSET,8X18 | 10 | 115G0818 | 2 | ||
| WASHER SPRING 8MM | 11 | 461F0800 | 2 | ||
| LEVER-ARM-TENSIONER S | 12 | 13168-5002 | 1 | ||
| WASHER PLAIN 8MM | 13 | 411B0800 | 2 | ||
| WASHER PLAIN 10MM | 14 | 411B1000 | 2 | ||
| WASHER PLAIN 12MM | 15 | 411B1200 | 1 | ||
| ROD,CHAIN TENSIONER | 16 | 46102-4001 | 1 | ||
| PIN,COTTER | 17 | 550D3230 | 1 | ||
| PIN,SNAP,12M/M | 18 | 554A1200 | 1 | ||
| BOLT,HEX HEAD,8X45 | 19 | 92001-4008 | 1 | ||
| NUT,LOCK,8MM | 20 | 92015-1124 | 1 | ||
| NUT,BRAKE ROD ADJUSTG | 21 | 92015-4008 | 1 | ||
| PIN,12X22 | 22 | 92043-4004 | 1 | ||
| PIN,18X33 | 23 | 92043-4005 | 1 | ||
| SPRING,14X20 | 24 | 92081-1287 | 1 | ||
| ROLLER,CHAIN ADJUST | 25 | 92122-4004 | 1 | ||
| SPACER,CHN GDE ROLLER | 26 | 92027-4007 | 1 | ||
| BEARING,BALL | 27 | 92045-1009 | 2 | ||
| LEVER-ARM-TENSIONER S | 28 | 13168-5002 | 1 | LATE KLT250-A1 | |
| GUIDE-CHAIN | 29 | 12053-4002 | 2 | LATE KLT250-A1 | |
| BOLT-UPSET | 30 | 112G0645 | 1 | LATE KLT250-A1 | |
| NUT | 31 | 92019-008 | 1 | LATE KLT250-A1 |
