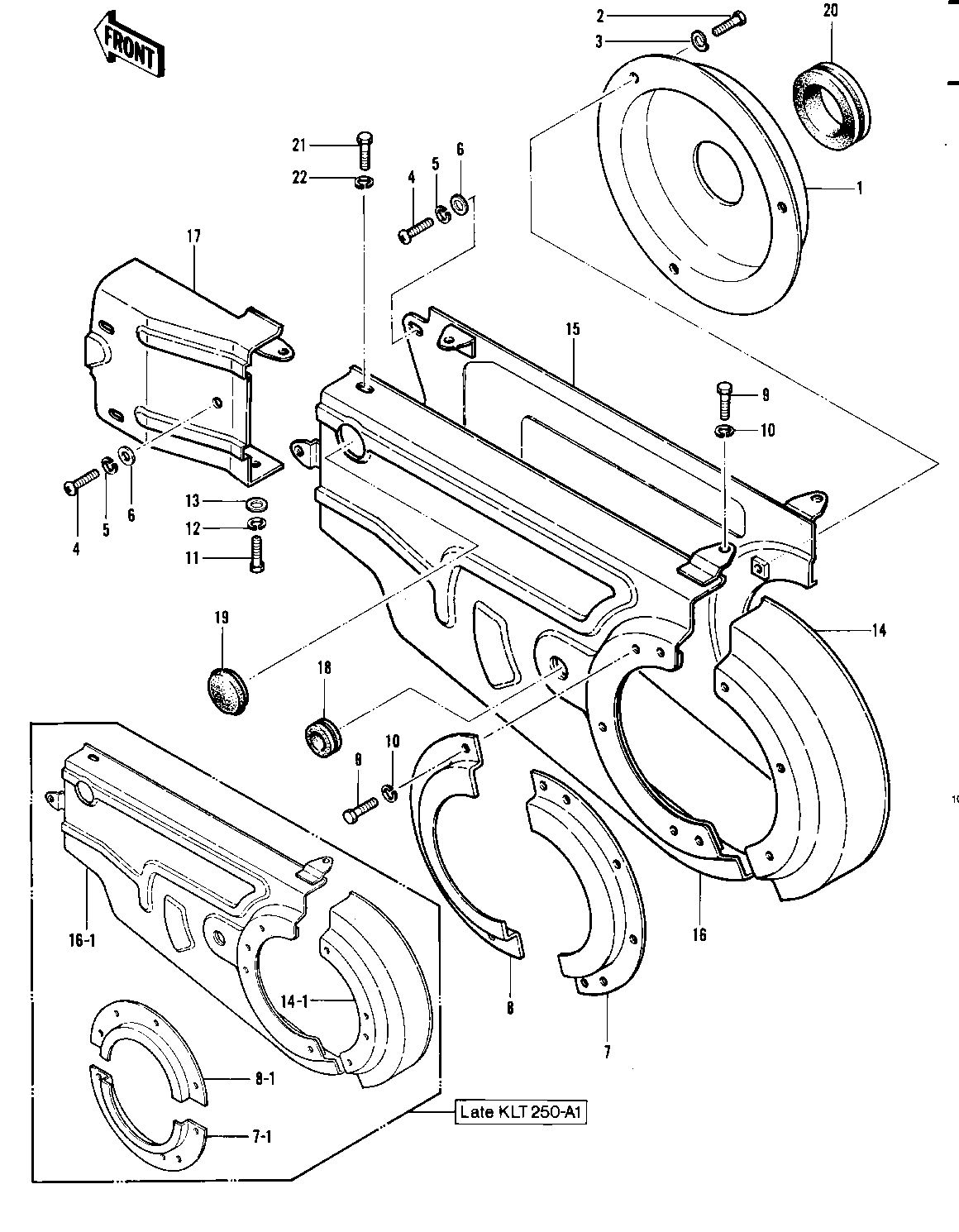

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,CHAIN CASE | 1 | 14025-4018 | 1 | ||
| BOLT-UPSET,6X12 | 2 | 112G0612 | 3 | ||
| WASHER SPRING 6MM | 3 | 461F0600 | 3 | ||
| SCREW PAN HEAD 6X12 | 4 | 220B0612 | 5 | ||
| WASHER SPRING 6MM | 5 | 461F0600 | 5 | ||
| WASHER PLAIN 6MM | 6 | 410B0600 | 5 | ||
| BRKT,CHAIN CASE,RR | 7 | 11034-4055 | 1 | -F/NO. 503404 | |
| BRACKET,SMALL | 7-1 | 11036-1455 | 1 | F/NO. 503405- | |
| BRKT,CHAIN CASE,FR | 8 | 11034-4065 | 1 | -F/NO. 503404 | |
| BRACKET,LARGE | 8-1 | 11036-1454 | 1 | F/NO. 503405- | |
| BOLT-UPSET,6X12 | 9 | 112G0612 | 11 | ||
| WASHER SPRING 6MM | 10 | 461F0600 | 11 | ||
| BOLT-UPSET,6X12 | 11 | 112G0612 | 1 | ||
| WASHER SPRING 6MM | 12 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 13 | 410B0600 | 1 | ||
| CASE-CHAIN,RR | 14 | 36014-1059 | 1 | -F/NO. 503404 | |
| CASE-CHAIN,RR | 14-1 | 36014-1059 | 1 | F/NO. 503405- | |
| CASE-CHAIN,INNER | 15 | 36014-1041 | 1 | ||
| CASE-CHAIN,SET | 16 | 36014-5002 | 1 | -F/NO. 503404 | |
| CASE-CHAIN,FR | 16-1 | 36014-1060 | 1 | F/NO. 503405- | |
| CASE-CHAIN,FR | 17 | 36014-1049 | 1 | ||
| GROMMET HARNESS 22MM | 18 | 92071-012 | 1 | ||
| PLUG CHAIN CASE | 19 | 92074-004 | 1 | ||
| SEAL | 20 | 92093-4005 | 1 | ||
| BOLT-UPSET,6X16 | 21 | 112G0616 | 1 | ||
| WASHER SPRING 6MM | 22 | 461F0600 | 1 |
