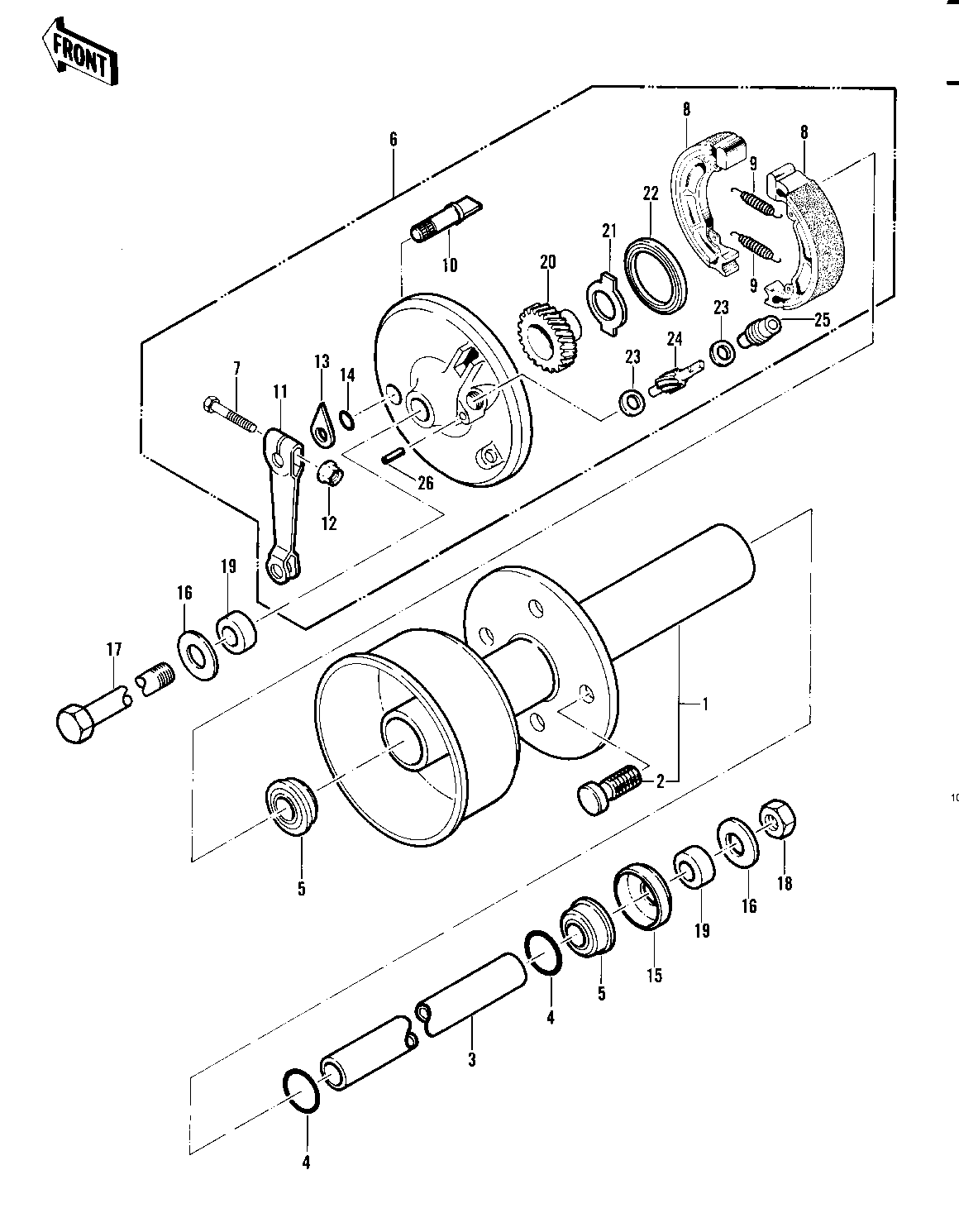

1982 KLT250 - FRONT HUB/BRAKE ('82 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| DRUM ASSY,FRONT | 1 | 41038-4007 | 1 | ||
| BOLT,LUG | 2 | 92001-4006 | 4 | ||
| PIPE,SPACER | 3 | 32032-4109 | 1 | ||
| "0" RING | 4 | 92055-4001 | 2 | ||
| BEARING BALL HUB-ASSY | 5 | 92045-4005 | 2 | ||
| PANEL-ASSY-BRAKE,FR | 6 | 41035-1165 | 1 | ||
| BOLT-UPSET | 7 | 112G0630 | 1 | ||
| SHOE-BRAKE | 8 | 41048-1085 | 2 | ||
| SPRING,BRAKE SHOE | 9 | 92081-1766 | 2 | ||
| CAM SHAFT-FRONT BRAKE | 10 | 41050-018 | 1 | ||
| LEVER FRONT BRAKE CAM | 11 | 41053-005 | 1 | ||
| NUT,6MM | 12 | 41072-007 | 1 | ||
| INDICATOR,FR BK SHOE | 13 | 41085-013 | 1 | ||
| "0" RING,11MM | 14 | 92055-004 | 1 | ||
| CAP | 15 | 14022-4002 | 1 | ||
| WASHER PLAIN 16MM | 16 | 410B1600 | 2 | ||
| AXLE,FRONT | 17 | 41068-4003 | 1 | ||
| NUT,LOCK 14M/M | 18 | 92015-1122 | 1 | ||
| COLLAR | 19 | 92027-4009 | 2 | ||
| GEAR-METER SCREW | 20 | 41060-4001 | 1 | ||
| RECEIVER-SPEEDOMETER | 21 | 41064-4001 | 1 | ||
| OIL SEAL BRAKE PANEL | 22 | 92050-002 | 1 | ||
| WASHER THRST SPD PINI | 23 | 41063-001 | 2 | ||
| PINION-SPEEDOMETER | 24 | 41060-014 | 1 | ||
| BUSH,SPEEDMETER CABLE | 25 | 41062-005 | 1 | ||
| PIN,SPRING | 26 | 41082-001 | 1 |
