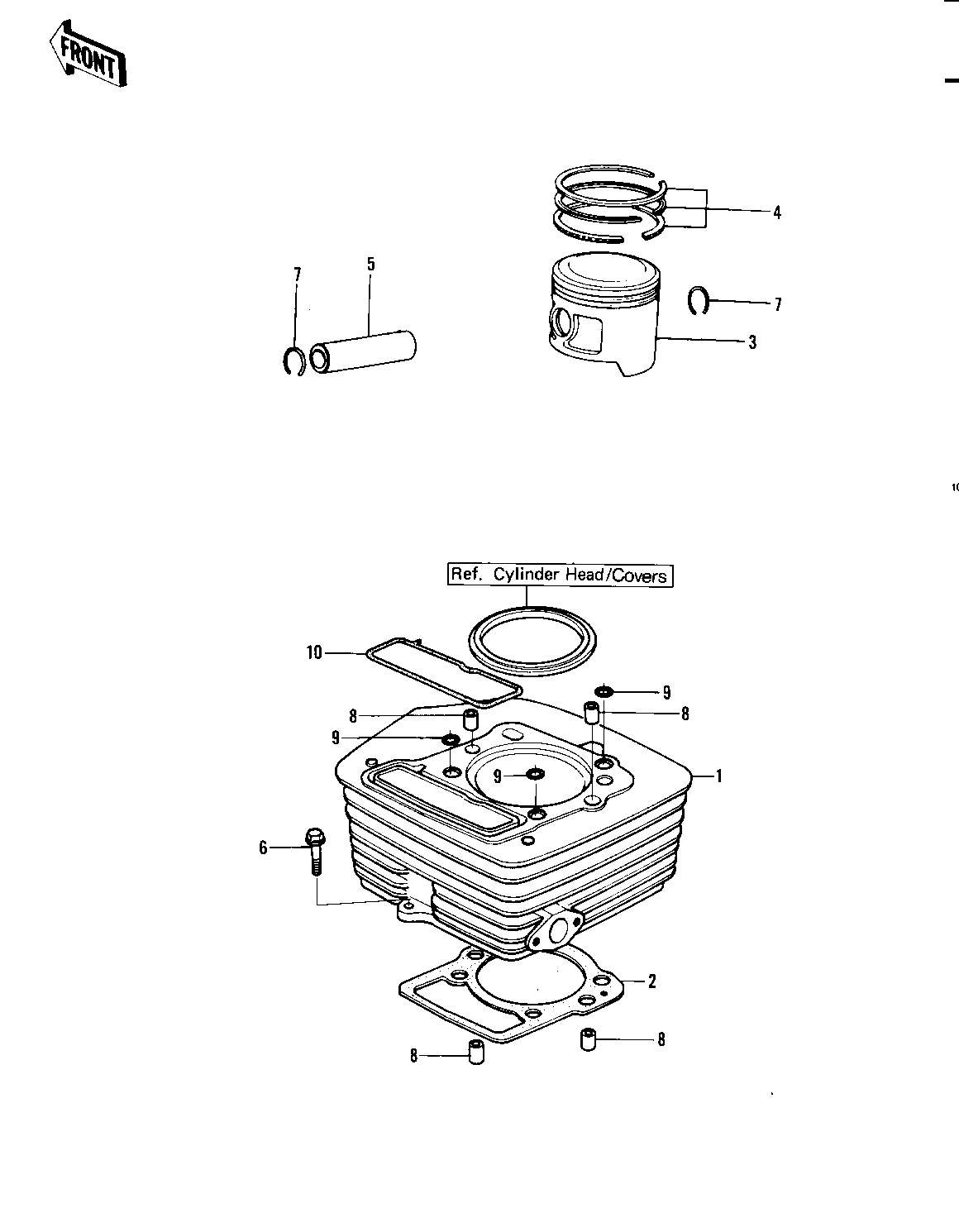

1982 KLT250 - CYLINDER/PISTON ('82 A1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER ASSY,F.BLACK | 1 | 11006-1002 | 1 | ||
| GASKET,CYLINDER BASE | 2 | 11009-043 | 1 | ||
| PISTON,S.T.D | 3 | 13001-1037 | 1 | ||
| PISTON,0.020 O/S | 3 | 13029-1003 | (1 | ||
| PISTON,0.040 O/S | 3 | 13027-1005 | (1 | ||
| RING SET,STD | 4 | 13008-5012 | 1 | ||
| RING SET,0.020"O/S | 4 | 13025-5007 | (1 | ||
| RING SET,0.040"O/S | 4 | 13024-5008 | (1 | ||
| PIN-PISTON | 5 | 13002-1013 | 1 | ||
| BOLT | 6 | 92003-202 | 1 | ||
| CIRCLIP,PISTON PIN | 7 | 92036-021 | 2 | ||
| PIN,DOWEL,10X8.2X14 | 8 | 92043-1037 | 4 | ||
| RING-O,10MM | 9 | 92055-1149 | 3 | ||
| "0" RING | 10 | 92055-105 | 1 |
