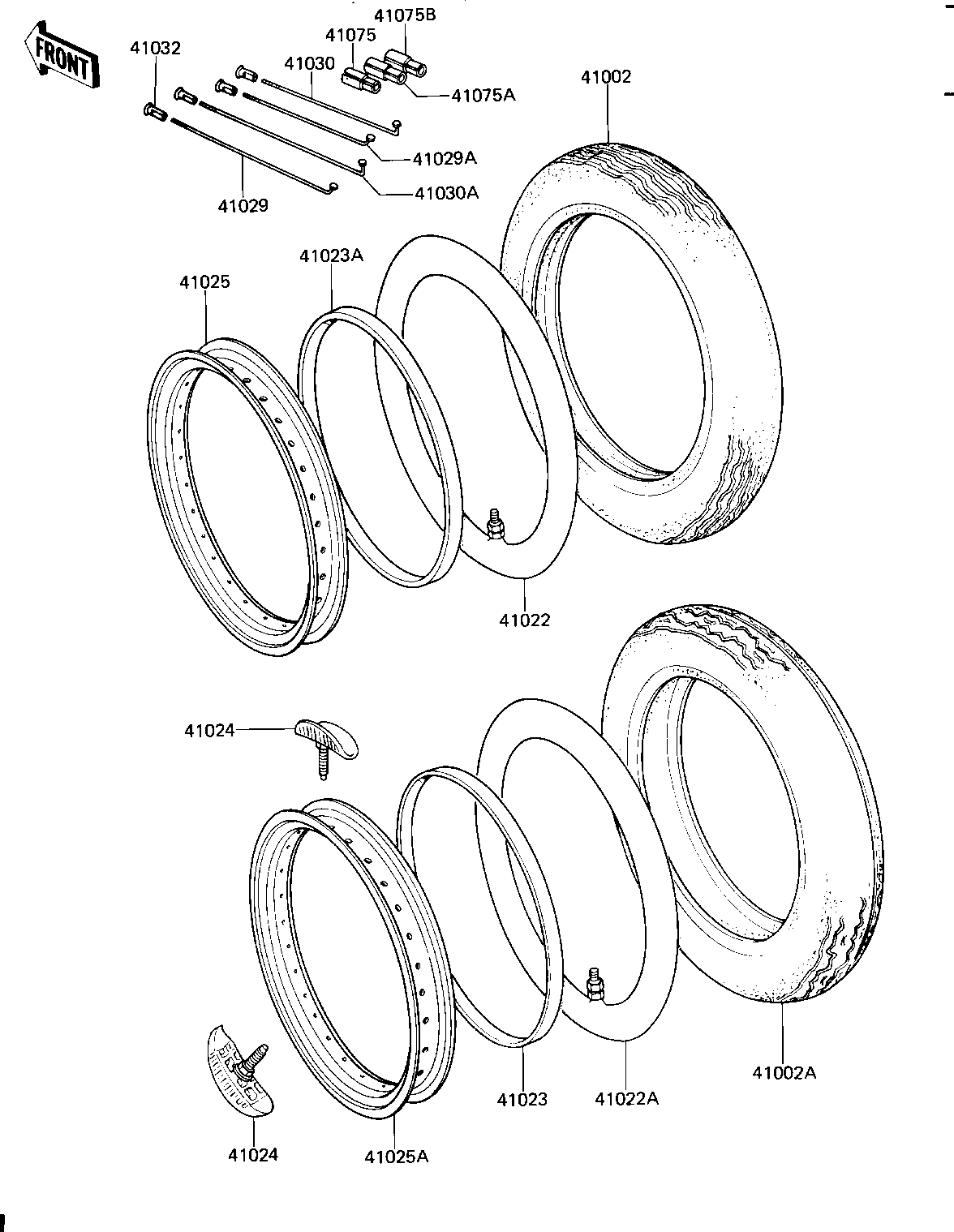

1982 CSR - WHEELS/TIRES ('81-'82 H1/H2)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| TIRE 325H-19 L303A F | 41002 | 41002-1238 | 1 | ||
| TIRE 130/90-16S716A R | 41002A | 41002-1239 | 1 | ||
| TUBE,3.0/3.25/3.60-19 | 41022 | 41022-1019 | 1 | ||
| TUBE 130/90-16 | 41022A | 41022-1017 | 1 | ||
| BAND-RIM | 41023 | 41023-1018 | 1 | ||
| BAND-RIM,X-19(BS) | 41023A | 41023-1026 | 1 | ||
| STOPPER-RIM,3.00(DUNL | 41024 | 41024-1004 | 2 | ||
| RIM,FR,1.85X19 | 41025 | 41025-1029 | 1 | ||
| RIM,RR,3.00X16 | 41025A | 41025-1030 | 1 | ||
| SPOKE-INNER,FR,175MMX | 41029 | 41029-1045 | 24 | ||
| SPOKE-INNER,RR,77MMX1 | 41029A | 41029-1046 | 24 | ||
| SPOKE-OUTER,RR,75MMX6 | 41030 | 41030-1040 | 24 | ||
| SPOKE-OUTER,FR,175MMX | 41030A | 41030-1041 | 24 | ||
| NIPPLE-SPOKE | 41032 | 41032-1005 | 96 | ||
| WEIGHT,BALANCE,10G | 41075 | 41075-1007 | AR | ||
| WEIGHT,BALANCE,20G | 41075A | 41075-1008 | AR | ||
| WEIGHT,BALANCE,30G | 41075B | 41075-1009 | AR |
