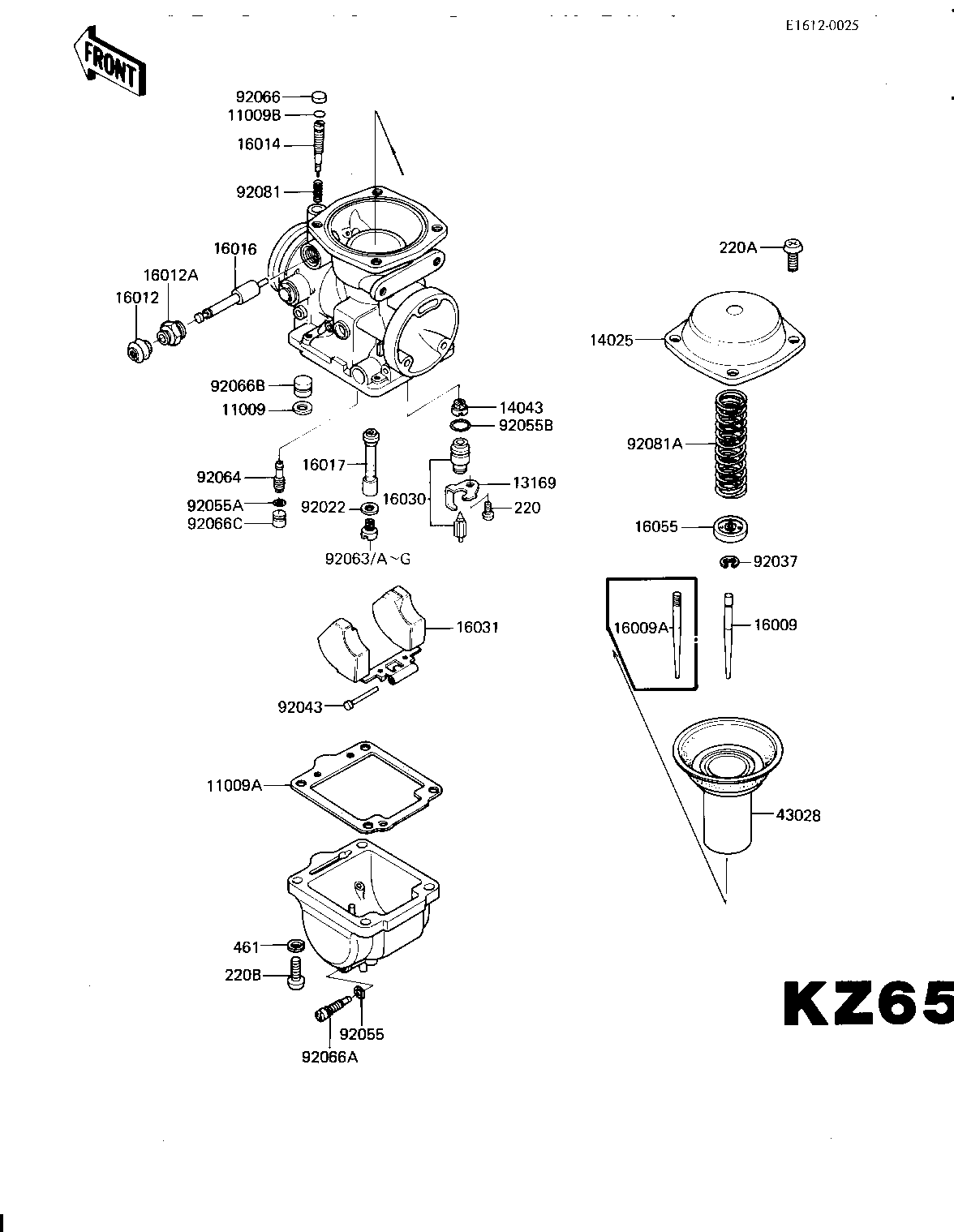

1982 CSR - CARBURETOR PARTS (KZ650-H2)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CARB. PLUG 11009 11009-1240 4
GASKET,FLOAT CHAMBER 11009A 11009-1241 4
"O" RING 11009B 16038-022 4
PLATE 13169 13169-1482 4
COVER 14025 14025-1395 4
FILTER,FLOAT VALVE 14043 14043-1010 4
NEEDLE-JET,4D30 16009 16009-1098 4 US
NEEDLE-JET,4D31 (Canada) 16009A 16009-1099 4 CN
CAP-STARTER PLUNGER 16012 16012-1010 4
CAP-STARTER PLUNGER 16012A 16012-1011 4
SCREW-PILOT AIR 16014 16014-1014 4
PLUNGER 16016 16016-1019 4
JET-NEEDLE,Y-7 16017 16017-1097 4
VALVE-FLOAT,2.3 16030 16030-1018 4
FLOAT 16031 16031-1013 4
PLATE,NEEDLE 16055 16055-010 4
DIAPHRAGM,VALVE 43028 43028-1027 4
WASHER MAIN JET 92022 16034-001 4
CIRCLIP 92037 16008-014 4
PIN,FLOAT 92043 16032-008 4
"0" RING 92055 92055-044 4
"O" RING,CHECK VALVE 92055A 92055-1059 4
"0" RING 92055B 92055-1105 4
JET-MAIN NO 115R 92063 92063-076 4 CN
MAIN JET,#A102.5 92063A 92063-1028 4 US
MAIN JET,#110R 92063B 92063-1038 4 CN
MAIN JET,#110R 92063C 92063-1038 4 US
JET-MAIN,#A107.5R 92063D 92063-1041 4 US
JET-MAIN,#A107.5R 92063E 92063-1041 4 CN
MAIN JET,#A105R 92063F 92063-1042 4 (RACING USE ONLY)
JET-MAIN,#A112.5 92063G 92063-1110 4 (RACING USE ONLY)
JET-PILOT,#A37.5 92064 92064-1036 4
PLUG,PILOT SCREW 92066 92066-1051 4 US
SCREW,DRAIN 92066A 92066-1064 4
PLUG,CARBURETOR 92066B 92066-1086 4
PLUG,PILOT JET 92066C 92066-1087 4
SPRING,PILOT SCREW 92081 16022-016 4
SPRING,DIAPHRAGM VALV 92081A 92081-1415 4
SCREW PAN HEAD 4X6 220 220B0406 4
SCREW PAN HEAD 5X8 220A 220B0508 14
UNAVAILABLE IN PRICE BOOK 220B 214B0516A 16
WASHER SPRING 5MM 461 461F0500 16
