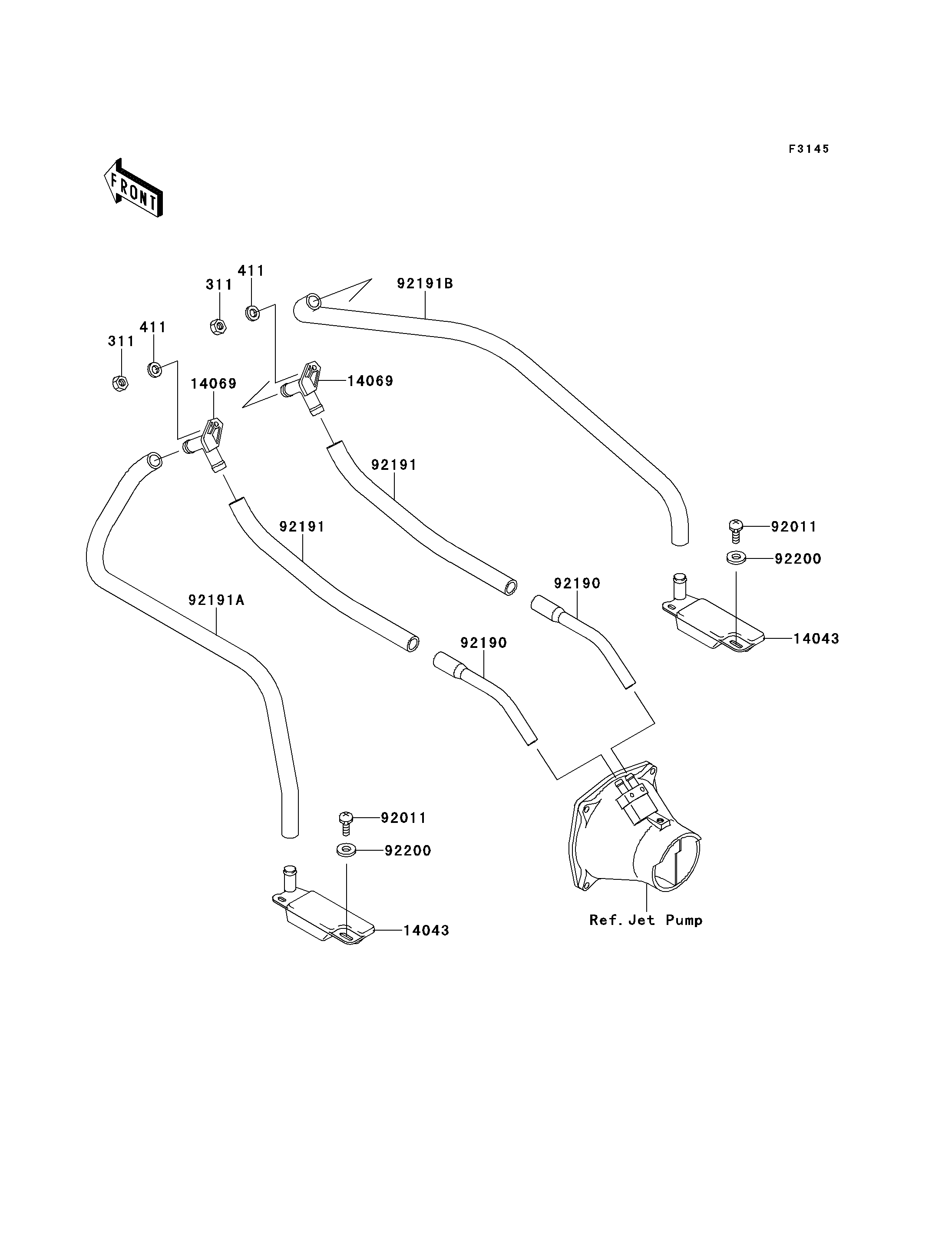

1997 1100 STX - Bilge System

DOWNLOAD PDF
SELECT A NEW PART
311
311
411
411
14043
14043
14069
14069
92011
92011
92190
92190
92191
92191
92191A
92191B
92200
92200
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-HEX,6MM 311 311R0600 2
WASHER-PLAIN,6MM 411 411S0600 2
FILTER 14043 14043-3708 2
BREATHER 14069 14069-3708 2
SCREW,TAPPING 92011 92011-561 4
TUBE,HULL-NOZZLE 92190 92190-3971 2
TUBE,BREATHER-HULL 92191 92191-3740 2
TUBE,FILTER-BREATHER,LH 92191A 92191-3741 1
TUBE,FILTER-BREATHER,RH 92191B 92191-3771 1
WASHER,5.9X16X1.5 92200 92200-3714 4
