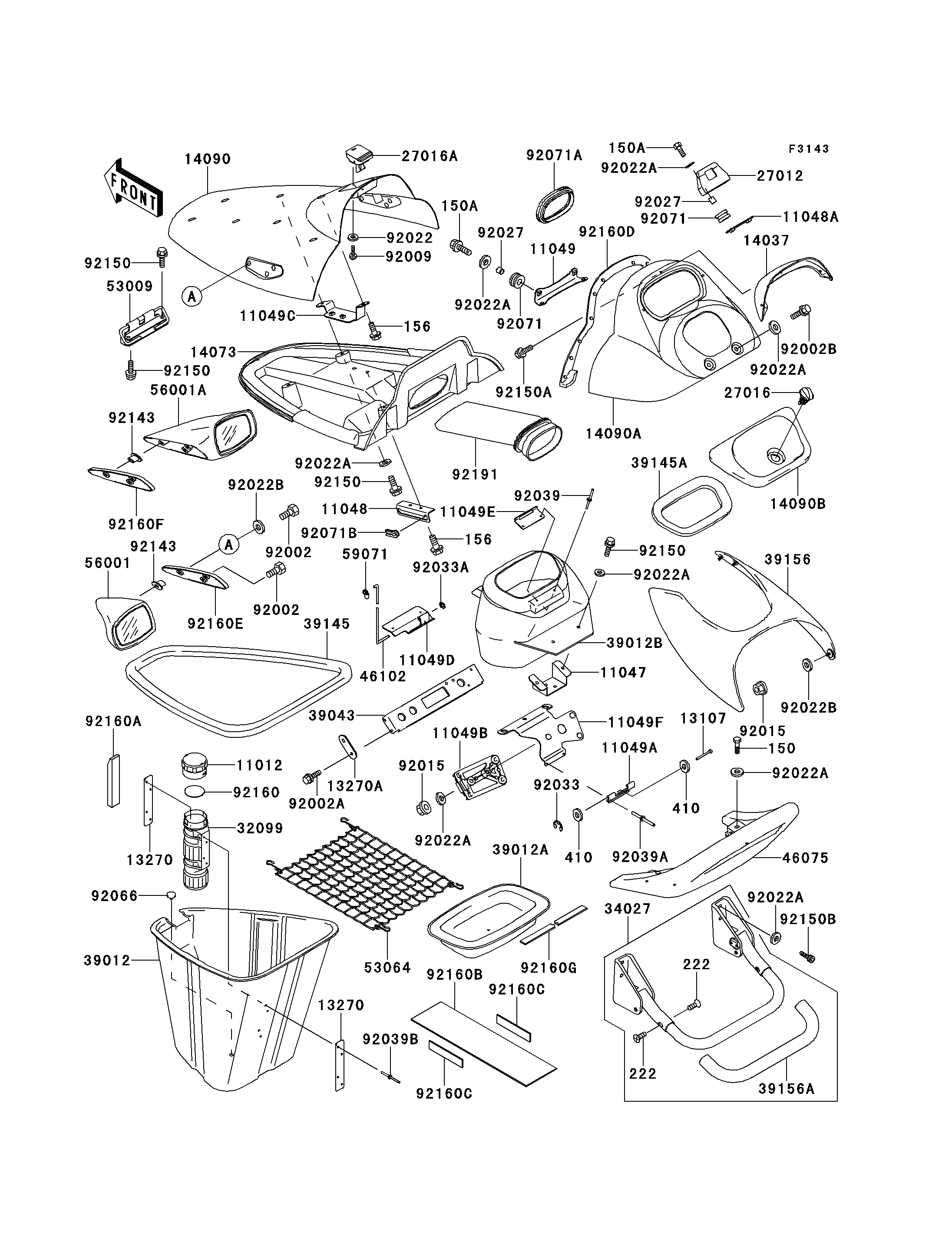

1997 1100 STX - Hull Fittings

DOWNLOAD PDF
SELECT A NEW PART
11012
11012
11047
11047
11048
11048
11048A
11048A
11049
11049
11049A
11049A
11049B
11049B
11049C
11049C
11049D
11049D
11049E
11049E
11049F
11049F
13107
13107
13270
13270
13270
13270
13270A
13270A
14037
14037
14073
14073
14090
14090
14090A
14090A
14090B
14090B
27012
27012
27016
27016
27016A
27016A
32099
32099
34027
34027
39012
39012
39012A
39012A
39012B
39012B
39043
39043
39145
39145
39145A
39145A
39156
39156
39156A
39156A
46075
46075
46102
46102
53009
53009
53064
53064
56001
56001
56001A
56001A
59071
59071
150
150
150A
150A
150A
150A
156
156
156
156
222
222
222
222
410
410
410
410
92002
92002
92002
92002
92002A
92002A
92002B
92002B
92009
92009
92015
92015
92015
92015
92022
92022
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022A
92022B
92022B
92022B
92022B
92027
92027
92027
92027
92033
92033
92033A
92033A
92039
92039
92039A
92039A
92039B
92039B
92066
92066
92071
92071
92071
92071
92071A
92071A
92071B
92071B
92143
92143
92143
92143
92150
92150
92150
92150
92150
92150
92150
92150
92150A
92150A
92150B
92150B
92160
92160
92160A
92160A
92160B
92160B
92160C
92160C
92160C
92160C
92160D
92160D
92160E
92160E
92160F
92160F
92160G
92160G
92191
92191
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,FIRE EXTINGUISHER 11012 11012-3766 1
BRACKET,FUEL FILTER 11047 11047-3761 1
BRACKET,HATCH COVER 11048 11048-3777 1
BRACKET,HATCH COVER LOCK 11048A 11048-3778 1
BRACKET,HANDLE COVER 11049 11049-3716 1
BRACKET 11049A 11049-3717 1
BRACKET 11049B 11049-3718 1
BRACKET,HATCH COVER 11049C 11049-3736 1
BRACKET,HATCH COVER 11049D 11049-3737 1
BRACKET,CENTER STORAGE 11049E 11049-3739 1
BRACKET 11049F 11049-3743 1
SHAFT,3X32 13107 13107-3745 2
PLATE,FIRE EXTINGUISHER 13270 13270-3729 2
PLATE 13270A 13270-3835 2
SCREEN,F.BLACK 14037 14037-3707-6Z 1
DUCT,FR 14073 14073-3758 1
COVER,HATCH,P.C.GRAY 14090 14090-3769-VK 1
COVER,HANDLE,P.C.GRAY 14090A 14090-3770-VK 1
COVER,CENTER STORAGE,P.C.GRAY 14090B 14090-3771-VK 1
HOOK,HATCH COVER LOCK 27012 27012-3803 1
LOCK-ASSY 27016 27016-3733 1
LOCK-ASSY,HATCH COVER 27016A 27016-3737 1
CASE,FIRE EXTINGUISHER 32099 32099-3769 1
STEP-ASSY 34027 34027-3703 1
CASE-STORAGE,FR 39012 39012-3715 1
CASE-STORAGE 39012A 39012-3716 1
CASE-STORAGE,CNT 39012B 39012-3717 1
CROSSMEMBER-COMP 39043 39043-3701 1
TRIM-SEAL,L=1380 39145 39145-3746 1
TRIM-SEAL 39145A 39145-3751 1
PAD,KNEE,GRAY 39156 39156-3791-PS 1
PAD,STEP 39156A 39156-3798 1
GRIP,TAIL,F.RED 46075 46075-3745-6L 1
ROD,HATCH COVER STOPPER 46102 46102-3725 1
HINGE,HATCH COVER 53009 53009-3723 1
NET-CARGO 53064 53064-3701 1
MIRROR-ASSY,LH,F.BLACK 56001 56001-3709-6Z 1
MIRROR-ASSY,RH,F.BLACK 56001A 56001-3710-6Z 1
JOINT 59071 59071-3743 1
BOLT-WS,6X22 150 150R0622 4
BOLT-WS,6X25 150A 150R0625 4
BOLT-WP,6X12 156 156R0612 3
SCREW-CSK-RD-CROS 222 222R0612 4
W-PLAIN-S,3MM 410 410S0300 4
BOLT,6X40 92002 92002-3716 6
BOLT,6X20 92002A 92002-3755 4
BOLT,6X12 92002B 92002-3763 2
SCREW,5X16 92009 92009-3789 2
NUT,6MM 92015 92015-3767 10
WASHER,5X16X1.5 92022 92022-3041 2
WASHER,6.5X20X1.5 92022A 92022-3710 21
WASHER,6.2X20X2 92022B 92022-3714 9
COLLAR,6.2X10X10 92027 92027-3705 4
RING-SNAP,2MM 92033 92033-3711 2
RING-SNAP,E-TYPE,4MM 92033A 92033-3722 1
RIVET 92039 92039-3712 2
RIVET 92039A 92039-3748 2
RIVET 92039B 92039-3755 4
PLUG 92066 92066-3752 2
GROMMET 92071 92071-3716 4
GROMMET 92071A 92071-3812 1
GROMMET 92071B 92071-3816 1
COLLAR 92143 92143-3763 6
BOLT,6X18 92150 92150-3729 8
BOLT,5X12 92150A 92150-3760 3
BOLT,SOCKET,6X18 92150B 92150-3775 4
DAMPER 92160 92160-3814 1
DAMPER 92160A 92160-3821 1
DAMPER,WATER MUFFLER 92160B 92160-3839 1
DAMPER 92160C 92160-3840 2
DAMPER,HATCH COVER 92160D 92160-3867 1
DAMPER,MIRROR,LH,F.BLACK 92160E 92160-3869-6Z 1
DAMPER,MIRROR,RH,F.BLACK 92160F 92160-3870-6Z 1
DAMPER 92160G 92160-3878 1
TUBE 92191 92191-3742 1
