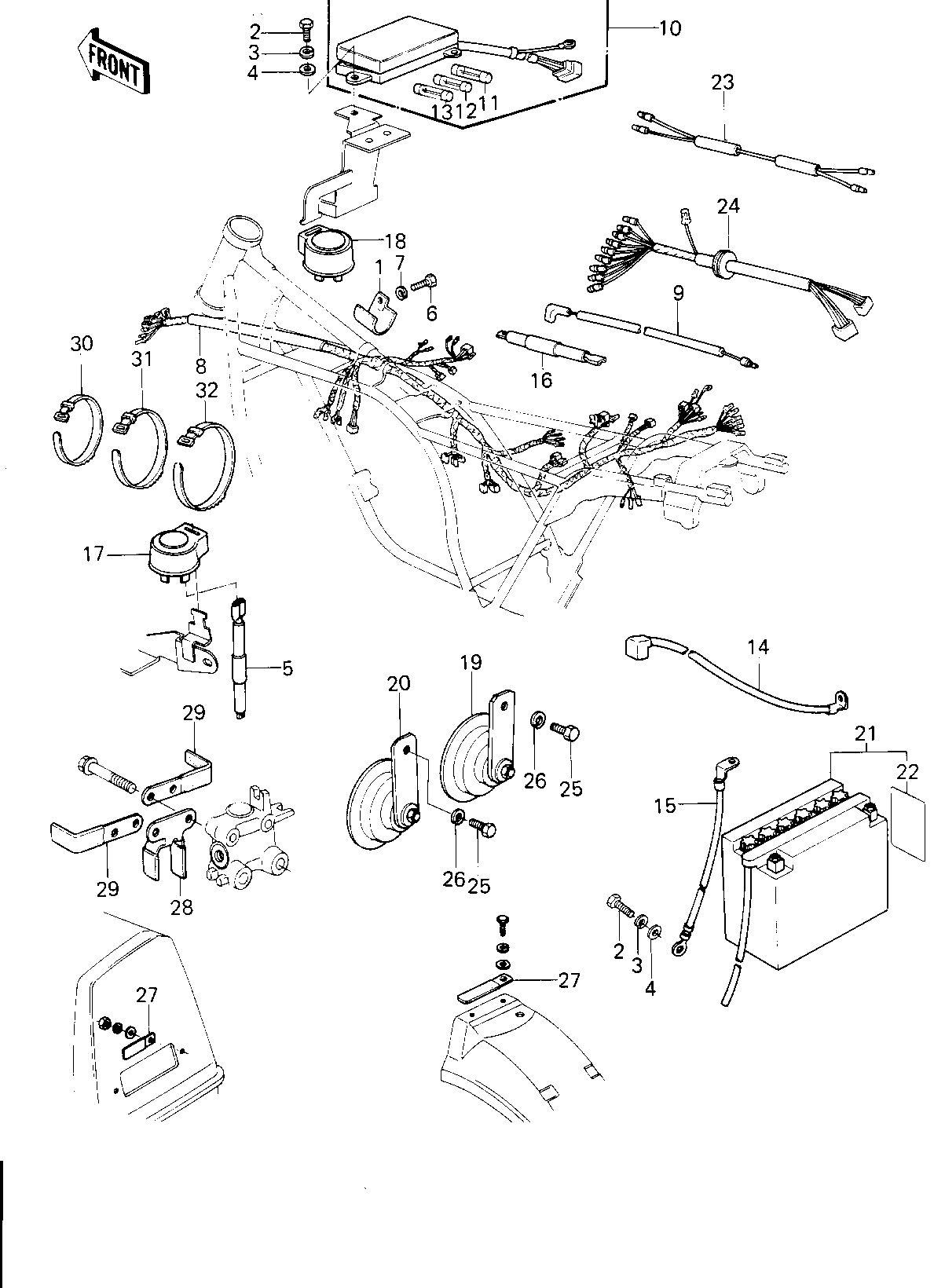

1980 KZ1300-B2 - CHASSIS ELECTRICAL EQUIPMENT

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE,MAIN HARNESS 1 13070-1022 1
BOLT-UPSET,6X12 2 112G0612 3
WASHER SPRING 6MM 3 461F0600 3
WASHER PLAIN 6MM 4 411B0600 3
REGULATOR 5 21066-026 1
BOLT,6X10 6 112G0610 1
WASHER SPRING 6MM 7 461F0600 1
WIRING HARNESS,MAIN 8 26001-1172 1
WIRING HARNESS,MAIN 8 26001-1172 1 F/NO. 001632~
WIRING HARNESS,SUB 9 26001-1064 1
FUSE ASSY 10 26004-1009 1
FUSE,2A,L=25M/M 11 26006-1004 2 L=25M/M
FUSE 10A 12 26006-003 4 L=25M/M
FUSE,30A,L=25M/M 13 26006-1005 2 L=25M/M
WIRE,STARTER LEAD 14 26011-1037 1
WIRE,BATTERY GROUND 15 26011-1038 1
REGULATOR 16 21066-026 1
RELAY-TURN SIGNAL 17 27002-011 1
RELAY,TURN SIGNAL 18 27002-016 1
HORN,R.H 19 27003-1016 1
HORN,L.H 20 27003-1025 1
YUA BAT Y50-N18L-A2 21 26012-1012 1 YUASA
LABEL-WARNING,BATTERY 22 56040-1036 1
WIRING HARNESS,SUB 23 26001-1094 2
WIRING HARNESS,SUB 24 26001-1093 1
BOLT-SMALL-UPSET,8X14 25 115B0814 2
WASHER SPRING 8MM 26 461F0800 2
CLAMP,WIRING HARNESS 27 92037-1069 3
CLAMP,MAIN HARNESS 28 92037-1136 1
CLAMP,MAIN HARNESS 29 92037-1137 2
BAND,SHORT 30 92072-030 5
BAND,MIDDLE 31 92072-031 5
BAND,WIRING HARNESS 32 92072-056 5
