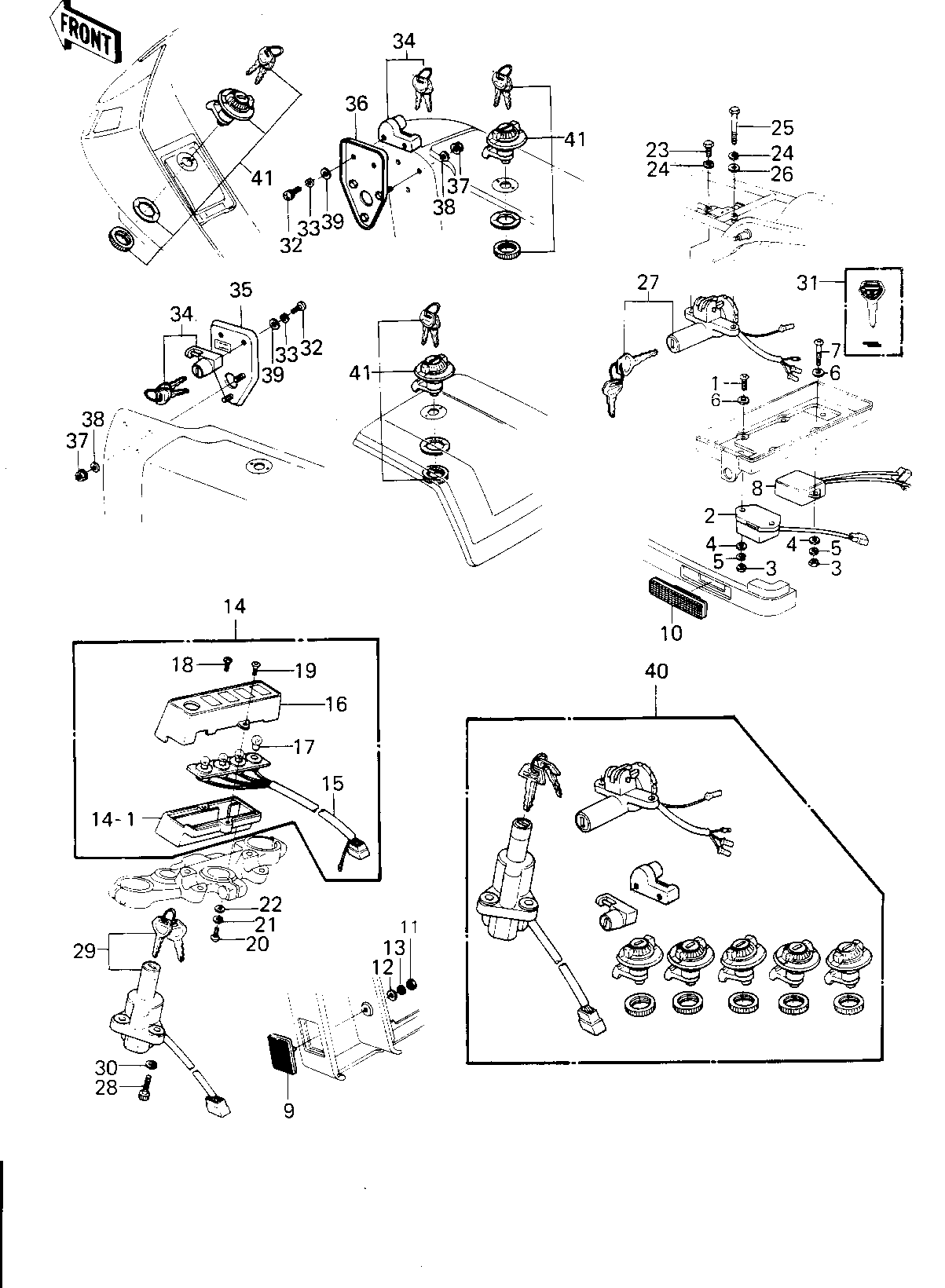

1980 KZ1300-B2 - IGNITION SWITCH/LOCKS/REFLECTORS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SCREW PAN HEAD 6X20 1 220B0620 2
SWITCH,RESERVE LIGHTI 2 27010-1024 1
NUT 6MM 3 311B0600 4
WASHER PLAIN 6MM 4 410B0600 4
WASHER SPRING 6MM 5 461F0600 4
WASHER PLAIN 6 92022-024 4
SCREW PAN HEAD 6X35 7 220B0635 2
SWITCH,TURN SIGNAL OP 8 27010-1016 1
REFLECTOR,REFLEX(FRON 9 28012-1003 2 FRONT
REFLECTOR,REFLEX 10 28012-1006 2 REAR
NUT,5MM 11 311B0500 2
WASHER PLAIN 5MM 12 411B0500 2
WASHER SPRING 6MM 13 461F0600 2
LAMP ASSY,PILOT 14 23016-1014 1
COVER,PILOT LAMP,LOWE 14-1 14025-1117 1
SOCKET ASSY,PILOT LAM 15 23008-1041 1
COVER,PILOT LAMP,UPPE 16 25023-1014 1
BULB 12V 3W 17 92069-018 4
SCREW,TAPPING,3.5X10 18 92009-1073 1
SCREW,CNTSNK HED,4X10 19 92009-1074 1
SCREW, PAN HEAD, 5 X 16 20 220B0516A 2
WASHER SPRING 5MM 21 461F0500 2
WASHER PLAIN 5MM 22 411B0500 2
BOLT-UPSET,6X12 23 112G0612 1
WASHER SPRING 6MM 24 461F0600 2
BOLT-UPSET 25 112G0645 1
WASHER PLAIN 6MM 26 411B0600 1
LOCK ASSY,SEAT 27 27016-5027 1
BOLT,SOCKET,8X22 28 120P0822 2
IGNITION&STEERING ASY 29 27016-5034 1
WASHER SPRING 8MM 30 461F0800 2
KEY-LOCK,BLANK 31 27008-1103 AR
SCREW PAN HEAD 5X12 32 220B0512 4
WASHER SPRING 5MM 33 461F0500 4
LOCK ASSY,HELMET 34 27016-5036 2
BRACKET,HELMET LOCK 35 32074-1013 1
BRACKET,HELMET LOCK 36 32074-1014 1
NUT,LOCK 6MM 37 92017-014 6
WASHER PLAIN 38 92022-024 6
WASHER,PLAIN 39 92022-283 4
SWITCH LOCK ASSY 40 27004-5078 (1 (ATTACHED TWO KEYS ONLY)
LOCK ASSY 41 27016-5035 5
