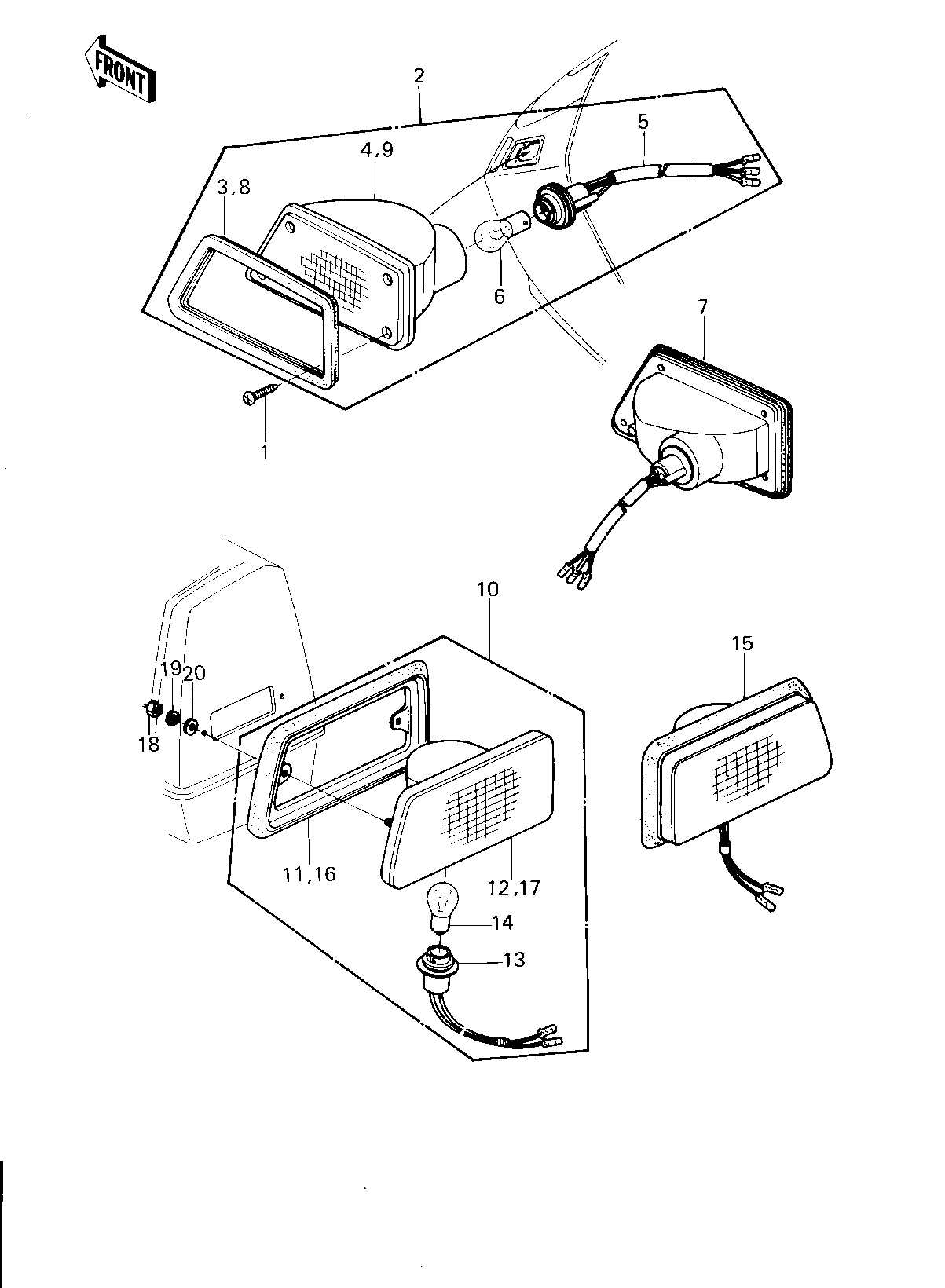

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW-PAN HEAD,4X20 | 1 | 220E0420A | 8 | ||
| LAMP ASSY,TURN SIGNAL | 2 | 23037-1066 | 1 | ||
| GASKET,TURN SIGNAL LP | 3 | 11009-1139 | 1 | ||
| LENS,TURN SIGNAL LAMP | 4 | 23007-1021 | 1 | ||
| SOCKET ASSY,TURN SIGN | 5 | 23008-1045 | 2 | ||
| BULB,12V 23/8W | 6 | 92069-060 | 2 | ||
| LAMP ASSY,TURN SIGNAL | 7 | 23037-1067 | 1 | ||
| GASKET,CLUTCH COVER | 8 | 11009-1996 | 1 | ||
| LENS,TURN SIGNAL LAMP | 9 | 23007-1022 | 1 | ||
| LAMP ASSY,TURN SIGNAL | 10 | 23037-1068 | 1 | ||
| GASKET,TURN SIGNAL LP | 11 | 11009-1141 | 1 | ||
| LENS,TURN SIGNAL LAMP | 12 | 23007-1023 | 1 | ||
| SOCKET ASSY,TURN SIGN | 13 | 23008-1046 | 2 | ||
| BULB 12V 32CP | 14 | 92069-055 | 2 | ||
| LAMP ASSY,TURN SIGNAL | 15 | 23037-1069 | 1 | ||
| GASKET,TURN SIGNAL LP | 16 | 11009-1142 | 1 | ||
| LENS,TURN SIGNAL LAMP | 17 | 23007-1024 | 1 | ||
| NUT 6MM | 18 | 311B0600 | 4 | ||
| WASHER SPRING 6MM | 19 | 461F0600 | 4 | ||
| WASHER PLAIN | 20 | 92022-024 | 4 |
