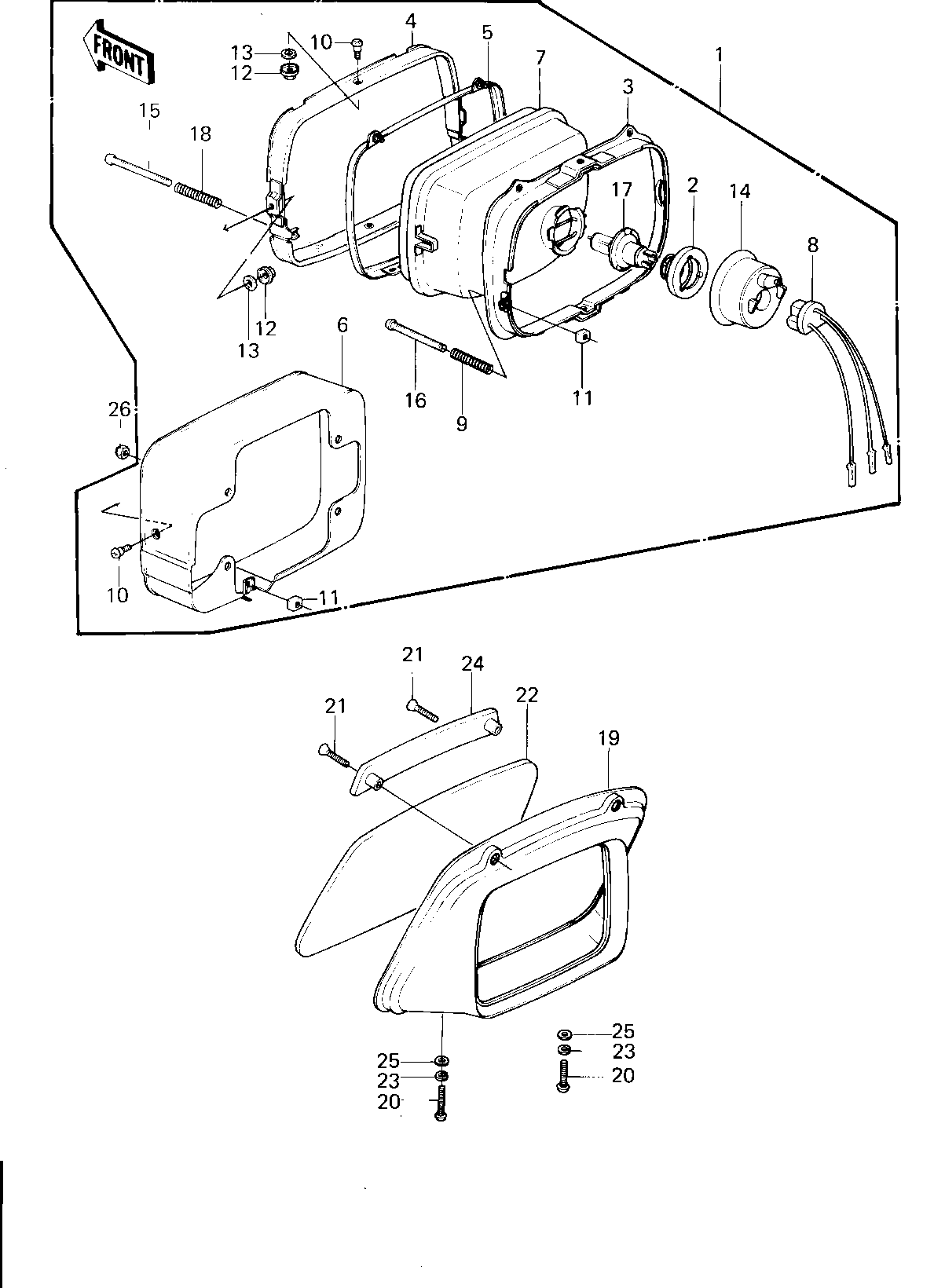

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP ASSY,HEAD | 1 | 23001-1050 | 1 | ||
| HOLDER,HEAD LAMP SOCK | 2 | 13091-1036 | 1 | ||
| HOLDER,MOUNTING RING | 3 | 13091-1054 | 1 | ||
| HOLDER,MOUNTING RING | 4 | 13091-1055 | 1 | ||
| RETAINER,HEAD LAMP | 5 | 14020-1011 | 1 | ||
| BODY,HEAD LAMP | 6 | 23005-1010 | 1 | ||
| LENS UNIT,HEAD LAMP | 7 | 23007-1013 | 1 | ||
| SOCKET ASSY,HEAD LAMP | 8 | 23008-037 | 1 | ||
| SPRING FOCUS ADJUST | 9 | 23014-005 | 1 | ||
| SCREW-PAN HEAD,5X12 | 10 | 23019-023 | 4 | ||
| NUT,4MM | 11 | 23020-018 | 2 | ||
| NUT,HEAD LAMP RIM FIT | 12 | 23020-023 | 4 | ||
| WASHER-PLAIN,5MM | 13 | 23021-012 | 4 | ||
| COVER,HEAD LAMP SOCKE | 14 | 49016-1023 | 1 | ||
| SCREW,HEAD LAMP LENS | 15 | 92009-1047 | 1 | ||
| SCREW,FOCUS ADJUSTING | 16 | 92009-1065 | 1 | ||
| BULB,12V-60/55W | 17 | 92069-1002 | 1 | PHILIPS (H4 12342) | |
| SPRING,HEAD LAMP LENS | 18 | 92081-1103 | 1 | ||
| COVER,HEAD LAMP SEAL | 19 | 14025-1151 | 1 | ||
| SCREW PAN HEAD 6X30 | 20 | 220E0630 | 2 | ||
| SCREW OVL CNTSNK 6X30 | 21 | 222E0630 | 2 | ||
| LENS,HEAD LAMP SEAL | 22 | 23026-1012 | 1 | ||
| WASHER SPRING 6MM | 23 | 461F0600 | 2 | ||
| EMBLEM | 24 | 56014-1034 | 1 | ||
| WASHER PLAIN | 25 | 92022-024 | 2 | ||
| NUT,LOCK 6MM | 26 | 92017-014 | 4 |
