Parts Diagrams |

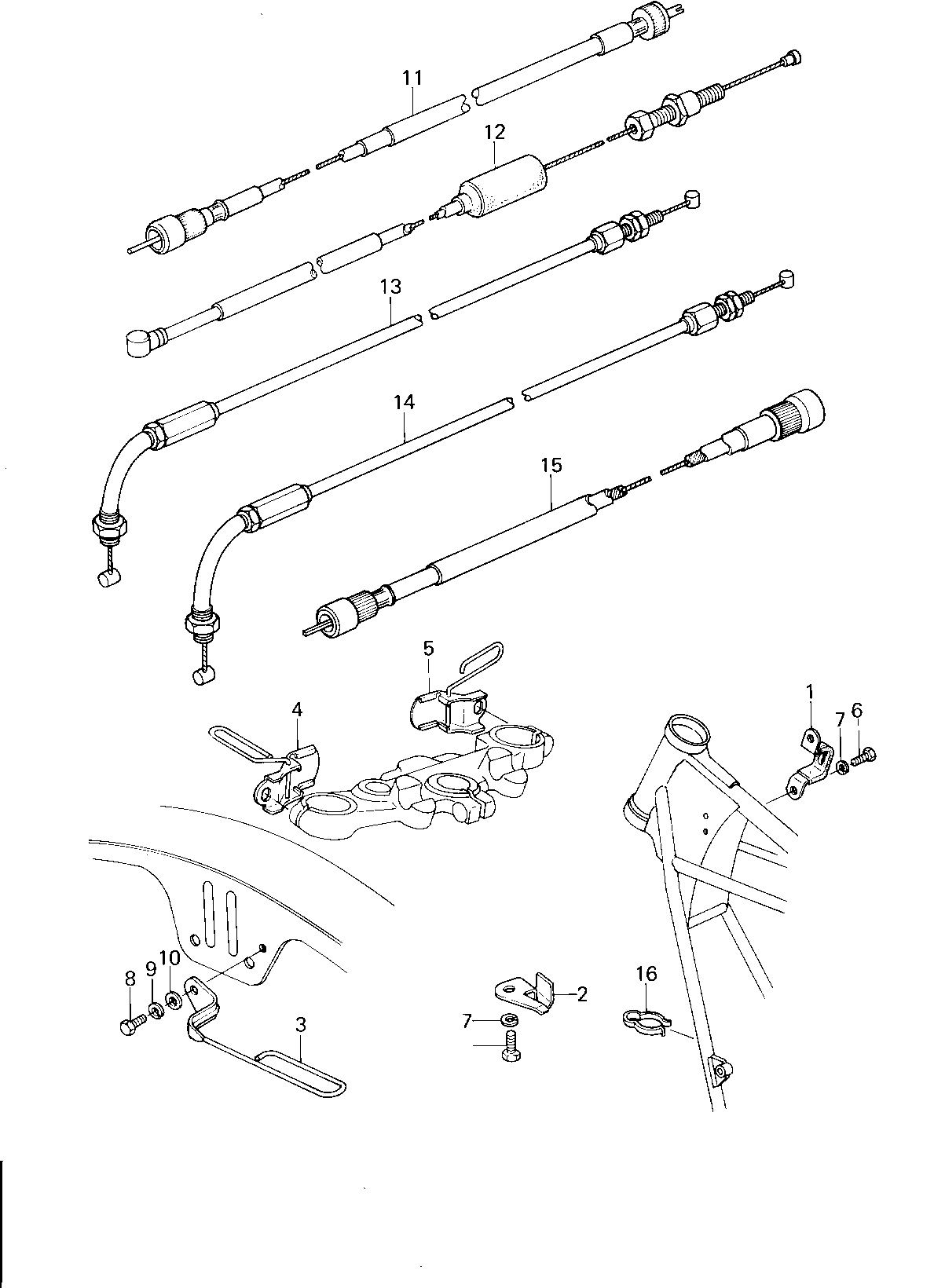

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE,TACHOMETER CABL | 1 | 13070-1012 | 1 | ||
| GUIDE,CLUTCH CABLE | 2 | 13070-1013 | 1 | ||
| GUIDE,SPEEDOMETER | 3 | 13070-1015 | 1 | ||
| GUIDE,CLUTCH CABLE | 4 | 13070-1016 | 1 | ||
| GUIDE,THROTTLE CABLE | 5 | 13070-1017 | 1 | ||
| BOLT-UPSET,6X12 | 6 | 112G0612 | 3 | ||
| WASHER SPRING 6MM | 7 | 461F0600 | 3 | ||
| BOLT-UPSET,6X12 | 8 | 112G0612 | 1 | ||
| WASHER SPRING 6MM | 9 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 10 | 411B0600 | 1 | ||
| CABLE,SPEEDOMETER | 11 | 54001-1013 | 1 | ||
| CABLE,CLUTCH | 12 | 54011-1027 | 1 | ||
| CABLE,THROTTLE | 13 | 54012-1043 | 1 | FOR OPENING | |
| CABLE,THROTTLE | 14 | 54012-1044 | 1 | FOR CLOSING | |
| CABLE,TACHOMETER | 15 | 54018-1005 | 1 | ||
| CLAMP,CABLE | 16 | 92037-093 | 2 |
