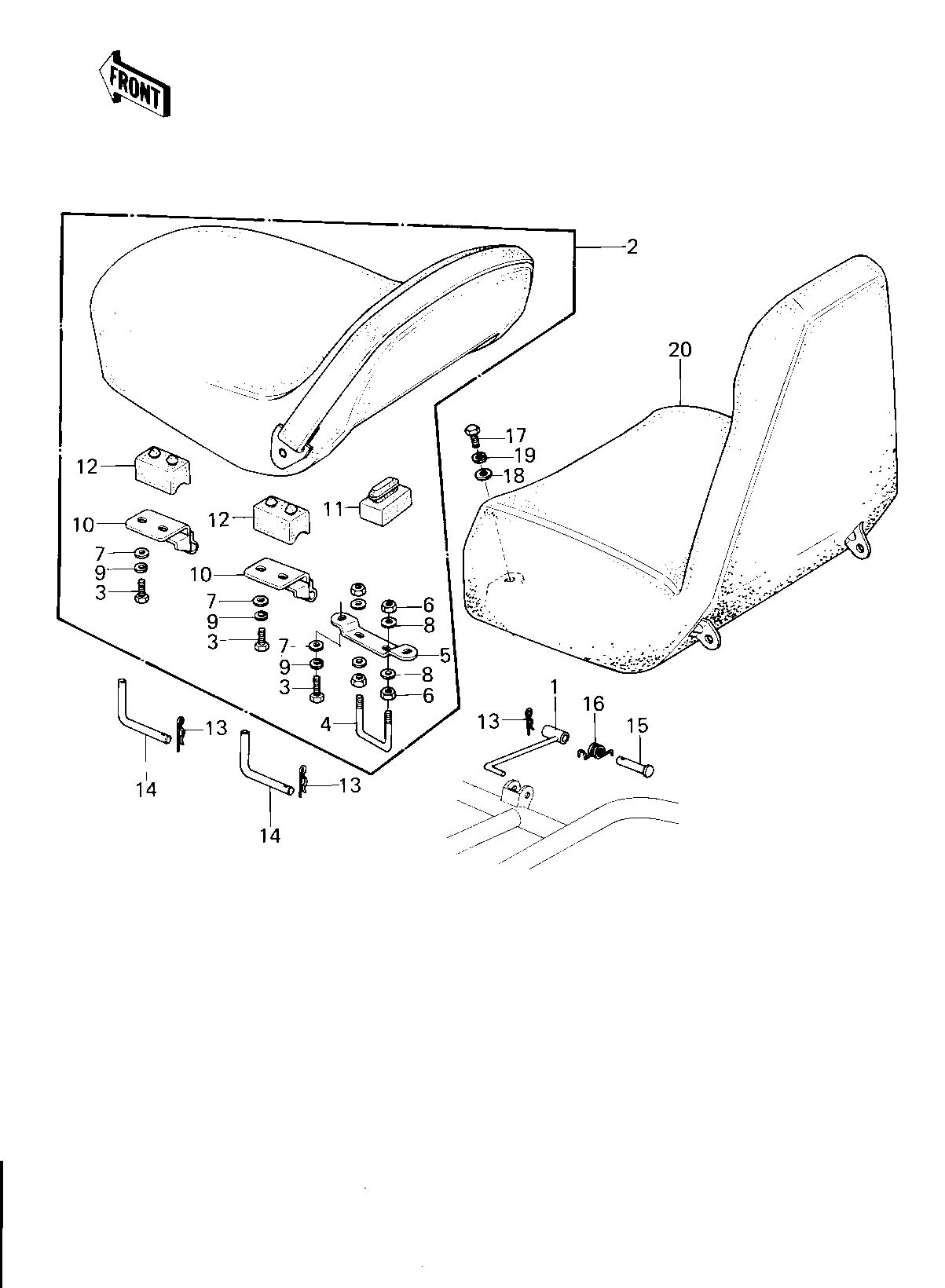

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STAY,SEAT STAND | 1 | 35011-1018 | 1 | ||
| SEAT-ASSY,FRONT | 2 | 53001-1058 | 1 | ||
| BOLT-UPSET 6X14 | 3 | 112B0614 | 6 | ||
| CATCH, SEAT | 4 | 53056-002 | 1 | ||
| BRACKET, SEAT CATCH | 5 | 53058-001 | 1 | ||
| NUT 6MM | 6 | 311B0600 | 4 | ||
| WASHER PLAIN 6MM | 7 | 411B0600 | 6 | ||
| WASHER PLAIN 6MM | 8 | 411B0600 | 4 | ||
| WASHER SPRING 6MM | 9 | 461F0600 | 6 | ||
| HINGE,SEAT | 10 | 53009-1011 | 2 | ||
| DAMPER RUBBER,SEAT | 11 | 92075-216 | 1 | ||
| DAMPER RUBBER,SEAT | 12 | 92075-139 | 2 | ||
| PIN,SNAP | 13 | 554A0600 | 3 | ||
| PIN,SEAT PIVOT | 14 | 92043-1021 | 2 | ||
| PIN,SEAT STAND | 15 | 92043-1045 | 1 | ||
| SPRING,SEAT STAND | 16 | 92081-1100 | 1 | ||
| BOLT-SMALL-UPSET,8X16 | 17 | 115G0816 | 2 | ||
| WASHER PLAIN 8MM | 18 | 410B0800 | 2 | ||
| WASHER SPRING 8MM | 19 | 461F0800 | 2 | ||
| SEAT-ASSY,REAR | 20 | 53001-1059 | 1 |
