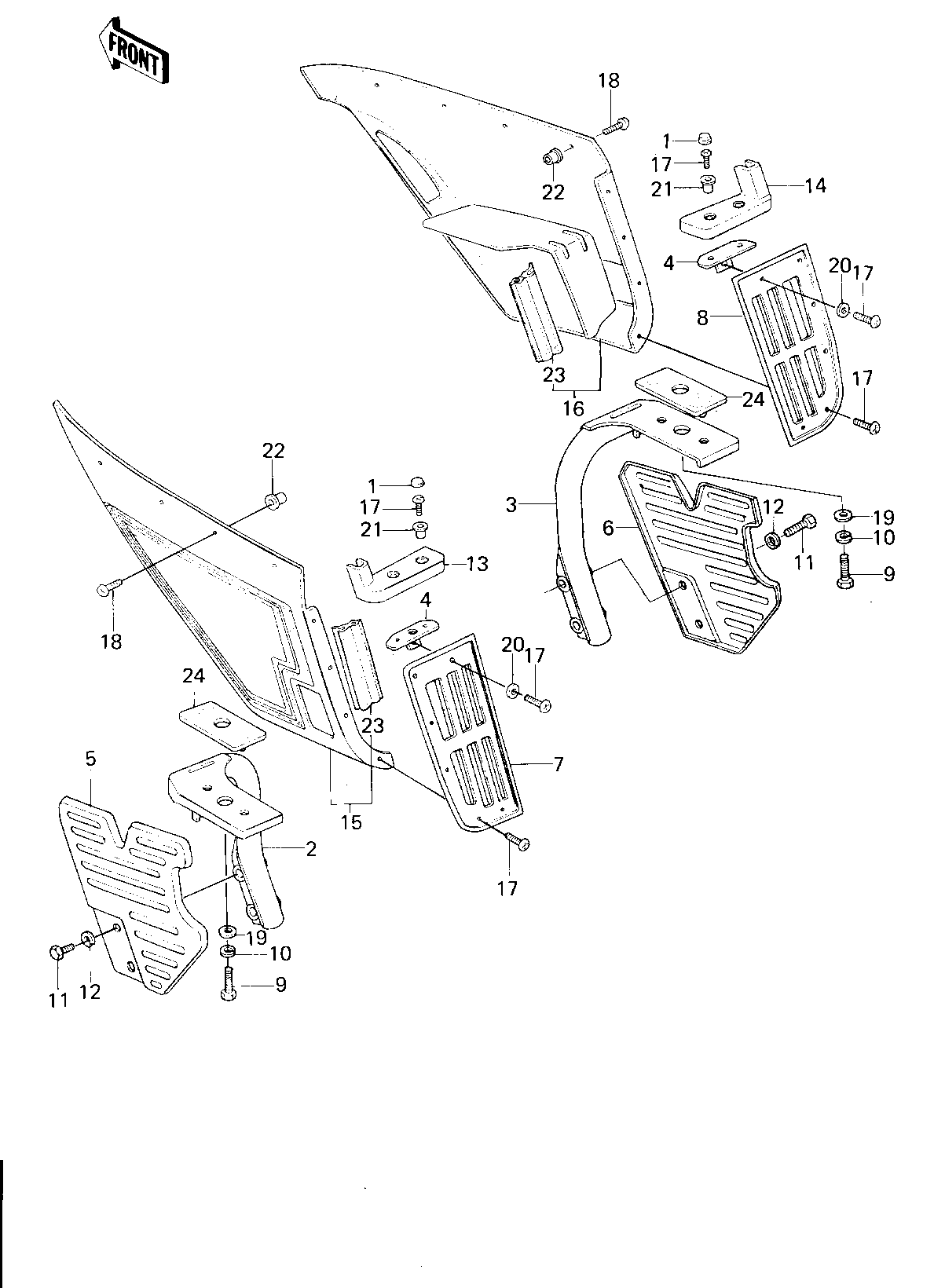

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,RADIATOR GUARD | 1 | 11012-1077 | 4 | ||
| BRACKET,COWLING FITT | 2 | 11034-1486 | 1 | ||
| BRACKET,COWLING FITT | 3 | 11034-1487 | 1 | ||
| BRACKET,COWLING FITT | 4 | 11034-1801 | 2 | ||
| PLATE,L.H | 5 | 13169-1290 | 1 | ||
| PLATE,R.H | 6 | 13169-1291 | 1 | ||
| COVER,COWLING,L.H | 7 | 14025-1236 | 1 | ||
| COVER,COWLING,R.H | 8 | 14025-1237 | 1 | ||
| BOLT-SMALL-UPSET 8X25 | 9 | 115G0825 | 2 | ||
| WASHER SPRING 8MM | 10 | 461F0800 | 2 | ||
| BOLT | 11 | 114G0836 | 4 | ||
| WASHER SPRING 8MM | 12 | 461F0800 | 4 | ||
| TRIM,COWLING,L.H | 13 | 53044-1018 | 1 | ||
| TRIM,COWLING,R.H | 14 | 53044-1019 | 1 | ||
| COWLING,L.H.R.D.RED | 15 | 55028-5006-D6 | 1 | L.H. | |
| *** N.L.A.*** (Canada) | 16 | 55028-5007-D6 | 1 | R.H. | |
| SCREW,PAN HEAD,6X20 | 17 | 92009-1019 | 14 | ||
| SCREW,6X28 | 18 | 92009-1066 | 8 | ||
| WASHER,8.5X20X1.6 | 19 | 92022-1561 | 2 | ||
| WASHER-PLAIN,7MM | 20 | 92022-240 | 2 | ||
| COLLAR,FAN | 21 | 92027-1188 | 4 | ||
| COLLAR,COWLING FITT | 22 | 92027-1200 | 8 | ||
| SEAL,COWLING | 23 | 92093-1041 | 2 | ||
| DAMPER,COWLING FITT | 24 | 92075-1180 | 2 |
