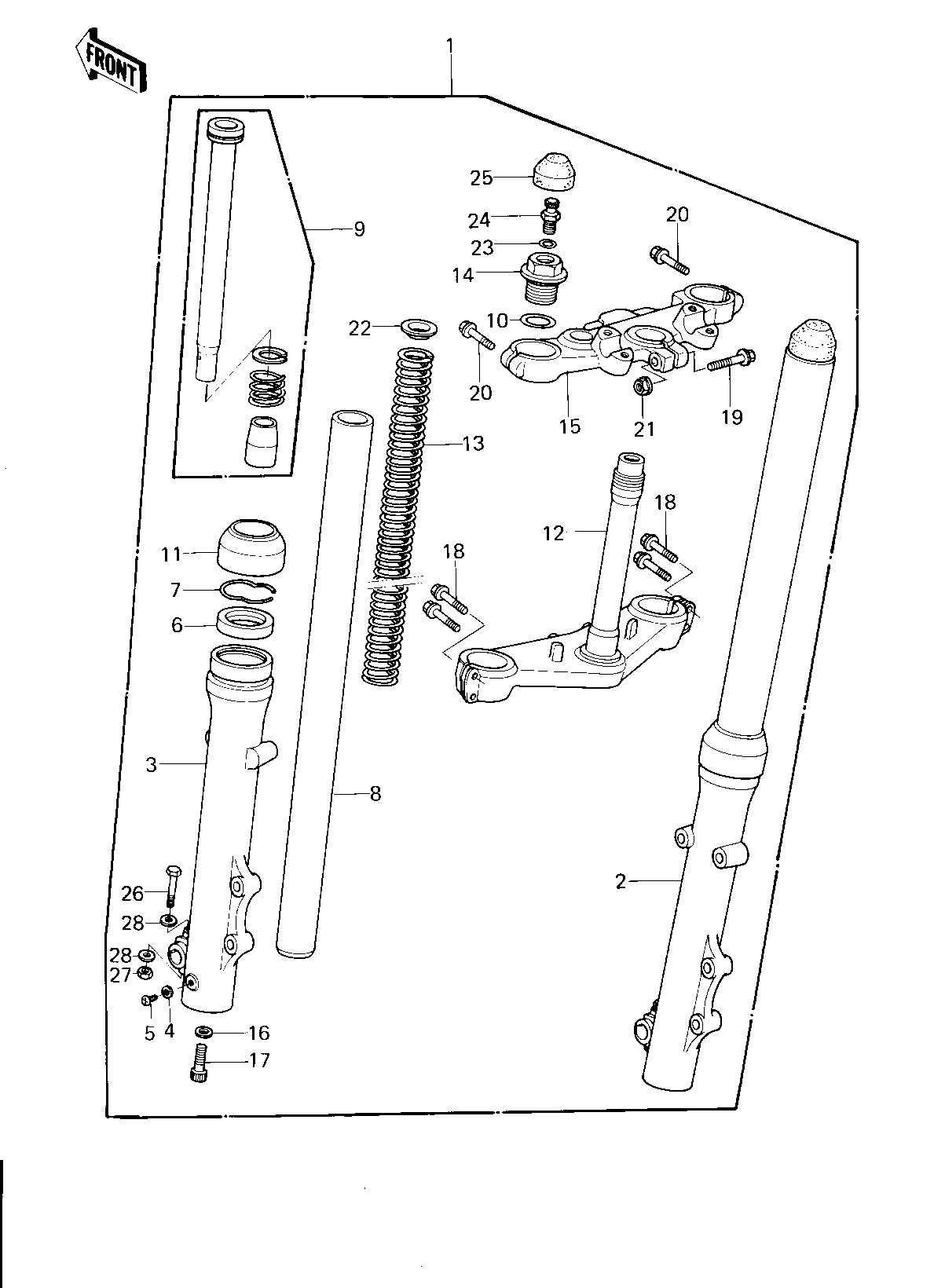

1980 KZ1300-B2 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FORK-FRONT 1 44001-1213 1
TUBE,RH,FORK OUTER 2 44006-1043 1
TUBE,LH,FORK OUTER 3 44005-1043 1
GASKET FORK DRAIN PLG 4 44045-002 2
SCREW PAN HEAD 4X8 5 220B0408 2
OIL SEAL 6 92049-1043 2
CIRCLIP 7 92033-1036 2
TUBE,FORK INNER 8 44013-1019 2
CYLINDER-FORK 9 44022-1029 2
"0" RING,FORK TOP CAP 10 92055-1050 2
DUST SHIELD,FORK 11 92093-1023 2
STEM,STEERING 12 44037-1031 1
SPRING,FORK 13 44026-1028 2
CAP,FORK TOP 14 44029-1008 2
HEAD,STEERING STEM 15 44039-1013 1
GASKET,FORK CYLINDER 16 11009-1127 2
BOLT,FORK CYLINDER 17 92001-1186 2
BOLT,FLANGED,8X45 18 131G0845 4
BOLT,HEX HEAD,8X53 19 92001-1060 1
BOLT,10X45 20 92001-1189 2
NUT,8M/M 21 44007-1002 1
GUIDE,FORK SPRING 22 44028-1003 2
"0" RING,AIR VALVE 23 92055-1018 2
VALVE ASSY,AIR 24 16126-1003 2
CAP,RUBBER,FORK TOP 25 44029-1009 2
BOLT,HEX HEAD,8X55 26 114G0855 2
NUT,LOCK,8MM 27 92015-1124 2
WASHER PLAIN 8MM 28 410B0800 4
