Parts Diagrams |

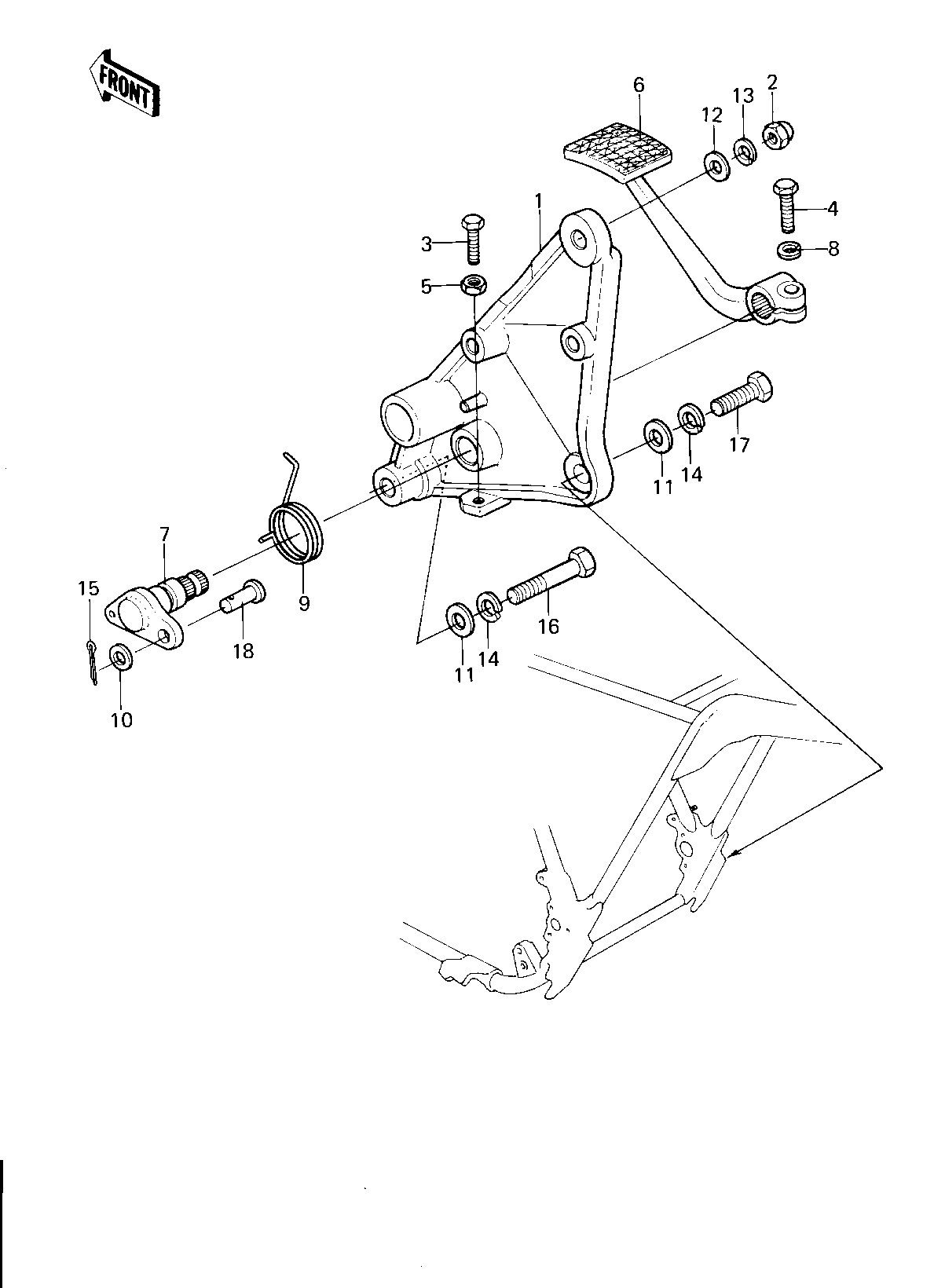

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BRACKET,BRAKE PEDAL | 1 | 11034-1694 | 1 | ||
| NUT,CAP,8M/M | 2 | 323N0800 | 1 | ||
| BOLT 6X22 | 3 | 112B0622 | 1 | ||
| BOLT-SMALL-UPSET 8X25 | 4 | 115G0825 | 1 | ||
| NUT 6MM | 5 | 311B0600 | 1 | ||
| PEDAL,BRAKE | 6 | 43001-1024 | 1 | ||
| SHAFT,BRAKE | 7 | 43004-1010 | 1 | ||
| WASHER SPRING 8MM | 8 | 461F0800 | 1 | ||
| SPRING,BRAKE PEDAL RT | 9 | 92081-1088 | 1 | ||
| WASHER PLAIN 6MM | 10 | 410B0600 | 1 | ||
| WASHER PLAIN 10MM | 11 | 410B1000 | 2 | ||
| WASHER PLAIN 8MM | 12 | 411B0800 | 1 | ||
| WASHER SPRING 8MM | 13 | 461F0800 | 1 | ||
| WASHER SPRING 10MM | 14 | 461F1000 | 2 | ||
| PIN COTTER 2.0X20 | 15 | 550D2020 | 1 | ||
| BOLT-HEX HEAD,10X46 | 16 | 92007-029 | 1 | ||
| BOLT,HEX HEAD,10X25 | 17 | 92007-045 | 1 | ||
| PIN RR BRAKE CABLE | 18 | 92043-107 | 1 |
