Parts Diagrams |

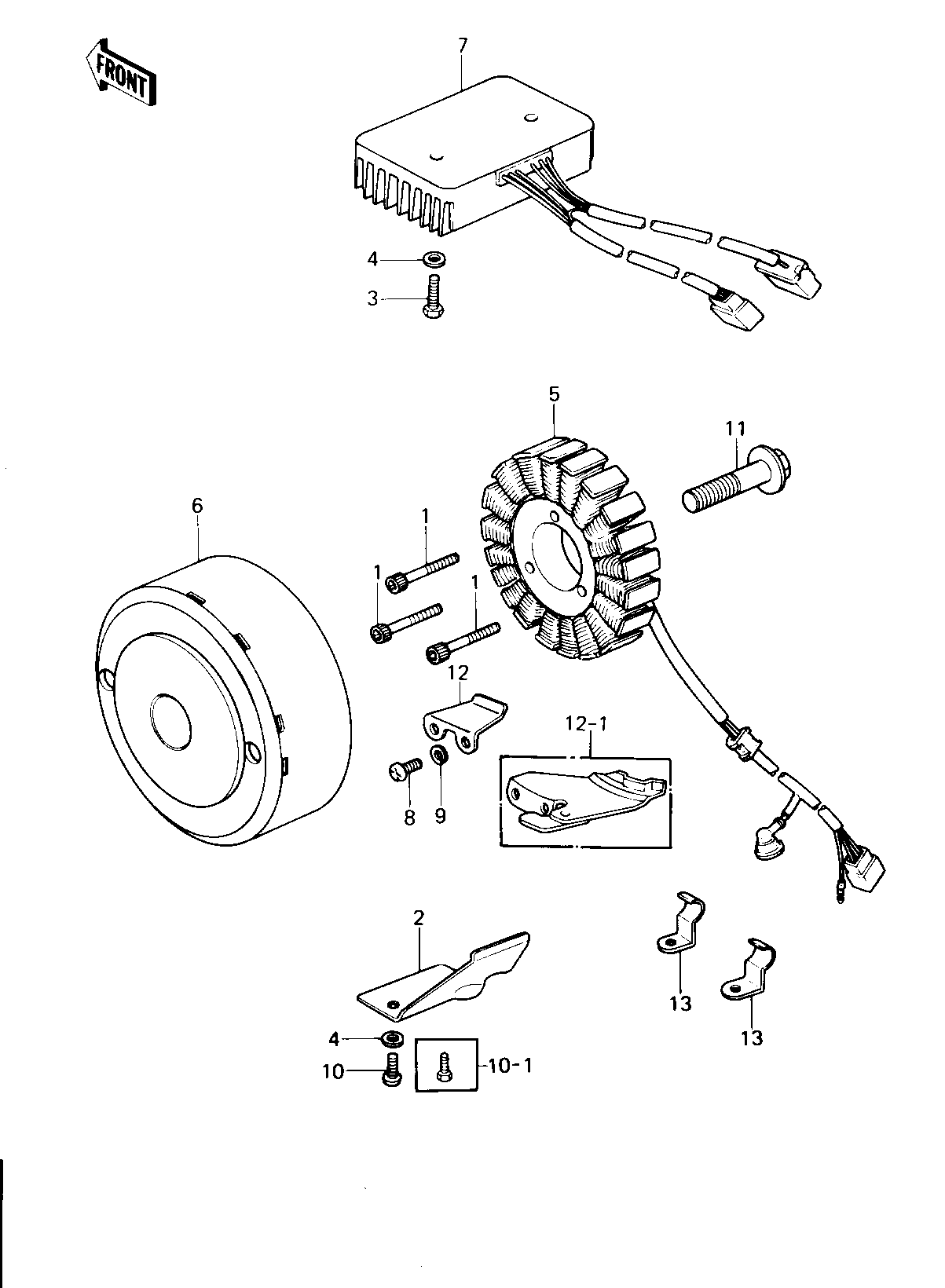

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,SOCKET,5X30 | 1 | 120Q0530A | 3 | ||
| BOLT,SOCKET,5X35 | 1 | 120Q0535A | 3 | E/NO. 009427~ | |
| COVER,GENERATOR LEAD | 2 | 14025-1153 | 1 | ||
| BOLT-UPSET | 3 | 112G0625 | 2 | ||
| BOLT-UPSET 6X14 | 3 | 112B0614 | 2 | E/NO. 009427~ | |
| WASHER PLAIN 6MM | 4 | 410B0600 | 4 | ||
| STATOR ASSY | 5 | 21003-1020 | 1 | ||
| STATOR ASSY | 5 | 21003-1035 | 1 | E/NO. 009427~ | |
| ROTOR | 6 | 21007-1015 | 1 | ||
| ROTOR | 6 | 21007-1029 | 1 | E/NO. 009427~ | |
| REGULATOR,VOLTAGE | 7 | 21066-1007 | 1 | ||
| REGULATOR,VOLTAGE | 7 | 21066-1015 | 1 | E/NO. 009427~ | |
| SCREW PAN HEAD 5X12 | 8 | 220B0512 | 2 | ||
| WASHER SPRING 5MM | 9 | 461F0500 | 2 | ||
| SCREW PAN HEAD 6X10 | 10 | 220B0610 | 2 | ||
| BOLT,6X10 | 10-1 | 112G0610 | 2 | ||
| BOLT,10X40 | 11 | 92001-1201 | 1 | ||
| CLAMP,GENERATOR LEAD | 12 | 92037-1098 | 1 | ||
| CLAMP,GENERATOR LEAD | 12-1 | 92037-1207 | 1 | E/NO. 009427~ | |
| CLAMP,LEAD WIRE | 13 | 92037-1345 | 2 |
