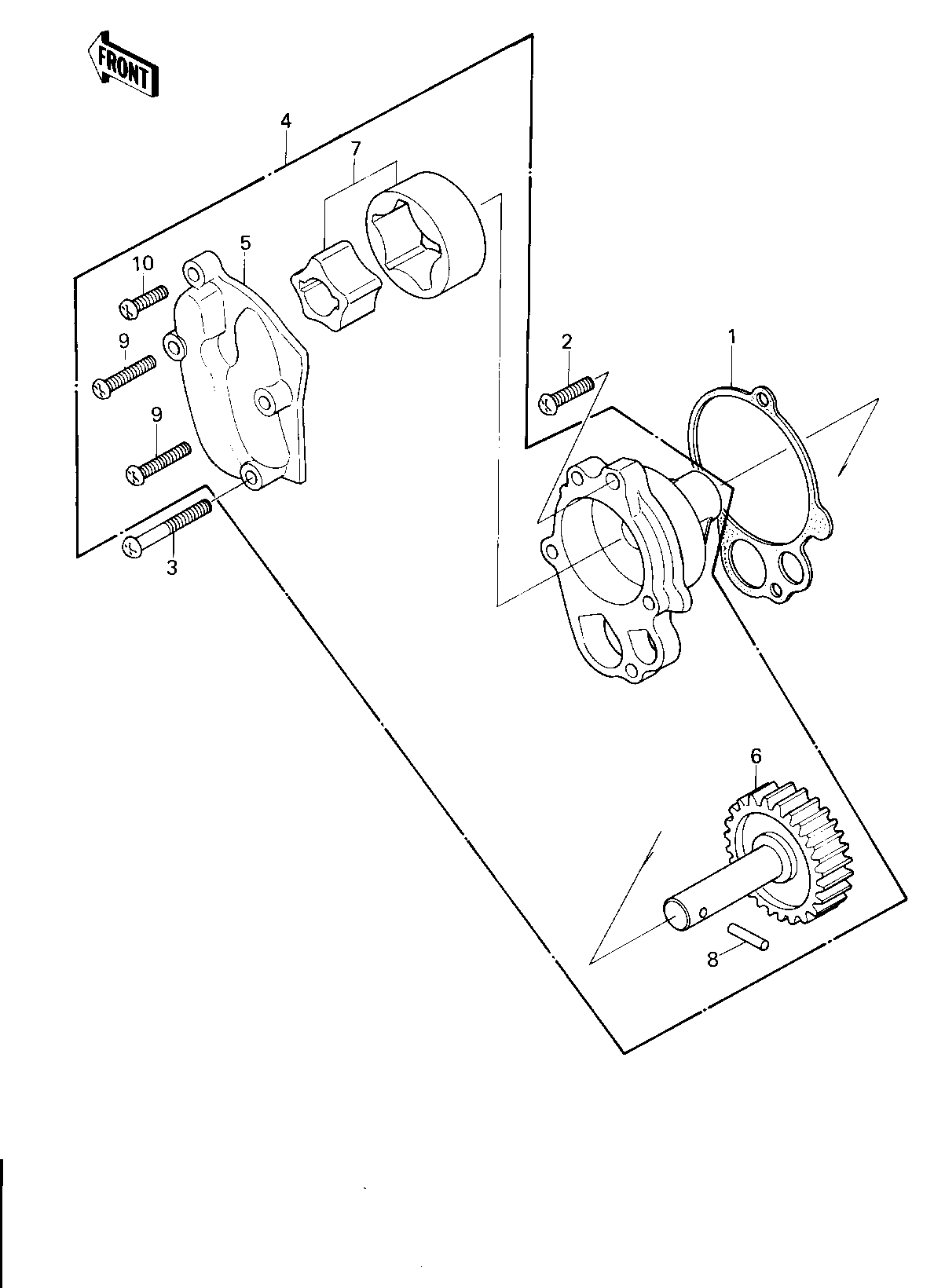

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,OIL PUMP | 1 | 11009-1088 | 1 | ||
| SCREW PAN HEAD 6X25 | 2 | 220B0625 | 1 | ||
| SCREW PAN HEAD 6X40 | 3 | 220B0640 | 1 | ||
| PUMP,OIL | 4 | 49042-1001 | 1 | ||
| COVER,OIL PUMP | 5 | 16142-1005 | 1 | ||
| GEAR ASSY,OIL PUMP | 6 | 13216-1018 | 1 | ||
| ROTOR ASSY,OIL PUMP | 7 | 16154-1007 | 1 | ||
| PIN,DOWEL 5X17.8 | 8 | 92043-1061 | 1 | ||
| SCREW PAN HEAD 6X28 | 9 | 220B0628 | 2 | ||
| SCREW PAN HEAD 6X18 | 10 | 220B0618 | 1 |
