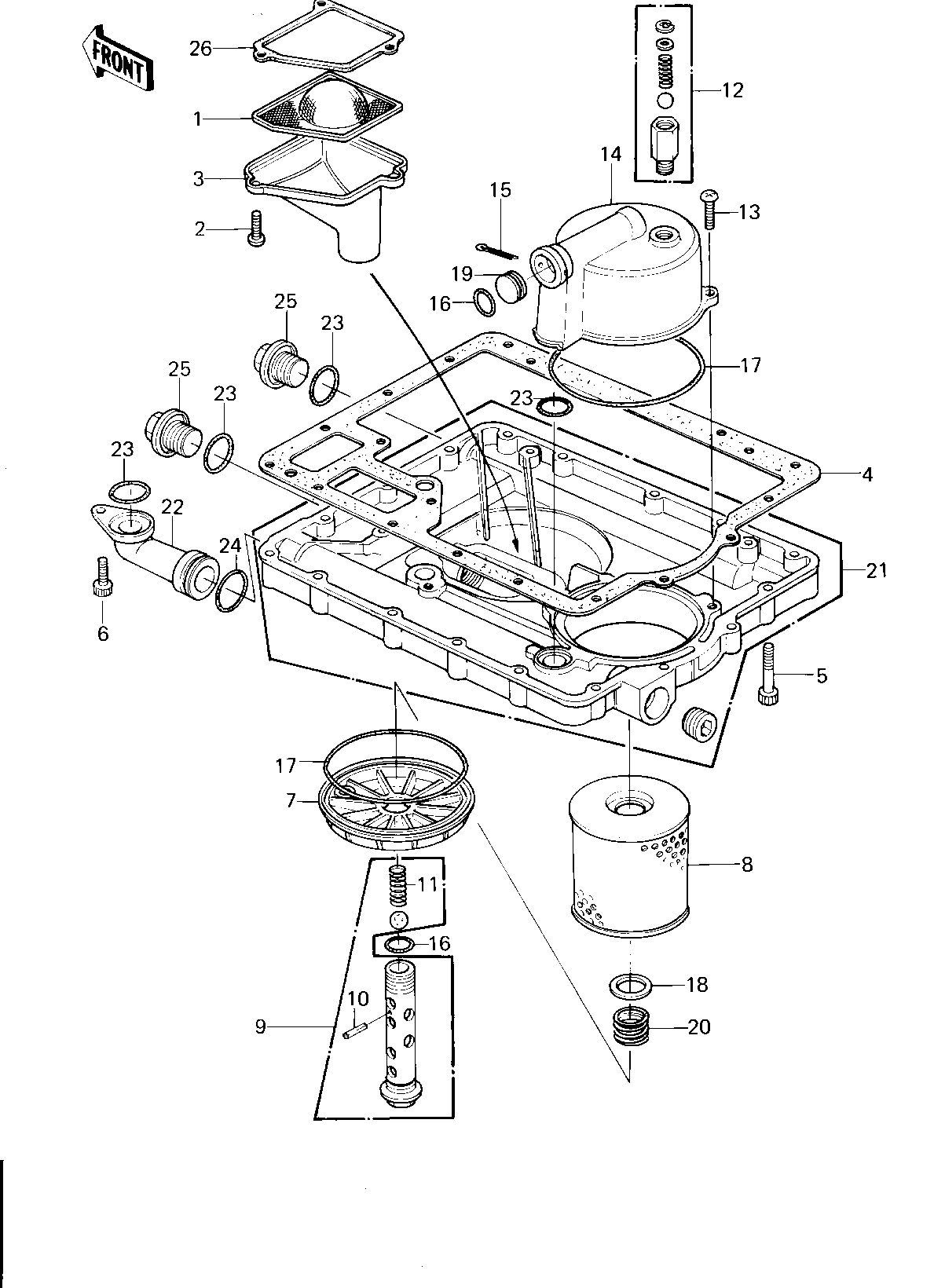

1980 KZ1300-B2 - OIL PAN/OIL FILTER (~E/NO. 010637)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FILTER,OIL | 1 | 14043-1007 | 1 | ||
| SCREW PAN HEAD 6X20 | 2 | 220B0620 | 3 | ||
| CASE,OIL FILTER | 3 | 32099-1006 | 1 | ||
| GASKET,OIL PAN | 4 | 11009-1093 | 1 | ||
| BOLT,SOCKET,6X35 | 5 | 120P0635 | 17 | ||
| BOLT,6X20 | 6 | 120P0620 | 1 | ||
| COVER,OIL FILTER | 7 | 14025-1170 | 1 | ||
| ELEMENT,OIL FILTER | 8 | 16099-002 | 1 | ||
| BOLT ASSY,OIL FILTER | 9 | 16126-1006 | 1 | ||
| SPRING PIN | 10 | 92043-111 | 1 | ||
| SPRING,PISTON | 11 | 92081-133 | 1 | ||
| RELEAF VALVE ASSY | 12 | 16130-1001 | 1 | ||
| SCREW PAN HEAD 6X20 | 13 | 220B0620 | 2 | ||
| CASE,OIL FILTER | 14 | 32099-1008 | 1 | ||
| PIN,COTTER,2.0X40 | 15 | 550D2040 | 1 | ||
| "0" RING,16MM | 16 | 670B2016 | 2 | ||
| "0" RING,95MM | 17 | 671B2595 | 2 | ||
| WASHER,20.5X30X1.0 | 18 | 92022-1012 | 1 | ||
| PLUG,OIL GALLERY,20MM | 19 | 92066-1023 | 1 | ||
| SPRING,OIL FILTER | 20 | 92081-1018 | 1 | ||
| PAN-OIL | 21 | 49034-5008 | 1 | ||
| ELBOW,OIL PASSAGE | 22 | 52014-1002 | 1 | ||
| "O" RING,22MM | 23 | 670B2022 | 4 | ||
| "0" RING,25MM | 24 | 671B2525 | 1 | ||
| PLUG,OIL DRAIN | 25 | 92001-1183 | 2 | ||
| GASKET,OIL FILTER | 26 | 11009-1193 | 1 |
