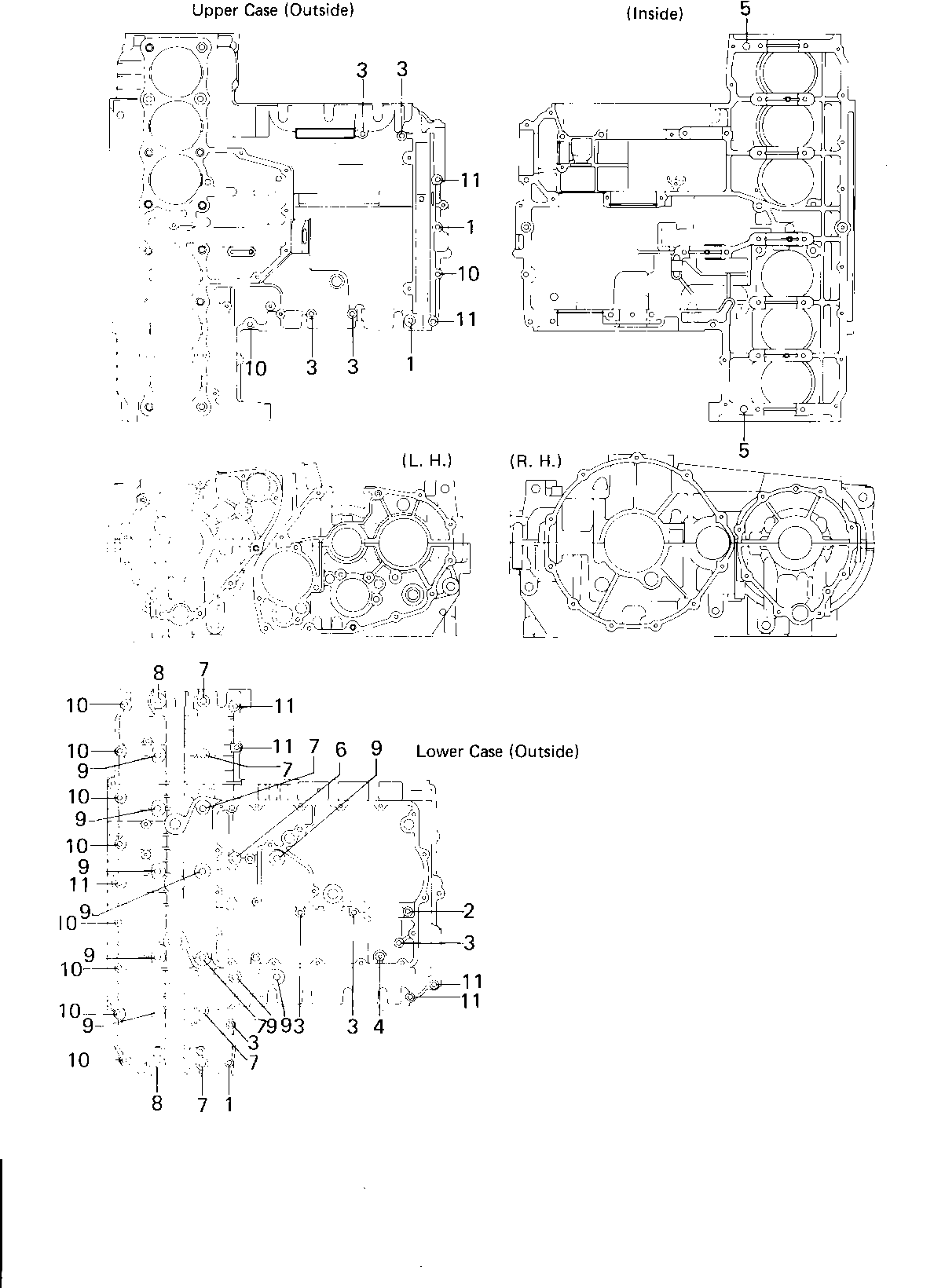

1980 KZ1300-B2 - CRANKCASE BOLT & STUD PATTERN
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,FLANGED,6X65 | 1 | 130G0665 | 3 | ||
| BOLT,FLANGED,6X85 | 2 | 130G0685 | 1 | MARKED PARTS ARE INCLUDED IN C | |
| BOLT,FLANGED,6X85 | 3 | 130G0685 | 8 | ||
| NOZZLE | 4 | 92062-015 | 1 | MARKED PARTS ARE INCLUDED IN C | |
| PIN,DOWEL,6.5X10X12 | 5 | 552B1012 | 2 | MARKED PARTS ARE INCLUDED IN C | |
| BOLT,TENSION,8X130 | 6 | 92001-1121 | 1 | ||
| BOLT,TENSION,8X105 | 7 | 92001-1185 | 6 | ||
| BOLT-FLANGED,8X95 | 8 | 130P0895 | 2 | MARKED PARTS ARE INCLUDED IN C | |
| BOLT-FLANGED,8X95 | 9 | 130P0895 | 9 | ||
| BOLT,HEX HEAD,6X38 | 10 | 92003-116 | 10 | ||
| BOLT-FLANGED,6X50 | 11 | 130G0650 | 7 |
| BOLT,FLANGED,6X65 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X85 | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | MARKED PARTS ARE INCLUDED IN C |
| BOLT,FLANGED,6X85 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NOZZLE | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | MARKED PARTS ARE INCLUDED IN C |
| PIN,DOWEL,6.5X10X12 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | MARKED PARTS ARE INCLUDED IN C |
| BOLT,TENSION,8X130 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,TENSION,8X105 | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,8X95 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | MARKED PARTS ARE INCLUDED IN C |
| BOLT-FLANGED,8X95 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD,6X38 | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X50 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
