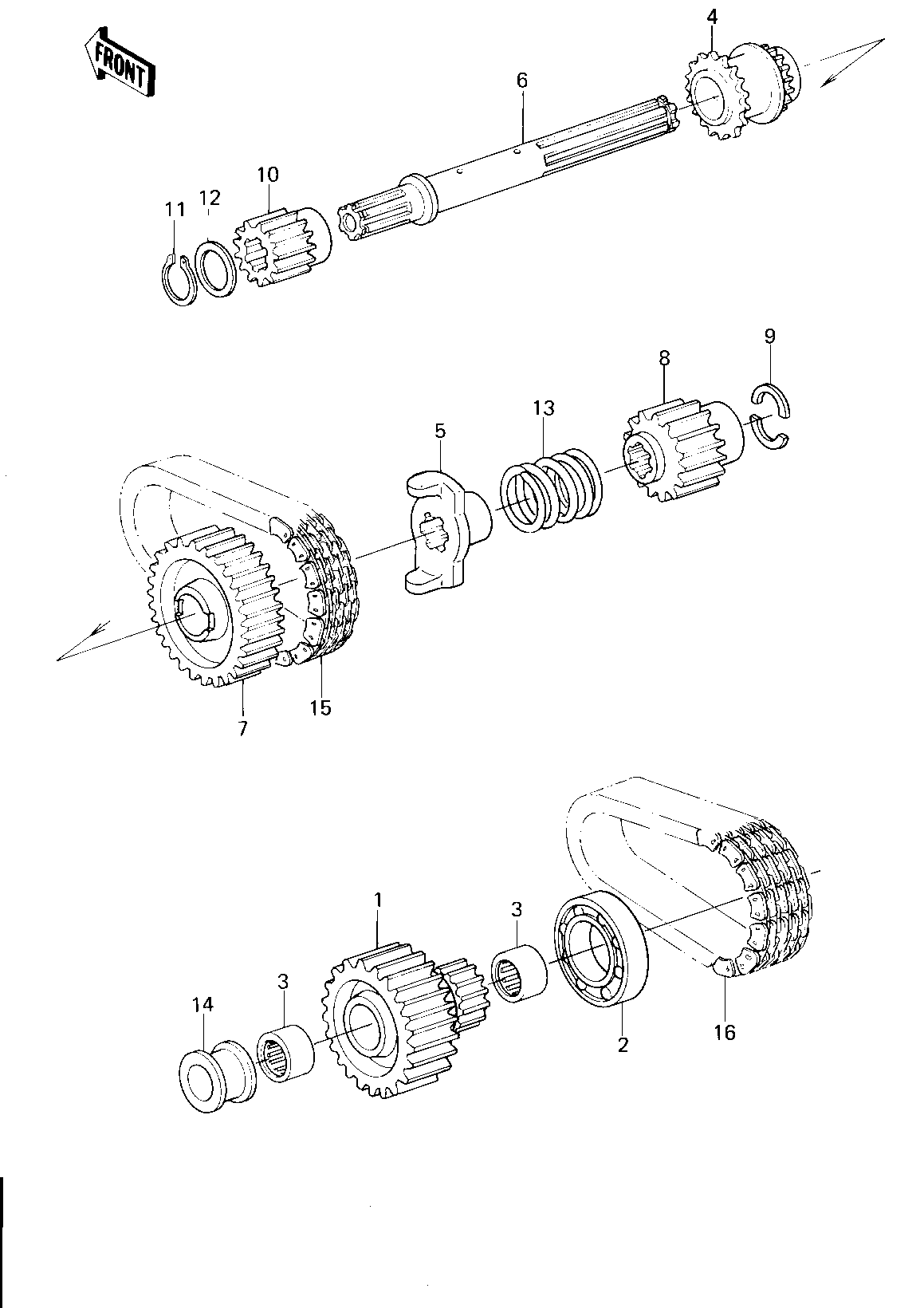

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPROCKET,SECOND,DRVN | 1 | 13112-1003 | 1 | ||
| BEARING,BALL,#6009 | 2 | 92045-1015 | 1 | ||
| BEARING,NEEDLE,HK2520 | 3 | 92046-1014 | 2 | ||
| SPROCKET,TIMING,28,24 | 4 | 12046-1011 | 1 | ||
| FOLLOWER,CAM | 5 | 13048-1001 | 1 | ||
| SHAFT,SECONDARY | 6 | 13107-1007 | 1 | ||
| SPROCKET,PRIMARY,DRVN | 7 | 13112-1001 | 1 | ||
| SPROCKET,SECOND,DRIVE | 8 | 13112-1002 | 1 | ||
| RING,POSITON | 9 | 14013-1001 | 2 | ||
| GEAR,OIL PUMP DRIVE | 10 | 16085-1004 | 1 | ||
| CIRCLIP,25M/M | 11 | 480J2500 | 1 | ||
| WASHER,25.3X33X1.0 | 12 | 92022-1109 | 1 | ||
| SPRING,CAM FOLLOWER | 13 | 92081-1085 | 1 | ||
| COLLAR,25X40X26.1 | 14 | 92027-1136 | 1 | ||
| CHAIN,PRIMARY | 15 | 92057-1016 | 1 | ||
| CHAIN,SECONDARY | 16 | 92057-1017 | 1 |
