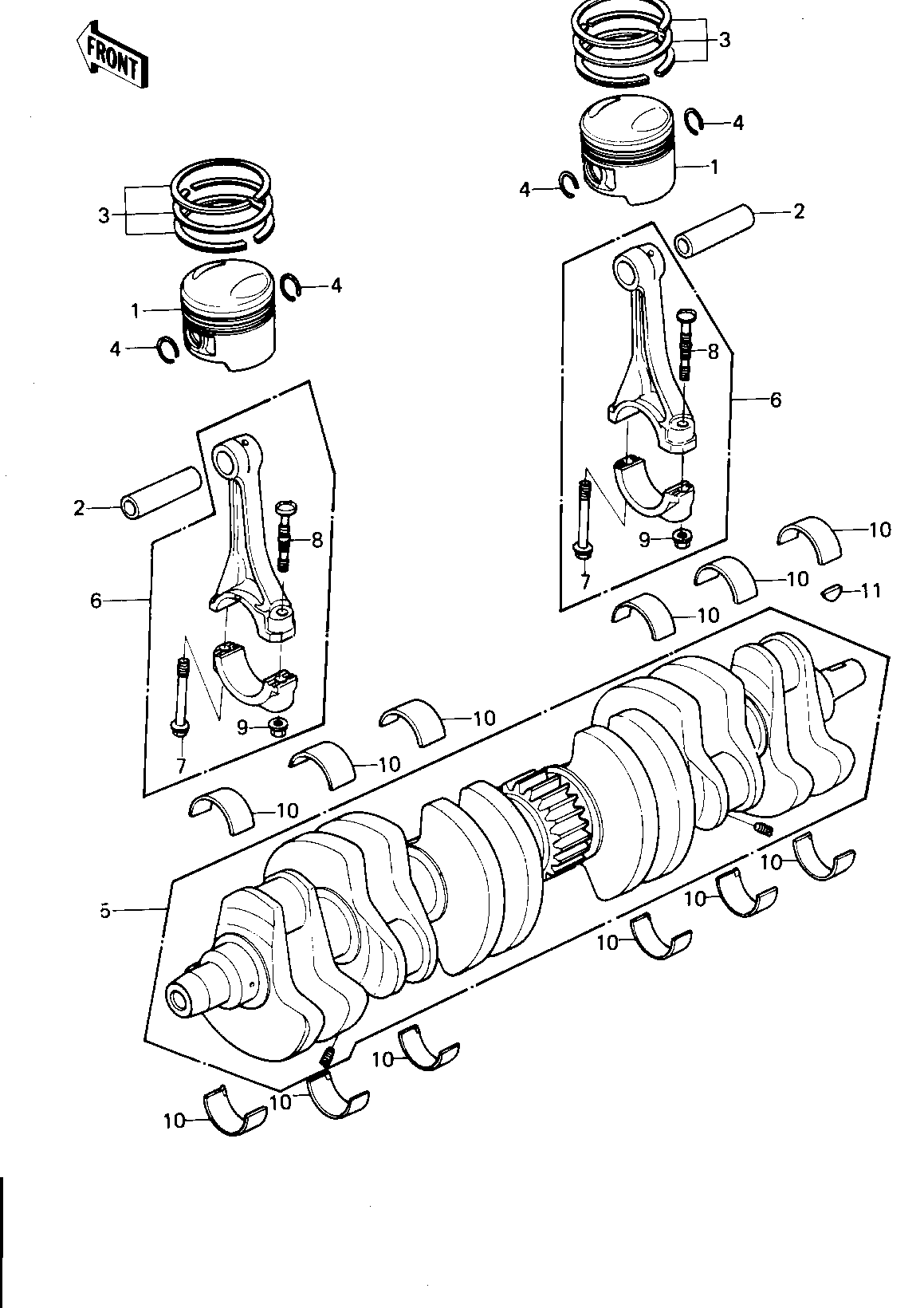

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| PISTON-ENGINE,STD | 1 | 13001-1113 | 6 | ||
| PISTON-ENGINE L,O/S | 1 | 13029-1061 | (6 | ||
| PIN-PISTON | 2 | 13002-032 | 6 | ||
| RING-SET-PISTON,STD | 3 | 13008-5059 | 6 | ||
| RING-SET-PISTON-L | 3 | 13025-5025 | (6 | ||
| CIRCLIP PISTON PIN | 4 | 92036-005 | 12 | ||
| CRANKSHAFT-COMP SET | 5 | 13031-5005 | 1 | ||
| CRANKSHAFT-COMP SET | 5 | 13031-5005 | 1 | E/NO. 010638~ | |
| ROD-ASSY-CONNECTING | 6 | 13251-1051-JJ | 6 | "G" MARK | |
| CONNECTING ROD ASSY,H | 6 | 13251-1006-HH | 6 | "H" MARK | |
| CONNECTING ROD ASSY,I | 6 | 13251-1006-II | 6 | "I" MARK | |
| BOLT,CONNECTING ROD | 7 | 92001-1120 | 6 | ||
| BOLT | 8 | 92001-169 | 6 | ||
| NUT,FLANGED,8MM | 9 | 92015-1311 | 6 | ||
| BUSHING,CONNECTNG ROD | 10 | 92028-1049 | 12 | GREEN MARK | |
| BUSHING,CONNECTNG ROD | 10 | 92028-1050 | 12 | BLACK MARK | |
| BUSHING,CONNECTNG ROD | 10 | 92028-1051 | 12 | BROWN MARK | |
| WOODRUFF KEY | 11 | 92038-001 | 1 |
