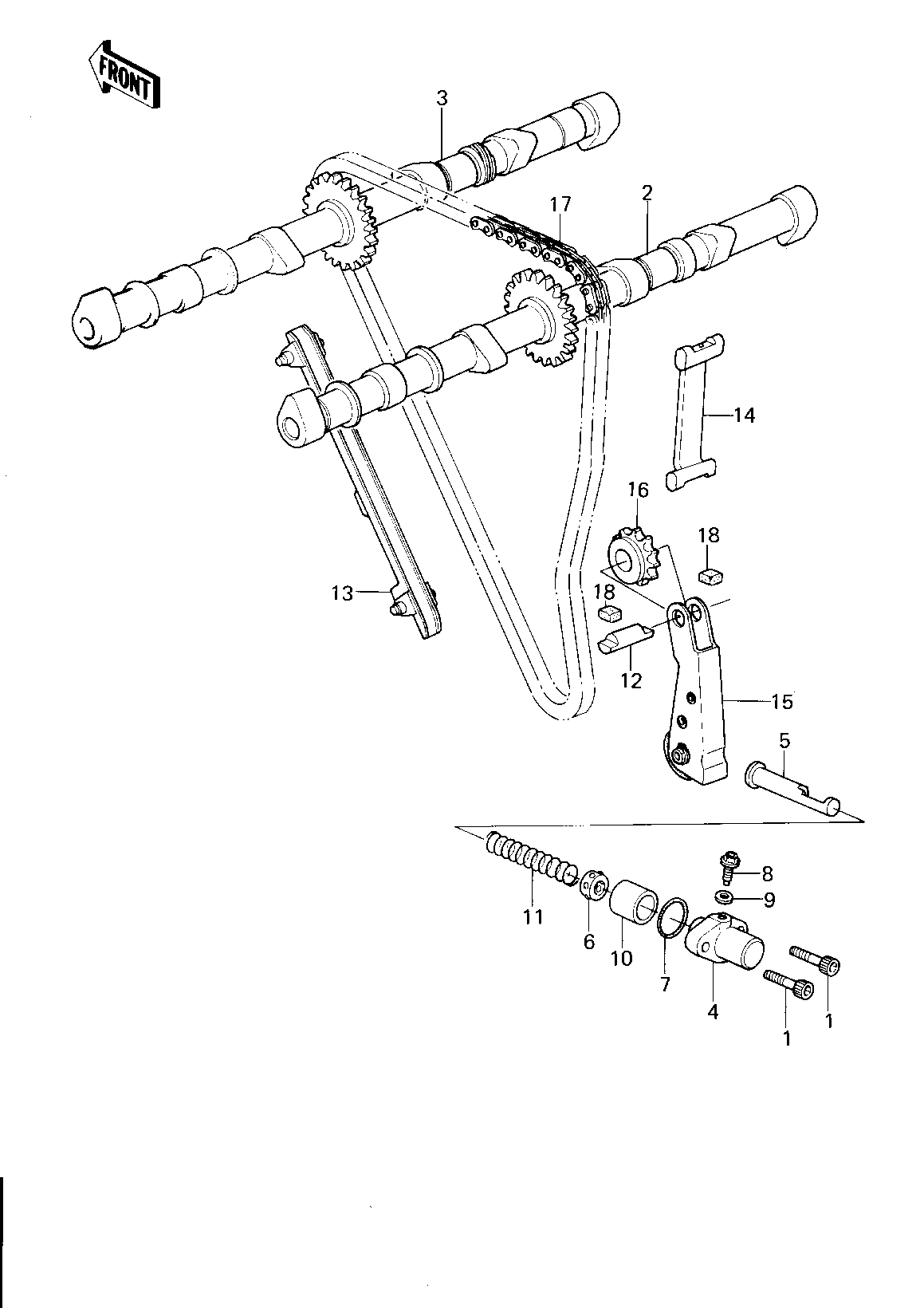

1980 KZ1300-B2 - CAMSHAFTS/CHAIN/TENSIONER
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,6X25 | 1 | 120P0625 | 2 | ||
| CAMSHAFT,VALVE,INTAKE | 2 | 12044-1012 | 1 | ||
| CAMSHAFT,VALVE,EXHUST | 3 | 12044-1013 | 1 | ||
| TENSIONER,CAM CHAIN | 4 | 12049-1055 | 1 | ||
| ROD,PUSH | 5 | 13116-1015 | 1 | ||
| RETAINER | 6 | 14020-1002 | 1 | ||
| "O" RING,22MM | 7 | 670B2022 | 1 | ||
| BELT,TENSIONER ADJUST | 8 | 92001-1155 | 1 | ||
| WASHER OIL PUMP BANJO | 9 | 92022-077 | 1 | ||
| COLLAR,TENSIONER | 10 | 92027-1273 | 1 | ||
| SPRING,TENSIONER | 11 | 92081-1105 | 1 | ||
| SHAFT,GUIDE ROLLER | 12 | 12052-005 | 1 | ||
| GUIDE,CHAIN,CAM,FRONT | 13 | 12053-1024 | 1 | ||
| GUIDE,CHAIN,CAM,REAR | 14 | 12053-1025 | 1 | ||
| GUIDE,CHAIN,TENSIONER | 15 | 12053-1028 | 1 | ||
| SPROCKET,CAM CHAIN | 16 | 21053-1004 | 1 | ||
| CHAIN,CAMSHAFT | 17 | 92057-1018 | 1 | ||
| RUBBER,GUIDE ROLLAR | 18 | 92075-232 | 2 |
| BOLT,6X25 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT,VALVE,INTAKE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAMSHAFT,VALVE,EXHUST | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| TENSIONER,CAM CHAIN | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,PUSH | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RETAINER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "O" RING,22MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BELT,TENSIONER ADJUST | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER OIL PUMP BANJO | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,TENSIONER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,TENSIONER | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,GUIDE ROLLER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,CHAIN,CAM,FRONT | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,CHAIN,CAM,REAR | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,CHAIN,TENSIONER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPROCKET,CAM CHAIN | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CHAIN,CAMSHAFT | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RUBBER,GUIDE ROLLAR | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
