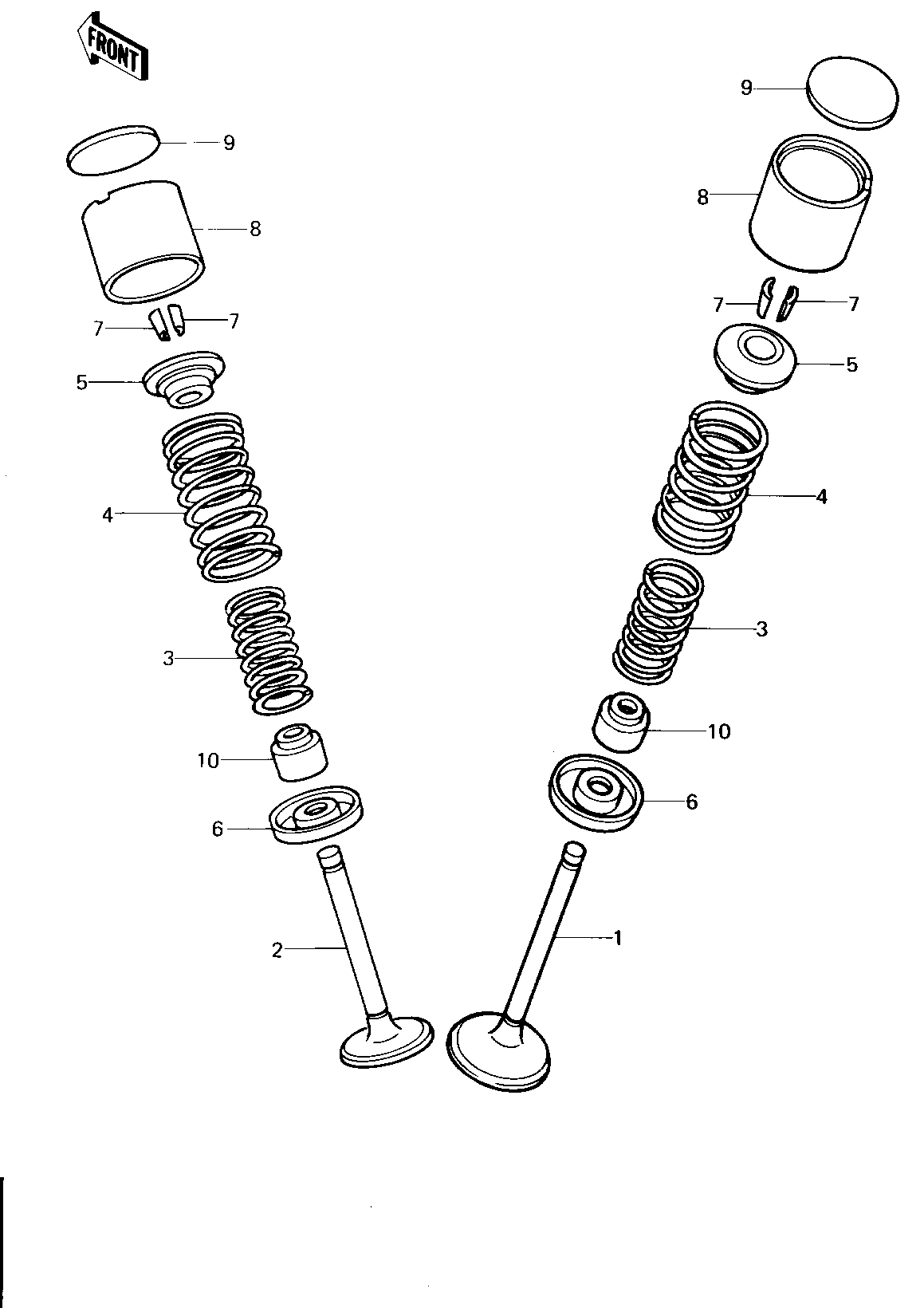

1980 KZ1300-B2 - VALVES

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE,INTAKE 1 12004-1004 6
VALVE,EXHAUST 2 12005-1004 6
SPRING,INNER VALVE 3 12007-011 12
SPRING,OUTER VALVE 4 12007-012 12
RETAINER,VALVE SPRING 5 12009-005 12
SEAT-SPRING,VALVE 6 16007-1024 12
SEAT-SPRING,VALVE 6 16007-1024 12
SPLIT KEEPER 7 12011-004 24
TAPPET 8 12032-005 12
TAPPET 8 12032-1002 12
SHIM,TAPPET,2.00T 9 12037-001 AR
SHIM,TAPPET,2.05T 9 12037-002 AR
SHIM,TAPPET,2.10T 9 12037-003 AR
SHIM,TAPPET,2.15T 9 12037-004 AR
SHIM,TAPPET,2.20T 9 12037-005 AR
SHIM,TAPPET,2.25T 9 12037-006 AR
SHIM,TAPPET,2.30T 9 12037-007 AR
SHIM,TAPPET,2.35T 9 12037-008 AR
SHIM,TAPPET,2.40T 9 12037-009 AR
SHIM,TAPPET,2.45T 9 12037-010 AR
SHIM,TAPPET,2.50T 9 12037-011 AR
SHIM,TAPPET,2.55T 9 12037-012 AR
SHIM,TAPPET,2.60T 9 12037-013 AR
SHIM,TAPPET,2.65T 9 12037-014 AR
SHIM,TAPPET,2.70T 9 12037-015 AR
SHIM,TAPPET,2.75T 9 12037-016 AR
SHIM,TAPPET,2.80T 9 12037-017 AR
SHIM,TAPPET,2.85T 9 12037-018 AR
SHIM,TAPPET,2.90T 9 12037-019 AR
SHIM,TAPPET,2.95T 9 12037-020 AR
SHIM,TAPPET,3.00T 9 12037-021 AR
SHIM,TAPPET,3.05T 9 12037-022 AR
SHIM,TAPPET,3.10T 9 12037-023 AR
SHIM,TAPPET,3.15T 9 12037-024 AR
SHIM,TAPPET 3.20T 9 12037-025 AR
OIL SEAL,RV37129.5 10 92049-016 12
