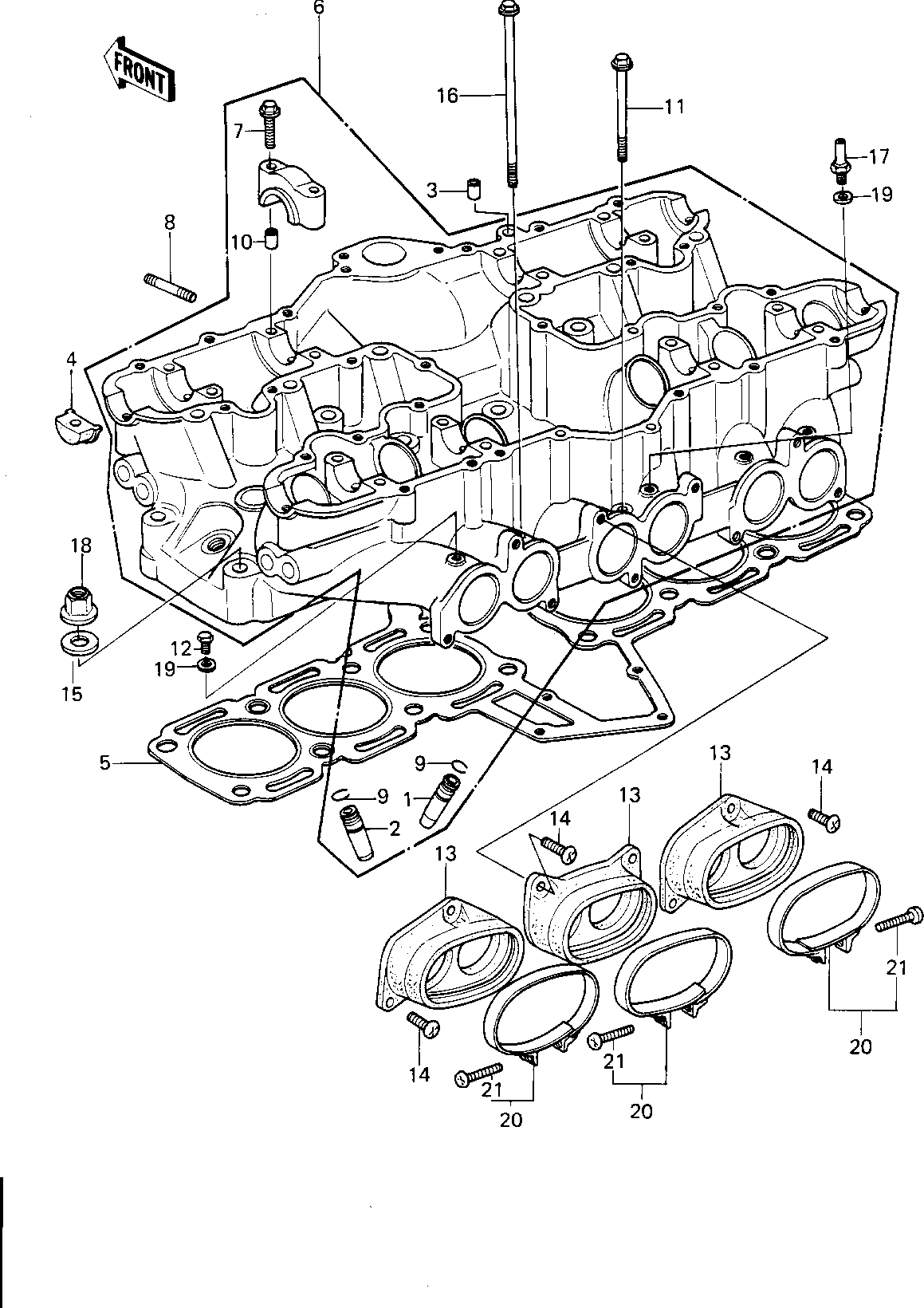

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GUIDE,INLET VALVE | 1 | 12013-009 | 6 | ||
| GUIDE,EXHAUST VALVE | 2 | 49002-1002 | 6 | ||
| PIN-DOWEL | 3 | 92042-007 | 1 | ||
| PLUG,CAMSHAFT | 4 | 92066-1030 | 4 | ||
| GASKET,HEAD,CYLINDER | 5 | 11004-1014 | 1 | ||
| HEAD,CYLINDER | 6 | 11008-1002 | 1 | ||
| BOLT,HEX HEAD,6X45 | 7 | 92003-092 | 16 | ||
| STUD,6X27 | 8 | 92004-066 | 12 | ||
| CIRCLIP-VALVE | 9 | 92036-023 | 12 | ||
| PIN-DOWEL | 10 | 92042-007 | 16 | ||
| BOLT,FLANGED,6X65 | 11 | 130G0665 | 3 | ||
| BOLT,FLANGED,6X18 | 12 | 130N0608 | 4 | ||
| HOLDER,CARBURETOR | 13 | 16065-1016 | 3 | ||
| SCREW PAN HEAD 6X16 | 14 | 220B0616 | 9 | ||
| WASHER PLAIN 10MM | 15 | 411B1000 | 16 | ||
| BOLT,HEX HEAD,6X161 | 16 | 92001-1302 | 1 | ||
| BOLT,VACUUM | 17 | 92001-1143 | 2 | ||
| NUT,CYLINDER HEAD | 18 | 92015-076 | 16 | ||
| WASHER,PLAIN | 19 | 92022-304 | 6 | ||
| CLAMP,CARBURETOR HLDR | 20 | 92037-1119 | 3 | ||
| SCREW,PAN HEAD,5X30 | 21 | 92011-032 | 3 |
