Parts Diagrams |

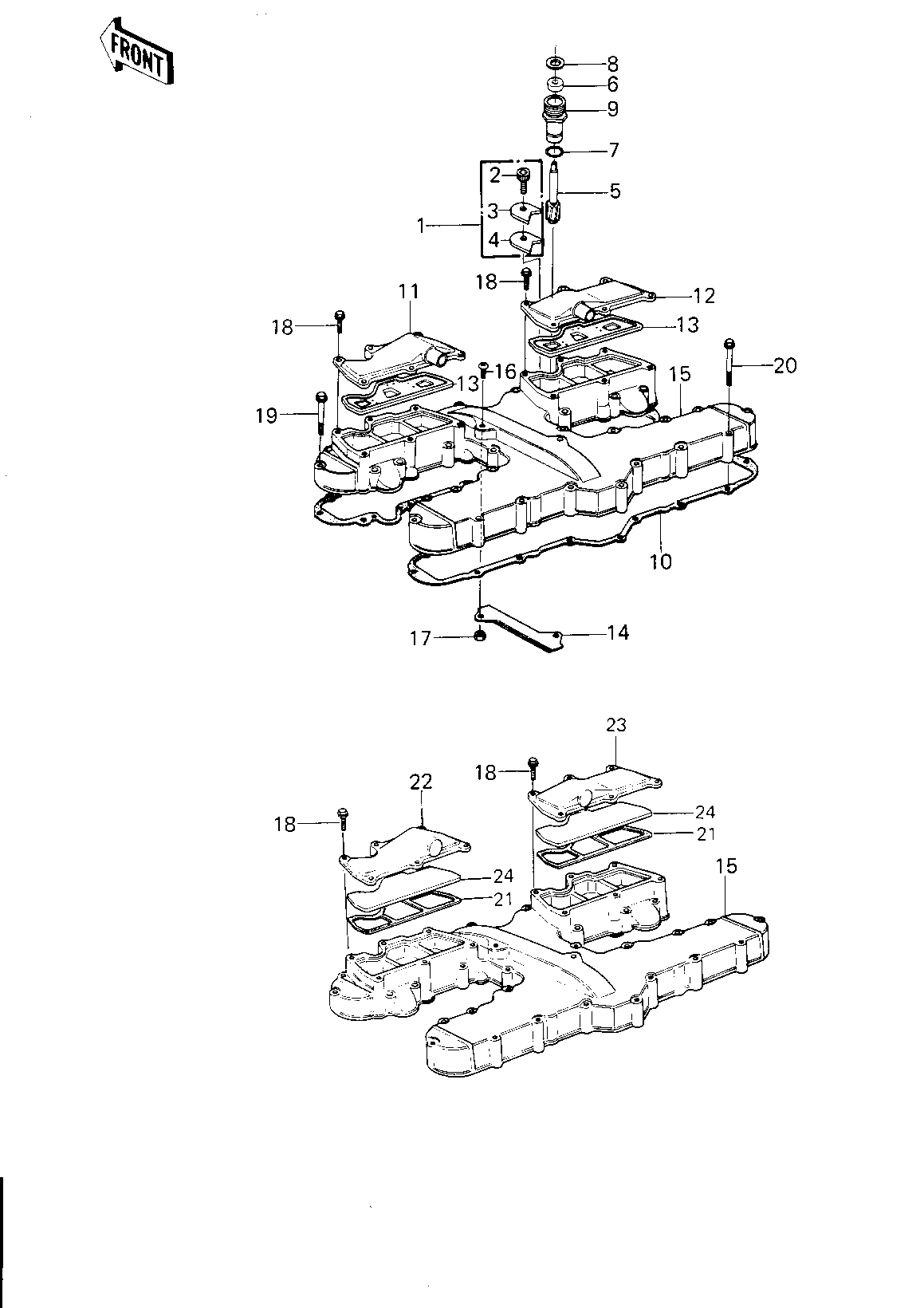

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER SET,TACHOMETER | 1 | 13091-5001 | 1 | ||
| BOLT, (6X14) | 2 | 120P0614 | 1 | ||
| HOLDER,TACHOMETER2.3T | 3 | 13091-1008 | 1 | ||
| HOLDER,TACHOMETR,3.2T | 4 | 13091-1009 | 1 | ||
| GEAR,TACHOMETER,10T | 5 | 13223-011 | 1 | ||
| OIL SEAL | 6 | 92050-075 | 1 | ||
| RING-O,10MM | 7 | 92055-1149 | 1 | ||
| GASKET,TACHOMETER GER | 8 | 92065-103 | 1 | ||
| GUIDE,TACHOMETER GEAR | 9 | 92087-010 | 1 | ||
| GASKET,CYL HEAD COVER | 10 | 11009-1095 | 1 | ||
| CAP,L.H,REED VALVE | 11 | 11012-1057 | 1 | ||
| CAP,R.H,REED VALVE | 12 | 11012-1058 | 1 | ||
| VALVE ASSY,REED | 13 | 12021-1004 | 2 | ||
| GUIDE,CHAIN,CAM | 14 | 12053-1026 | 1 | ||
| COVER,CYLINDER HEAD | 15 | 14025-1062 | 1 | ||
| SCREW PAN HEAD 6X16 | 16 | 220B0616 | 2 | ||
| NUT 6MM | 17 | 311B0600 | 2 | ||
| BOLT,HEX HEAD, (6X20) | 18 | 92001-1100 | 12 | ||
| BOLT,HEX HEAD, (6X52) | 19 | 92001-1192 | 4 | ||
| BOLT,HEX HEAD, (6X45) | 20 | 92003-092 | 28 |
| HOLDER SET,TACHOMETER | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT, (6X14) | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,TACHOMETER2.3T | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER,TACHOMETR,3.2T | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,TACHOMETER,10T | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| OIL SEAL | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING-O,10MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,TACHOMETER GER | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,TACHOMETER GEAR | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GASKET,CYL HEAD COVER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,L.H,REED VALVE | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,R.H,REED VALVE | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| VALVE ASSY,REED | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GUIDE,CHAIN,CAM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,CYLINDER HEAD | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X16 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD, (6X20) | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD, (6X52) | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,HEX HEAD, (6X45) | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 28 |
| DESTINATION | |
| REMARKS | |
