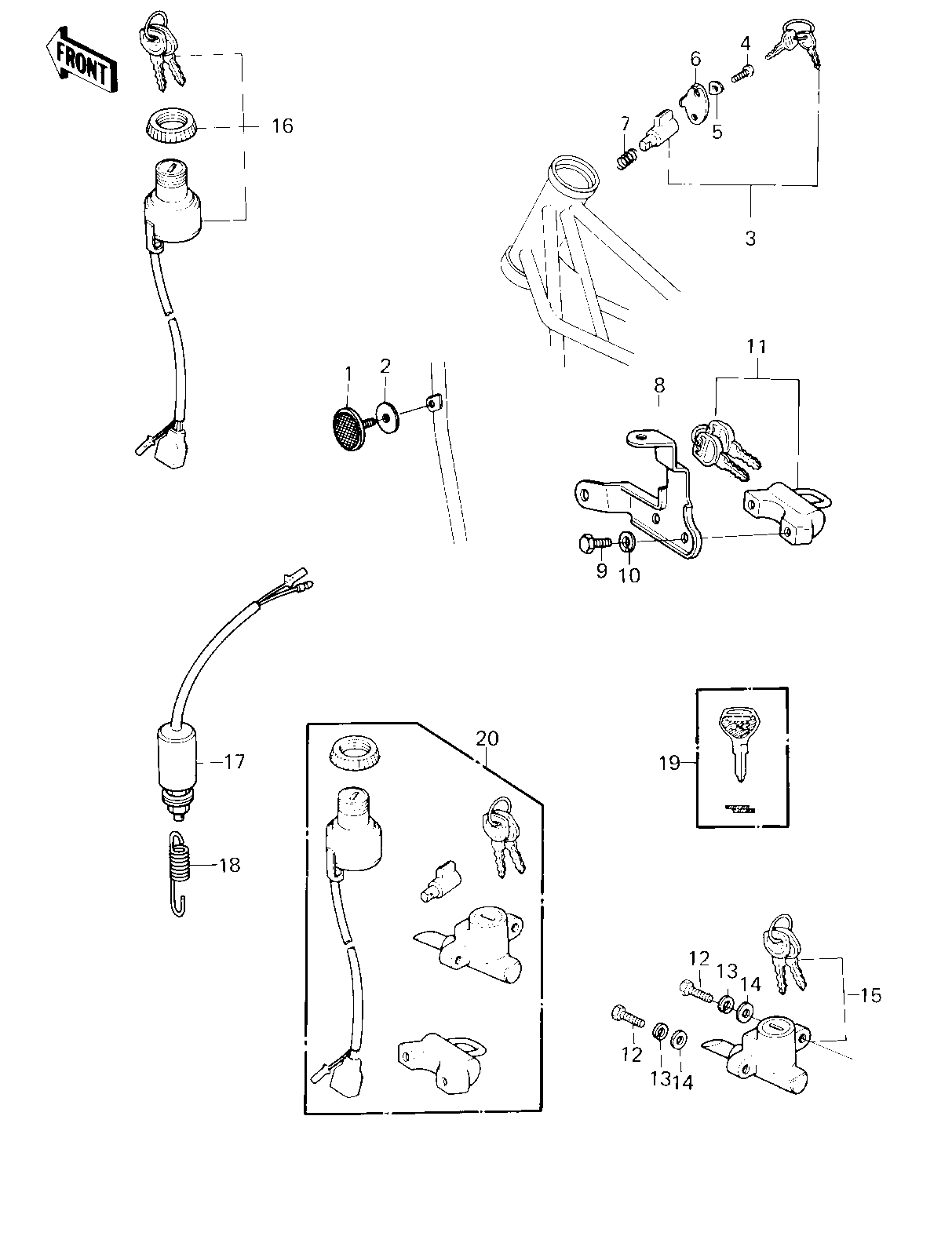

1980 Z1R - IGNITION SWITCH/LOCKS/REFLECTORS ('80 D3
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| REFLECTOR,REFLEX | 1 | 28012-016 | 2 | ||
| DAMPER RUBBER,REFLEC | 2 | 92094-011 | 2 | ||
| LOCK,ASSY,STEERING | 3 | 27016-5016 | 1 | ||
| SCREW-TAPPING | 4 | 92008-007 | 1 | ||
| WASHER | 5 | 92097-003 | 1 | ||
| CAP,STEERING LOCK | 6 | 11012-1134 | 1 | ||
| SPRING-STEERING LOCK | 7 | 27032-001 | 1 | ||
| BRACKET,HELMET LOCK | 8 | 11034-1134 | 1 | ||
| BOLT-UPSET | 9 | 112G0516 | 2 | ||
| WASHER SPRING 5MM | 10 | 461F0500 | 2 | ||
| LOCK ASSY,HELMET | 11 | 27016-5014 | 1 | ||
| BOLT-UPSET | 12 | 112G0516 | 2 | ||
| WASHER SPRING 5MM | 13 | 461F0500 | 2 | ||
| WASHER PLAIN 5MM | 14 | 411B0500 | 2 | ||
| LOCK ASSY,SEAT | 15 | 27016-5031 | 1 | ||
| SWITCH ASSY,IGNITION | 16 | 27005-5012 | 1 | ||
| SWITCH-BRAKE LAMP | 17 | 27010-017 | 1 | ||
| SPRING BRAKE LAMP SW | 18 | 27011-009 | 1 | ||
| KEY-LOCK,BLANK | 19 | 27008-1103 | AR | ||
| LOCK ASSY | 20 | 27004-5019 | (1 |
