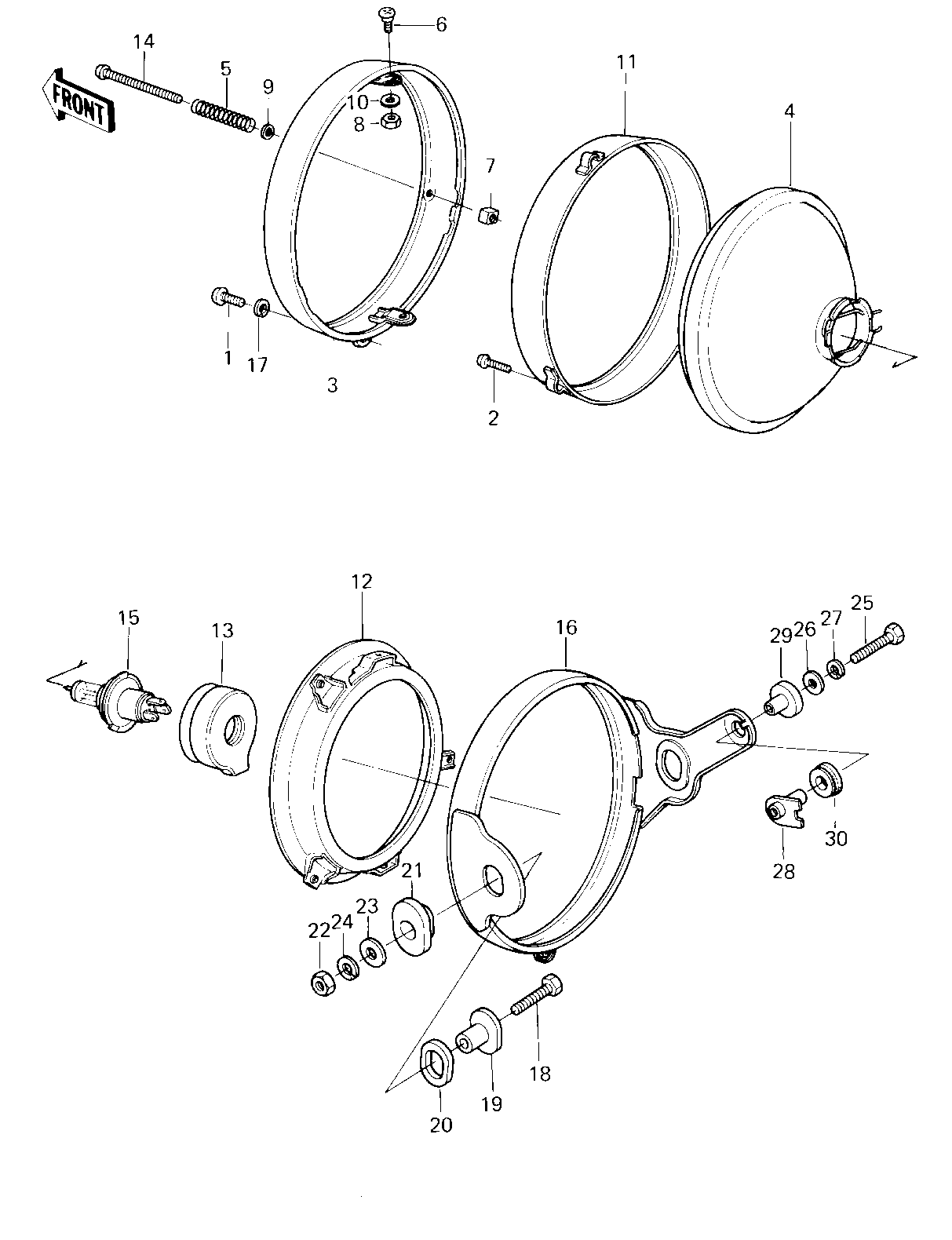

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW PAN HEAD 6X12 | 1 | 220B0612 | 1 | ||
| SCREW PAN HEAD 3X12 | 2 | 220B0312 | 2 | ||
| RIM,HEAD LAMP | 3 | 23006-1006 | 1 | ||
| LENS UNIT,HEAD LAMP | 4 | 23007-1009 | 1 | ||
| SPRING FOCUS ADJUST | 5 | 23014-005 | 1 | ||
| SCREW-PAN HEAD,5X12 | 6 | 23019-023 | 2 | ||
| NUT,4MM | 7 | 23020-018 | 1 | ||
| NUT,HEAD LAMP RIM FI | 8 | 23020-023 | 2 | ||
| WASHER | 9 | 23021-004 | 1 | ||
| WASHER-PLAIN,5MM | 10 | 23021-012 | 2 | ||
| RING,HEAD LAMP MOUNT | 11 | 23072-001 | 1 | ||
| RING,HEAD LAMP MOUNT | 12 | 23074-001 | 1 | ||
| DUST COVER | 13 | 49016-1016 | 1 | ||
| SCREW,FOCUS ADJU.4X5 | 14 | 92009-1033 | 1 | ||
| BULB,12V-60/55W | 15 | 92069-1002 | 1 | ||
| BODY,HEAD LAMP | 16 | 23005-1009 | 1 | ||
| WASHER SPRING 6MM | 17 | 461F0600 | 1 | ||
| BOLT-SMALL-FINE,10X4 | 18 | 113G1045 | 2 | ||
| COLLAR,HEAD LIGHT | 19 | 23052-011 | 2 | ||
| DAMPER RUBBER | 20 | 23066-021 | 2 | ||
| DAMPER RUBBER | 21 | 23066-022 | 2 | ||
| NUT 10MM | 22 | 315B1000 | 2 | ||
| WASHER PLAIN 10MM | 23 | 411B1000 | 2 | ||
| WASHER SPRING 10MM | 24 | 461F1000 | 2 | ||
| BOLT 6X35 | 25 | 110R0635 | 1 | ||
| WASHER PLAIN 6MM | 26 | 411B0600 | 1 | ||
| WASHER SPRING 6MM | 27 | 461F0600 | 1 | ||
| NUT,HEAD LAMP FITTIN | 28 | 92015-1061 | 1 | ||
| COLLAR | 29 | 92027-1045 | 1 | ||
| DAMPER, HEAD LMP FIT | 30 | 92075-1123 | 1 |
