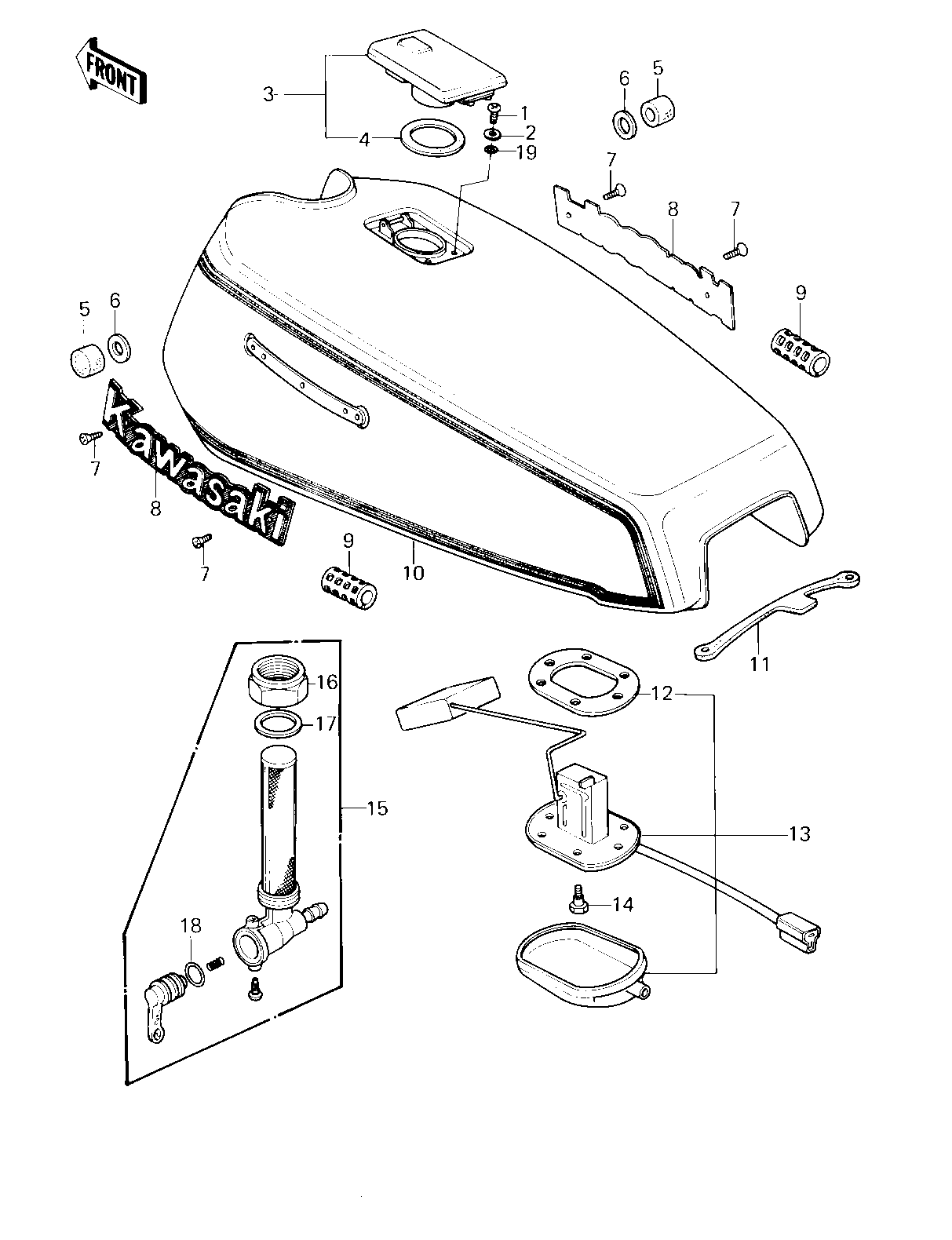

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW PAN HEAD 5X10 | 1 | 220B0510 | 2 | ||
| WASHER,PLAIN | 2 | 92022-1038 | 2 | ||
| CAP ASSY,FUEL TANK | 3 | 51048-1008 | 1 | ||
| GASKET,FUEL TANK CAP | 4 | 11009-1036 | 1 | ||
| DAMPER RUBBER,FL TAN | 5 | 92075-125 | 2 | FRONT | |
| WASHER-PL-10.5X26X2. | 6 | 92022-044 | 2 | ||
| SCREW-CSK-CROS | 7 | 221C0306 | 4 | ||
| EMBLEM,FUEL TANK | 8 | 56014-1037 | 2 | ||
| DAMPER RUBBER | 9 | 92075-084 | 2 | REAR | |
| TANK-FUEL,EBONY | 10 | 51001-1027-8G | 1 | ||
| BAND,FUEL TANK | 11 | 92072-042 | 1 | ||
| GASKET | 12 | 11009-1037 | 1 | ||
| GAGE,FUEL | 13 | 52005-1011 | 1 | ||
| BOLT,FUEL GAUGE FIT | 14 | 92001-1069 | 6 | 5 X 7.5 | |
| TAP ASSY,FUEL | 15 | 51023-1007 | 1 | ||
| FUEL COCK JOINT NUT | 16 | 51035-009 | 1 | ||
| GASKET-FUEL COCK JNT | 17 | 92065-081 | 1 | ||
| "0" RING, 10MM | 18 | 670B2010 | 1 | ||
| "0" RING | 19 | 92055-1023 | 2 |
