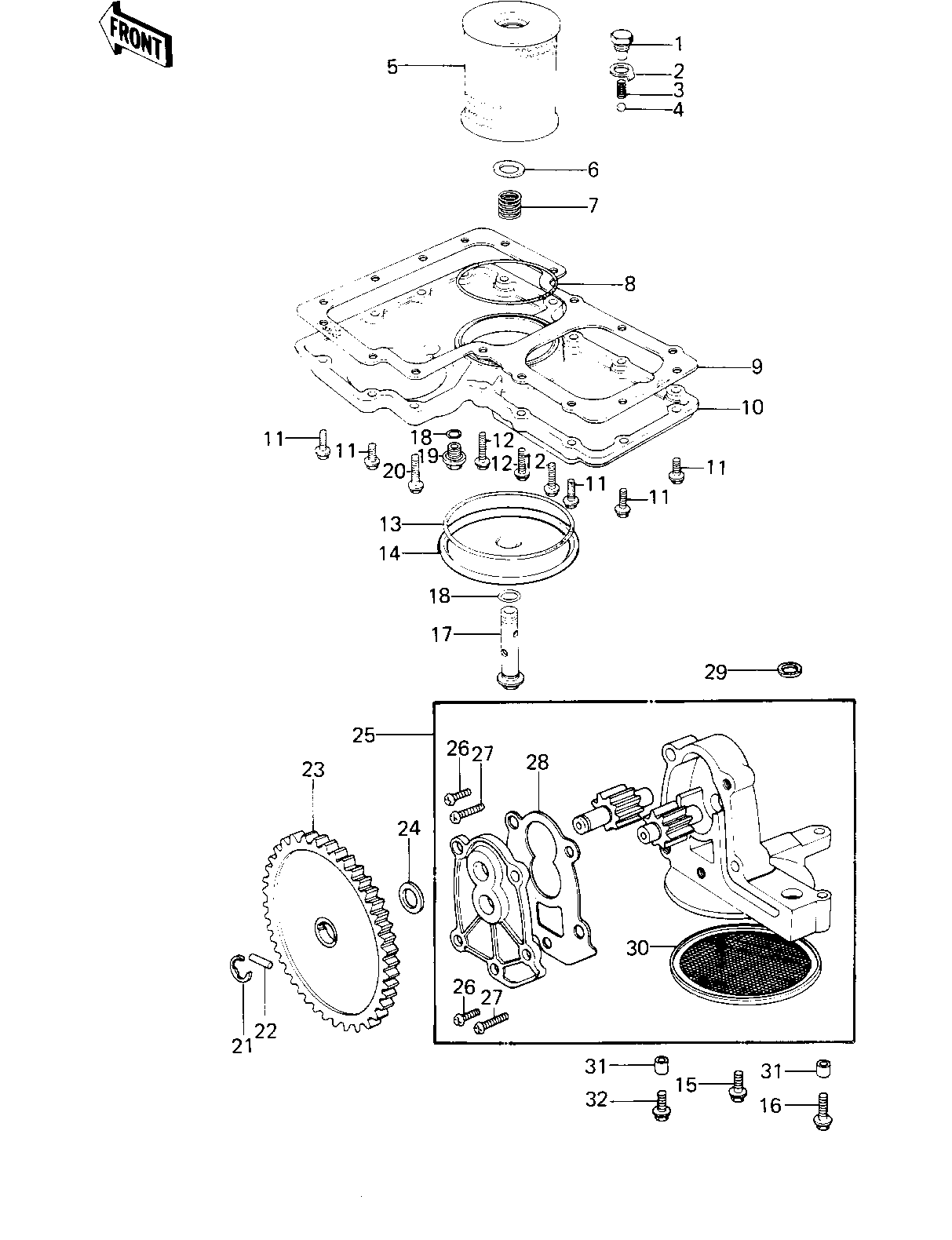

1980 Z1R - OIL PAN/OIL PUMP/OIL FILTER ('80 D3)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT 1 92003-095 1
WASHER,LOCK 2 92024-048 1
SPRING 3 92081-109 1
BALL STEEL 3/8' 4 600A1200 1
ELEMENT,OIL FILTER 5 16099-002 1
WASHER,20.5X30X1.0 6 92022-1012 1
SPRING,OIL FILTER 7 92081-1018 1
"O" RING,91MM 8 92055-052 1
GASKET,OIL PAN 9 11060-1074 1
PAN-OIL 10 49034-5020 1
BOLT,FLANGED,6X25 11 130G0625 13
BOLT,FLANGED,6X25 12 130G0625 3
"0" RING,105MM 13 671B25105 1
COVER,OIL FILTER 14 14025-1112 1
BOLT,FLANGED,6X22 15 92001-1352 1
BOLT,HEX HEAD,6X45 16 92001-165 1
BOLT,OIL FILTER 17 92001-1074 1
"O" RING,22MM 18 670B2022 2
PLUG,OIL DRAIN 19 92001-1183 1
BOLT-FLANGED,6X50 20 130G0650 1
CIRCLIP,7MM 21 482K7000 1
PIN,DOWEL,3X14 22 551A0314 1
GEAR,OIL PUMP 49T 23 16085-019 1
WASHER,LOCK,16MM 24 92026-080 1
PUMP-ASSY-OIL 25 16082-5001 1
SCREW PAN HEAD 6X18 26 220B0618 3
SCREW PAN HEAD 6X28 27 220B0628 2
GASKET,OIL PUMP 28 11009-1029 1
O RING,0.D=18MM 29 92055-048 1
STRAINER,OIL PUMP 30 16111-004 1
PIN,DOWEL,8X10 31 92043-1302 2
BOLT,HEX HEAD,6X35 32 92001-164 1
