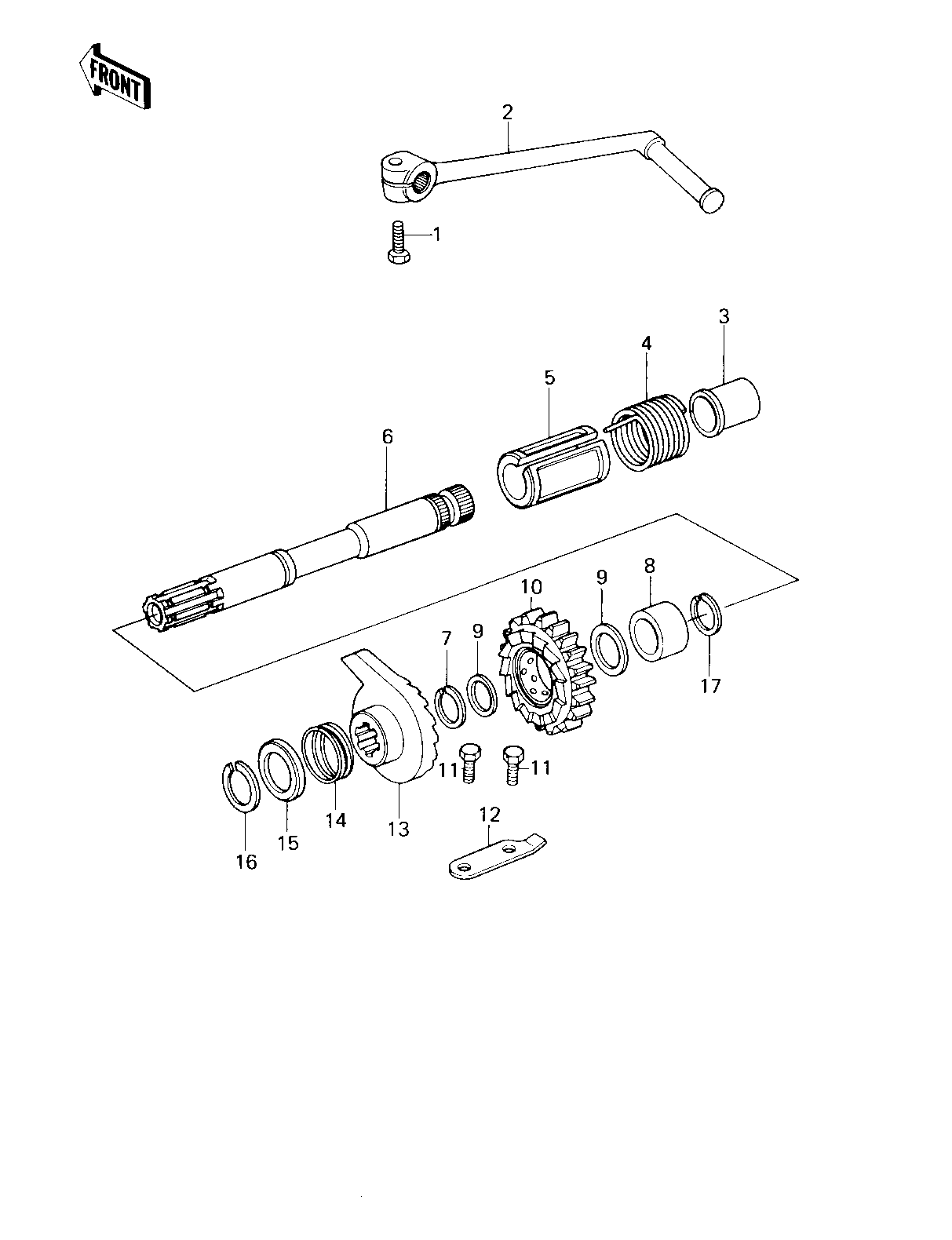

1980 Z1R - KICKSTARTER MECHANISM ('80 D3)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT,HEX HEAD,10X25 | 1 | 113G1025 | 1 | ||
| LEVER ASSY,KICK | 2 | 13059-1006 | 1 | ||
| PLUG | 3 | 92074-037 | 1 | ||
| SPRING,KICKSTARTER | 4 | 92082-004 | 1 | ||
| GUID,KICK SPRING | 5 | 13070-1008 | 1 | ||
| SHAFT,KICKSTARTER | 6 | 13066-1004 | 1 | ||
| CIRCLIP,25MM | 7 | 92033-025 | 1 | ||
| COLLAR,KICKSHAFT | 8 | 92028-126 | 1 | ||
| WASHER,PLAIN,22MM | 9 | 92022-207 | 2 | ||
| GEAR,KICKSTARTER | 10 | 59051-1006 | 1 | ||
| BOLT-UPSET | 11 | 112G0614 | 2 | ||
| STOPPER,KICKSTARTER | 12 | 13072-012 | 1 | ||
| RATCHET,KICK SHAFT | 13 | 13078-011 | 1 | ||
| SPRING RATCHET | 14 | 92081-104 | 1 | ||
| CAP,KICKSTARTER | 15 | 92102-008 | 1 | ||
| CIRCLIP,19MM | 16 | 480J1900 | 1 | ||
| CIRCLIP,22MM | 17 | 480J2200 | 1 |
| BOLT,HEX HEAD,10X25 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER ASSY,KICK | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,KICKSTARTER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUID,KICK SPRING | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,KICKSTARTER | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,25MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,KICKSHAFT | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,22MM | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GEAR,KICKSTARTER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| STOPPER,KICKSTARTER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RATCHET,KICK SHAFT | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING RATCHET | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,KICKSTARTER | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,19MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP,22MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
