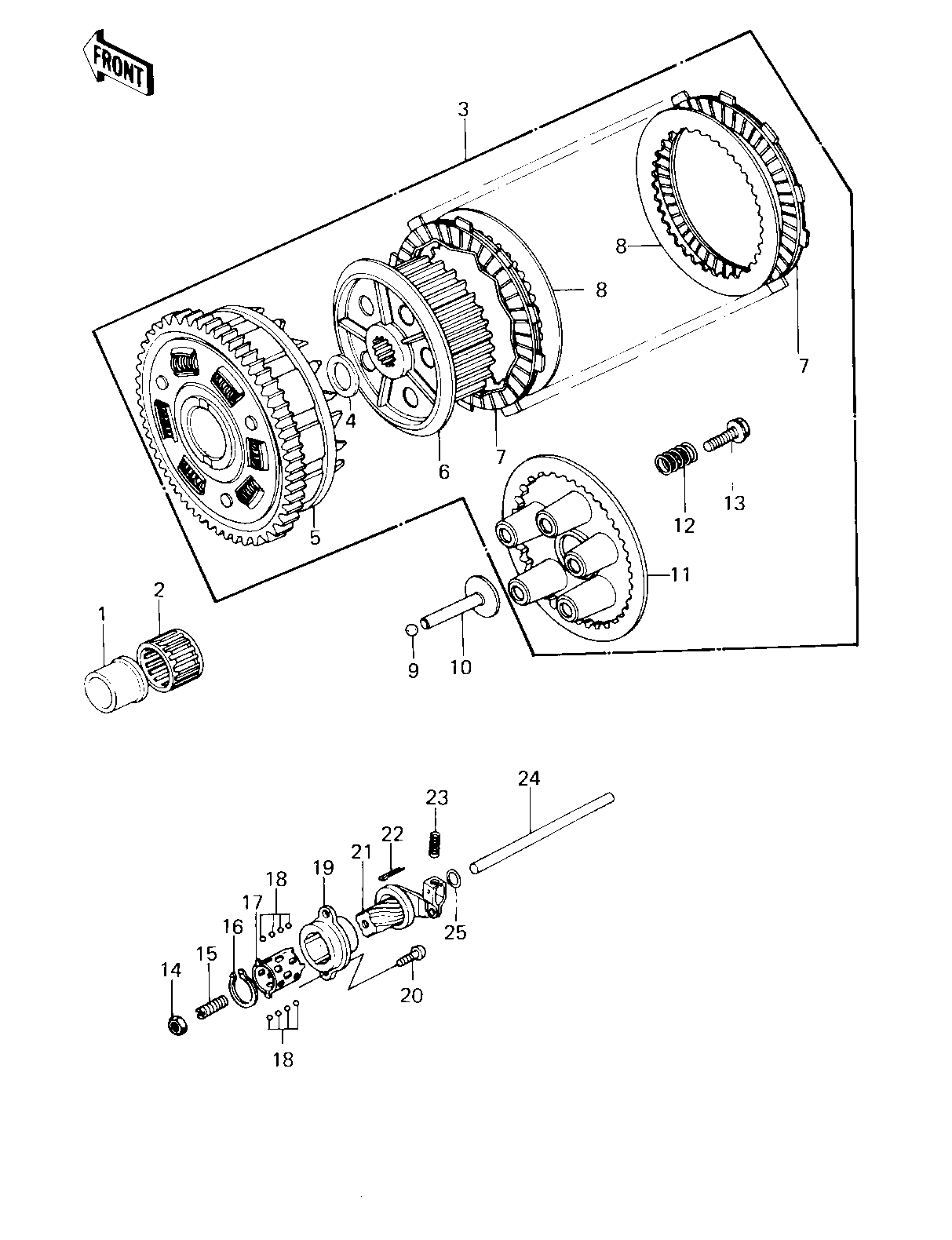

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BUSHING,CLUTCH | 1 | 92028-135 | 1 | ||
| BEARING,KTV323723 | 2 | 92046-028 | 1 | KTV32372 | |
| CLUTCH-ASSY | 3 | 13081-1014 | 1 | ||
| WASHER TH 25.5X47X2. | 4 | 92026-022 | 1 | ||
| CLUTCH-ASSY | 5 | 13081-1367 | 1 | ||
| CLUTCH-ASSY | 6 | 13081-1367 | 1 | ||
| PLATE,CLUTCH FRICTIO | 7 | 13088-030 | 8 | ||
| PLATE,CLUTCH STEEL | 8 | 13089-022 | 7 | ||
| BALL STEEL 3/8' | 9 | 600A1200 | 1 | ||
| PUSHER,CLUTCH SPRG P | 10 | 13116-022 | 1 | ||
| PLATE,CLUTCH SPRING | 11 | 13187-006 | 1 | ||
| SPRING,CLUTCH | 12 | 92081-1033 | 5 | ||
| BOLT,CLUTCH SPR FITT | 13 | 92001-1066 | 5 | ||
| NUT 8MM | 14 | 318B0800 | 1 | ||
| SCREW,SLOTTED,8X25 | 15 | 92014-014 | 1 | ||
| CIRCLIP 15MM | 16 | 480J1500 | 1 | ||
| RETAINER | 17 | 13197-004 | 1 | ||
| BALL,STEEL,1/8" | 18 | 600A0400 | 11 | ||
| OUTER,CLUTCH RELEASE | 19 | 13118-011 | 1 | ||
| SCREW PAN HEAD 6X16 | 20 | 220B0616 | 2 | ||
| INNER,CLUTCH RELEASE | 21 | 13102-019 | 1 | ||
| PIN COTTER 1.6X15 | 22 | 550D1615 | 1 | ||
| SPRING-CLUTCH RELEAS | 23 | 92081-069 | 1 | ||
| PUSH ROD,CLUTCH | 24 | 13116-021 | 1 | ||
| "O" RING,7MM | 25 | 670B1507 | 1 |
