Parts Diagrams |

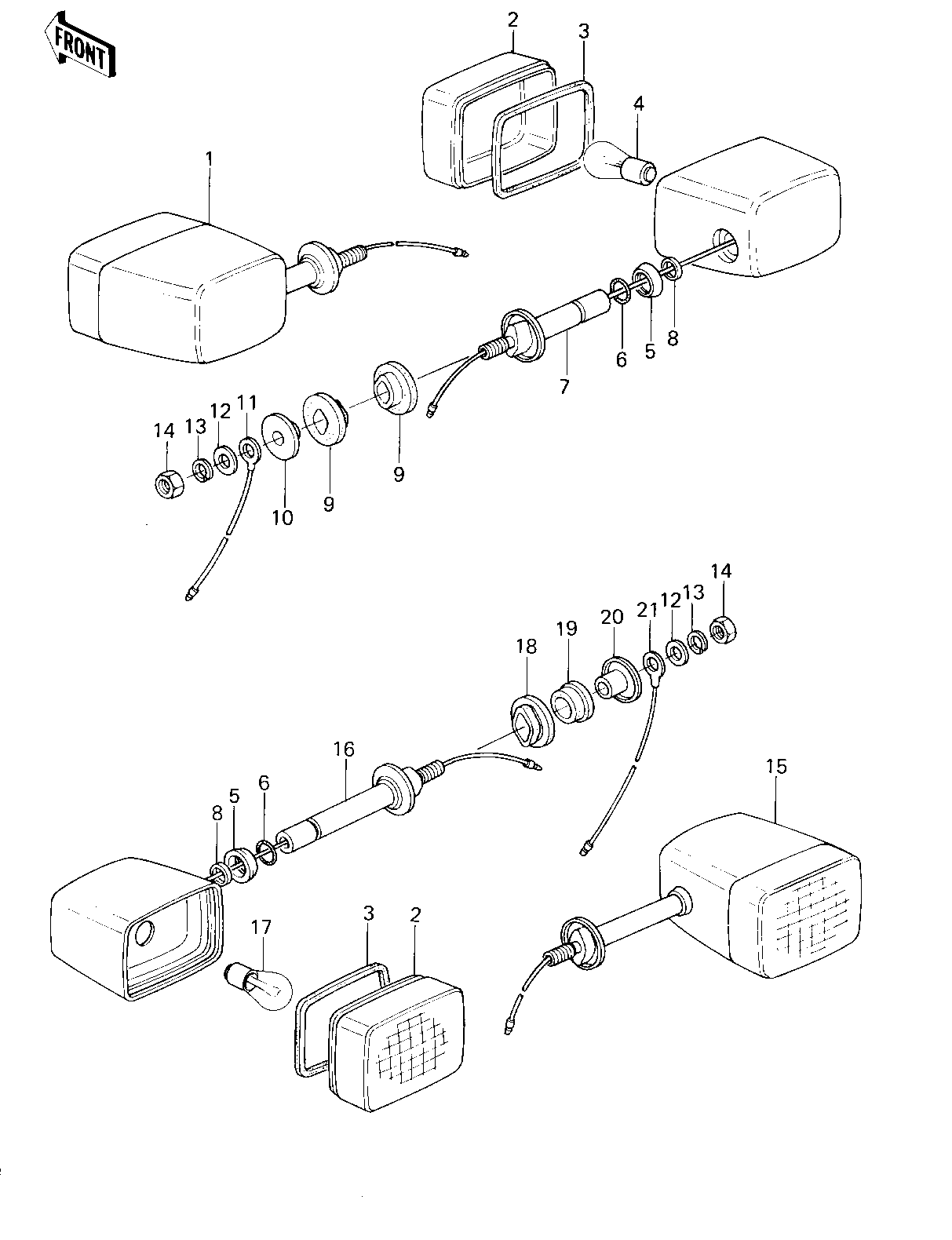

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| LAMP ASSY,FR TURN SI | 1 | 23037-1030 | 2 | FRONT | |
| LENS,TURN SIGNAL | 2 | 23048-1009 | 4 | ||
| GASKET,TURN SIG LAMP | 3 | 11009-1034 | 4 | ||
| BULB,12V 23/8W | 4 | 92069-060 | 2 | ||
| RING | 5 | 43058-1002 | 4 | ||
| "O" RING,12MM | 6 | 670B2012 | 4 | ||
| BRACKET,TRN SIG FRON | 7 | 23051-1010 | 2 | FRONT | |
| GASKET,SIGNAL LAMP | 8 | 11009-1048 | 4 | ||
| DAMPER,TURN SIG FITT | 9 | 92075-1014 | 4 | ||
| COLLAR | 10 | 92027-1059 | 2 | ||
| LEAD WIRE,SIGNAL LAM | 11 | 26011-063 | 2 | ||
| WASHER,PLAIN | 12 | 92022-239 | 4 | ||
| WASHER SPRING 10MM | 13 | 461F1000 | 4 | ||
| NUT 10MM | 14 | 315B1000 | 4 | ||
| LAMP ASSY,RR TURN SI | 15 | 23037-1031 | 2 | REAR | |
| BRACKET,TRN SIG REAR | 16 | 23051-1011 | 2 | REAR | |
| BULB 12V 32CP | 17 | 92069-055 | 2 | ||
| DAMPER RUBBER | 18 | 92075-128 | 2 | ||
| DAMPER RUBBER,SIG LM | 19 | 92075-158 | 2 | ||
| COLLAR | 20 | 92027-147 | 2 | ||
| WIRE,LEAD | 21 | 26011-095 | 2 |
| LAMP ASSY,FR TURN SI | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | FRONT |
| LENS,TURN SIGNAL | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| GASKET,TURN SIG LAMP | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BULB,12V 23/8W | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| "O" RING,12MM | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BRACKET,TRN SIG FRON | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | FRONT |
| GASKET,SIGNAL LAMP | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DAMPER,TURN SIG FITT | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| LEAD WIRE,SIGNAL LAM | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| LAMP ASSY,RR TURN SI | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | REAR |
| BRACKET,TRN SIG REAR | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | REAR |
| BULB 12V 32CP | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,SIG LM | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WIRE,LEAD | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
