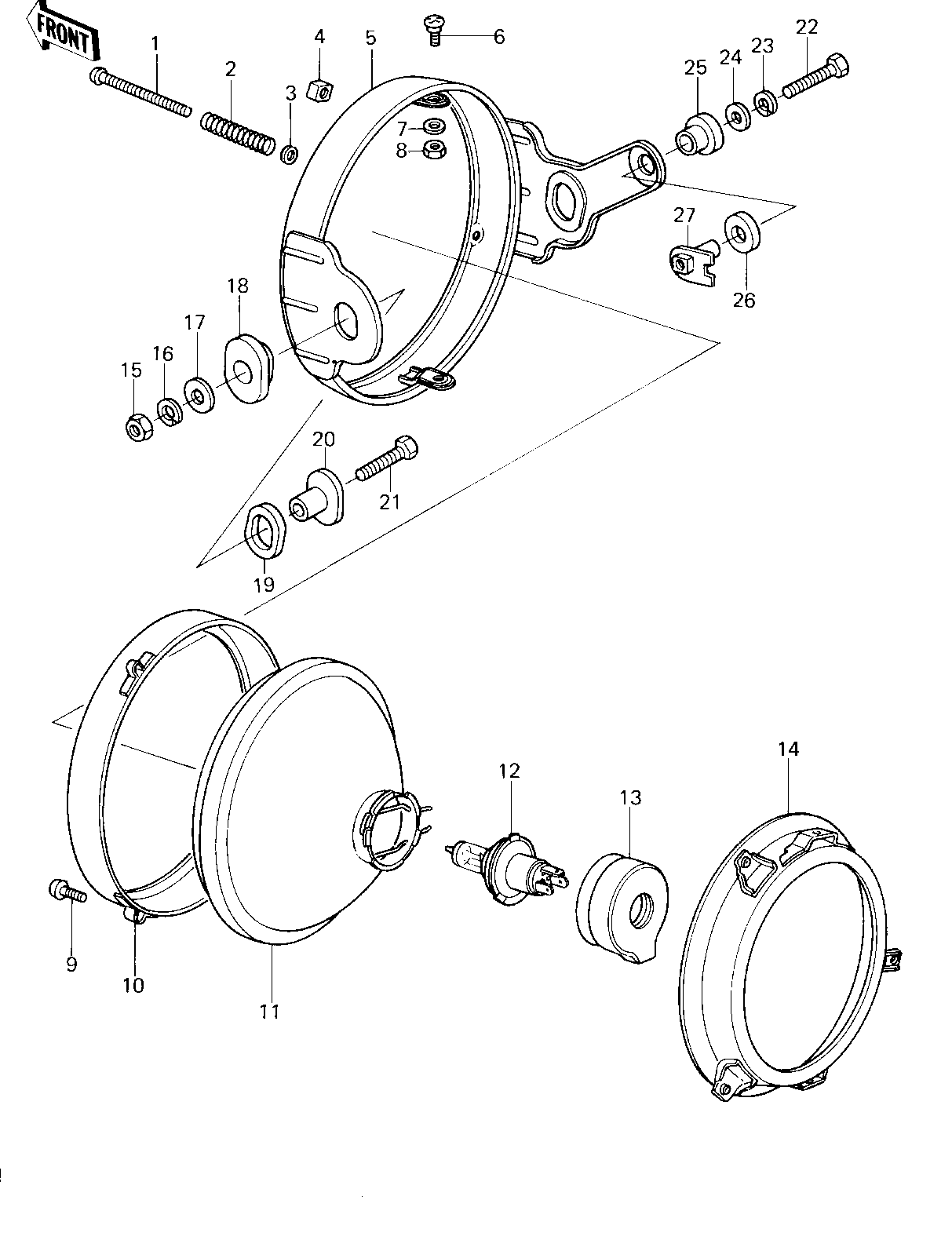

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW,FOCUS ADJU.4X5 | 1 | 92009-1033 | 1 | ||
| SPRING FOCUS ADJUST | 2 | 23014-005 | 1 | ||
| WASHER | 3 | 23021-004 | 1 | ||
| NUT,4MM | 4 | 23020-018 | 1 | ||
| RIM,HEAD LAMP | 5 | 23006-1003 | 1 | ||
| SCREW-PAN HEAD,5X12 | 6 | 23019-023 | 2 | ||
| WASHER-PLAIN,5MM | 7 | 23021-012 | 2 | ||
| NUT,HEAD LAMP RIM FI | 8 | 23020-023 | 2 | ||
| SCREW PAN HEAD 3X12 | 9 | 220B0312 | 2 | ||
| RING,HEAD LAMP MOUNT | 10 | 23072-001 | 1 | ||
| LENS UNIT,HEAD LAMP | 11 | 23007-1009 | 1 | ||
| BULB,12V-60/55W | 12 | 92069-1002 | 1 | PHILIPS (H4 12342 | |
| DUST COVER | 13 | 49016-1016 | 1 | ||
| RING,HEAD LAMP MOUNT | 14 | 23074-001 | 1 | ||
| NUT 10MM | 15 | 315B1000 | 2 | ||
| WASHER SPRING 10MM | 16 | 461F1000 | 2 | ||
| WASHER PLAIN 10MM | 17 | 411B1000 | 2 | ||
| DAMPER RUBBER | 18 | 23066-022 | 2 | ||
| DAMPER RUBBER | 19 | 23066-021 | 2 | ||
| COLLAR,HEAD LIGHT | 20 | 23052-011 | 2 | ||
| BOLT-SMALL-FINE,10X4 | 21 | 113G1045 | 2 | ||
| BOLT 6X35 | 22 | 110R0635 | 1 | ||
| WASHER SPRING 6MM | 23 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 24 | 411B0600 | 1 | ||
| DAMPER,TAIL LAMP | 25 | 92075-1004 | 1 | ||
| DAMPER RUBBER,SIGNAL | 26 | 92075-310 | 1 | ||
| NUT,HEAD LAMP FITTIN | 27 | 92015-1024 | 1 |
| SCREW,FOCUS ADJU.4X5 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING FOCUS ADJUST | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,4MM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RIM,HEAD LAMP | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN HEAD,5X12 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-PLAIN,5MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,HEAD LAMP RIM FI | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 3X12 | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| RING,HEAD LAMP MOUNT | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LENS UNIT,HEAD LAMP | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BULB,12V-60/55W | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | PHILIPS (H4 12342 |
| DUST COVER | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,HEAD LAMP MOUNT | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 10MM | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 10MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR,HEAD LIGHT | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT-SMALL-FINE,10X4 | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT 6X35 | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER,TAIL LAMP | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,SIGNAL | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,HEAD LAMP FITTIN | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
