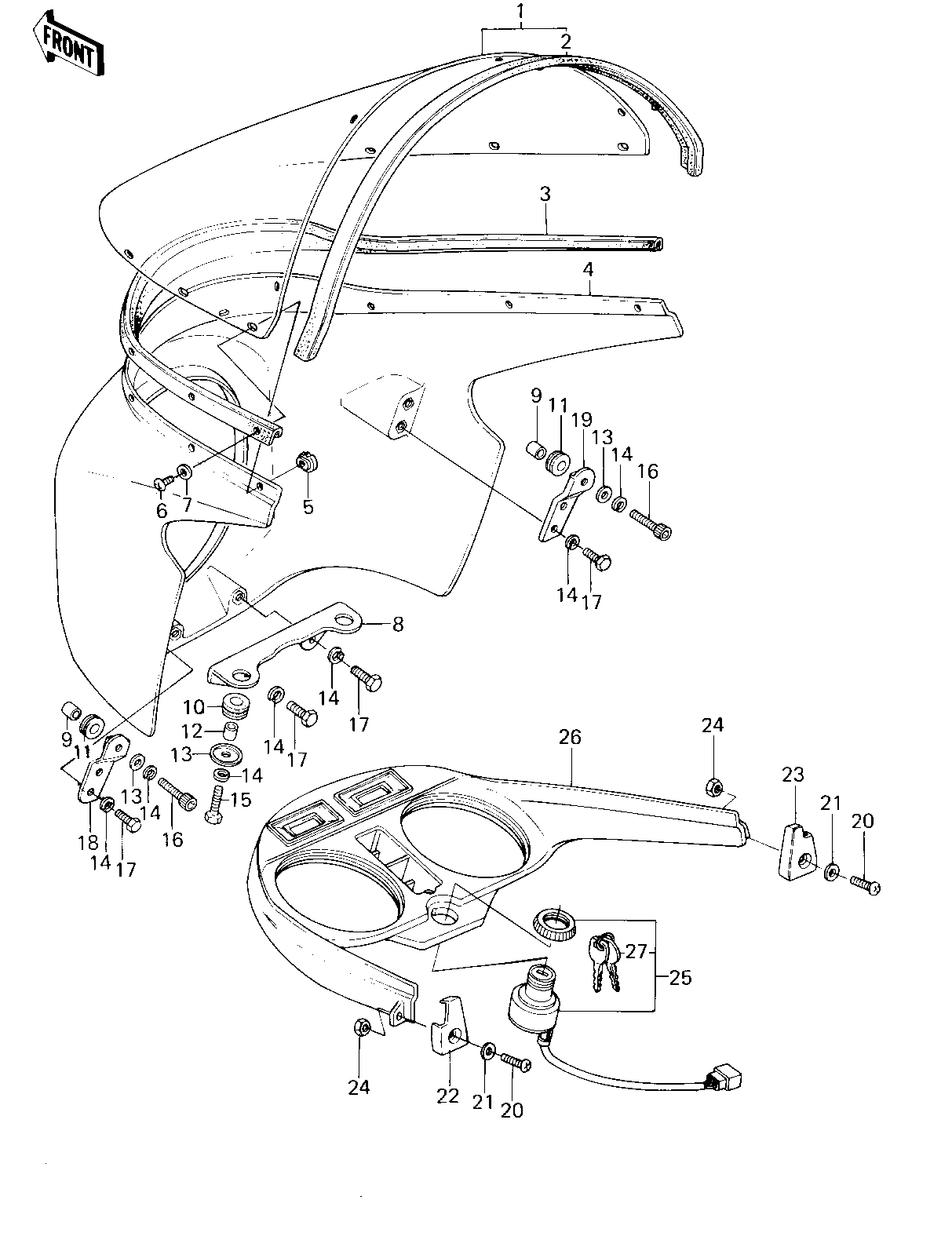

1978 Z1R - FAIRING/IGNITION SWITCH ('78 D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
WINDSHIELD 1 39155-1001 1
TRIM 2 53044-1003 1
TRIM 3 53044-1002 1
COWLING,M.S.SILVER 4 55028-1001-7W 1
NUT,5M/M 5 92015-1025 8
SCREW-PAN-CROS,5X12, 6 220C0512 8
WASHER,PLAIN 7 92022-1038 8 O.D. = 11 M
BRACKET,LOWER 8 11034-1124 1
COLLAR 9 92027-241 2
GROMMET 10 92071-1011 2 LOWER
GROMMET 11 92071-1010 2 UPPER
COLLAR 6.8X10X10.5 12 92027-120 2
WASHER,PLAIN,6MM 13 92022-286 4
WASHER SPRING 6MM 14 461F0600 10
BOLT-UPSET,6X20 15 112G0620 2
BOLT,6X25 16 120P0625 2
BOLT-UPSET 6X14 17 112B0614 6
BRACKET,L.H.UPPER 18 11034-1122 1 UPPER
BRACKET,R.H.UPPER 19 11034-1123 1 UPPER
SCREW PAN HEAD 5X12 20 220B0512 2
WASHER PLAIN 5MM 21 410B0500 2
CAP,L.H. 22 11012-1025 1
CAP,R.H. 23 11012-1026 1
NUT,5M/M 24 92015-1025 2
SWITCH ASSY,IGNITION 25 27005-5005 1
COVER,METER CASE 26 25023-1002 1
KEY SET,#801 27 27008-1004-01 1
KEY SET,#802 27 27008-1004-02 1
KEY SET,#803 27 27008-1004-03 1
KEY SET,#804 27 27008-1004-04 1
KEY SET,#805 27 27008-1004-05 1
KEY SET,#806 27 27008-1004-06 1
KEY SET,#807 27 27008-1004-07 1
KEY SET,#808 27 27008-1004-08 1
KEY SET,#809 27 27008-1004-09 1
KEY SET,#810 27 27008-1004-10 1
KEY SET,#811 27 27008-1004-11 1
KEY SET,#812 27 27008-1004-12 1
KEY SET,#813 27 27008-1004-13 1
KEY SET,#814 27 27008-1004-14 1
KEY SET,#815 27 27008-1004-15 1
KEY SET,#816 27 27008-1004-16 1
KEY SET,#817 27 27008-1004-17 1
KEY SET,#818 27 27008-1004-18 1
KEY SET,#819 27 27008-1004-19 1
KEY SET,#820 27 27008-1004-20 1
KEY SET,#821 27 27008-1004-21 1
KEY SET,#822 27 27008-1004-22 1
KEY SET,#823 27 27008-1004-23 1
KEY SET,#824 27 27008-1004-24 1
KEY SET,#825 27 27008-1004-25 1
KEY SET,#826 27 27008-1004-26 1
KEY SET,#827 27 27008-1004-27 1
KEY SET,#828 27 27008-1004-28 1
KEY SET,#829 27 27008-1004-29 1
KEY SET,#830 27 27008-1004-30 1
KEY SET,#831 27 27008-1004-31 1
KEY SET,#832 27 27008-1004-32 1
KEY SET,#833 27 27008-1004-33 1
KEY SET,#834 27 27008-1004-34 1
KEY SET,#835 27 27008-1004-35 1
KEY SET,#836 27 27008-1004-36 1
KEY SET,#837 27 27008-1004-37 1
KEY SET,#838 27 27008-1004-38 1
KEY SET,#839 27 27008-1004-39 1
KEY SET,#840 27 27008-1004-40 1
KEY SET,#841 27 27008-1004-41 1
KEY SET,#842 27 27008-1004-42 1
KEY SET,#843 27 27008-1004-43 1
KEY SET,#844 27 27008-1004-44 1
KEY SET,#845 27 27008-1004-45 1
