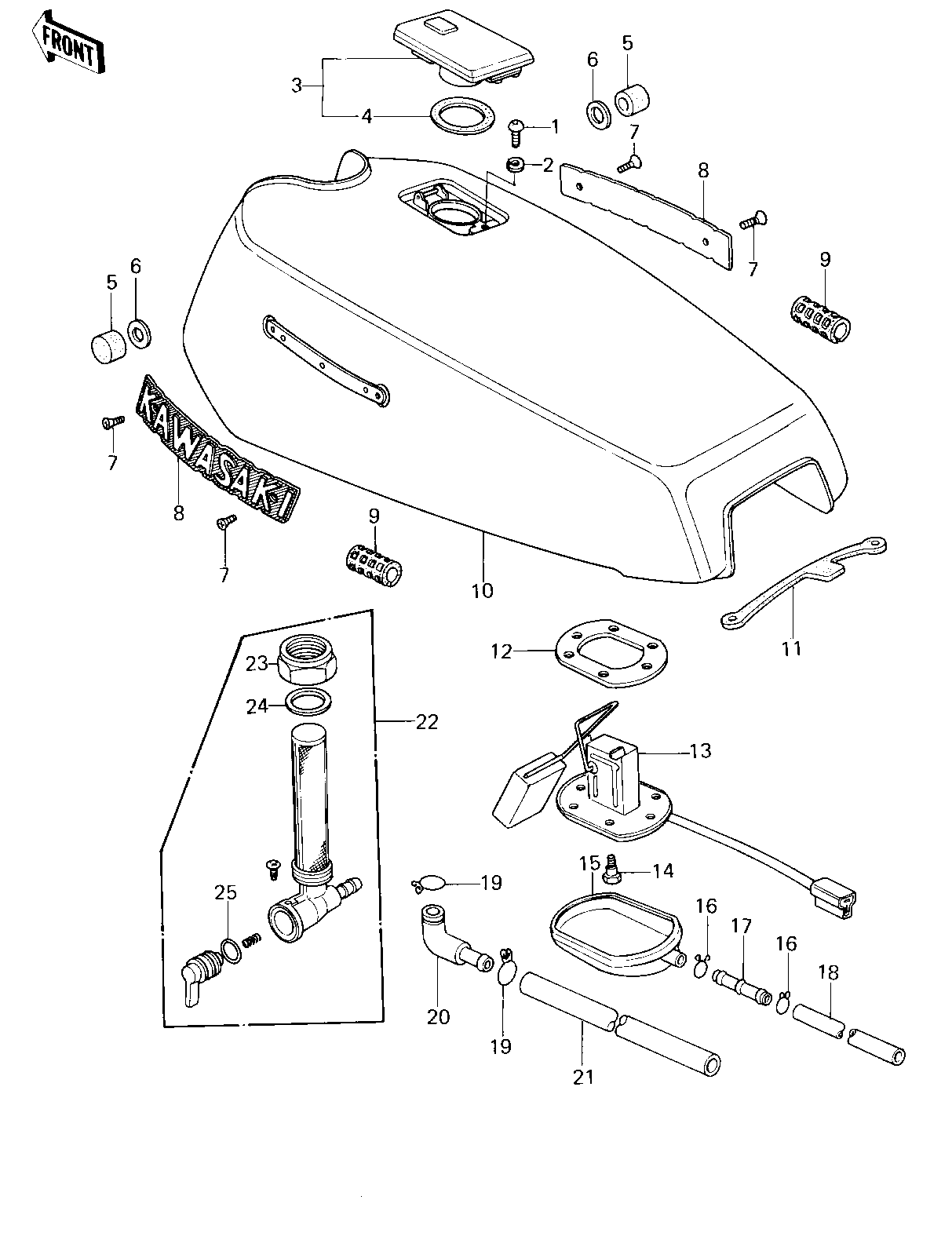

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW PAN HEAD 5X10 | 1 | 220B0510 | 1 | ||
| WASHER SPRING 5MM | 2 | 461F0500 | 1 | ||
| CAP ASSY,FUEL TANK | 3 | 51048-1002 | 1 | ||
| GASKET,FUEL TANK CAP | 4 | 11009-1036 | 1 | ||
| DAMPER RUBBER,FL TAN | 5 | 92075-125 | 2 | FRONT | |
| WASHER-PL-10.5X26X2. | 6 | 92022-044 | 2 | ||
| SCREW-CSK-CROS | 7 | 221C0306 | 4 | ||
| EMBLEM,FUEL TANK | 8 | 56014-1006 | 2 | ||
| DAMPER RUBBER | 9 | 92075-084 | 2 | REAR | |
| TANK-FUEL,M.S.SILVER | 10 | 51001-1009-7W | 1 | ||
| BAND,FUEL TANK | 11 | 92072-042 | 1 | ||
| GASKET | 12 | 11009-1037 | 1 | ||
| GAUGE,FUEL | 13 | 52005-1002 | 1 | ||
| BOLT,FUEL GAUGE FIT | 14 | 92001-1069 | 6 | 5 X 7 5 | |
| COVER | 15 | 14025-1019 | 1 | ||
| CLAMP,CHAIN OILER | 16 | 92037-147 | 2 | ||
| PIPE | 17 | 32032-1071 | 1 | ||
| TUBE-RUBBER | 18 | 702A07800 | 1 | ||
| CLAMP,RUBBER TUBE FI | 19 | 92037-1058 | 2 | ||
| ELBOW | 20 | 52014-1001 | 1 | ||
| TUBE-RUBBER | 21 | 703A09900 | 1 | ||
| TAP ASSY,FUEL | 22 | 51023-1007 | 1 | ||
| FUEL COCK JOINT NUT | 23 | 51035-009 | 1 | ||
| GASKET-FUEL COCK JNT | 24 | 92065-081 | 1 | ||
| "0" RING, 10MM | 25 | 670B2010 | 1 |
