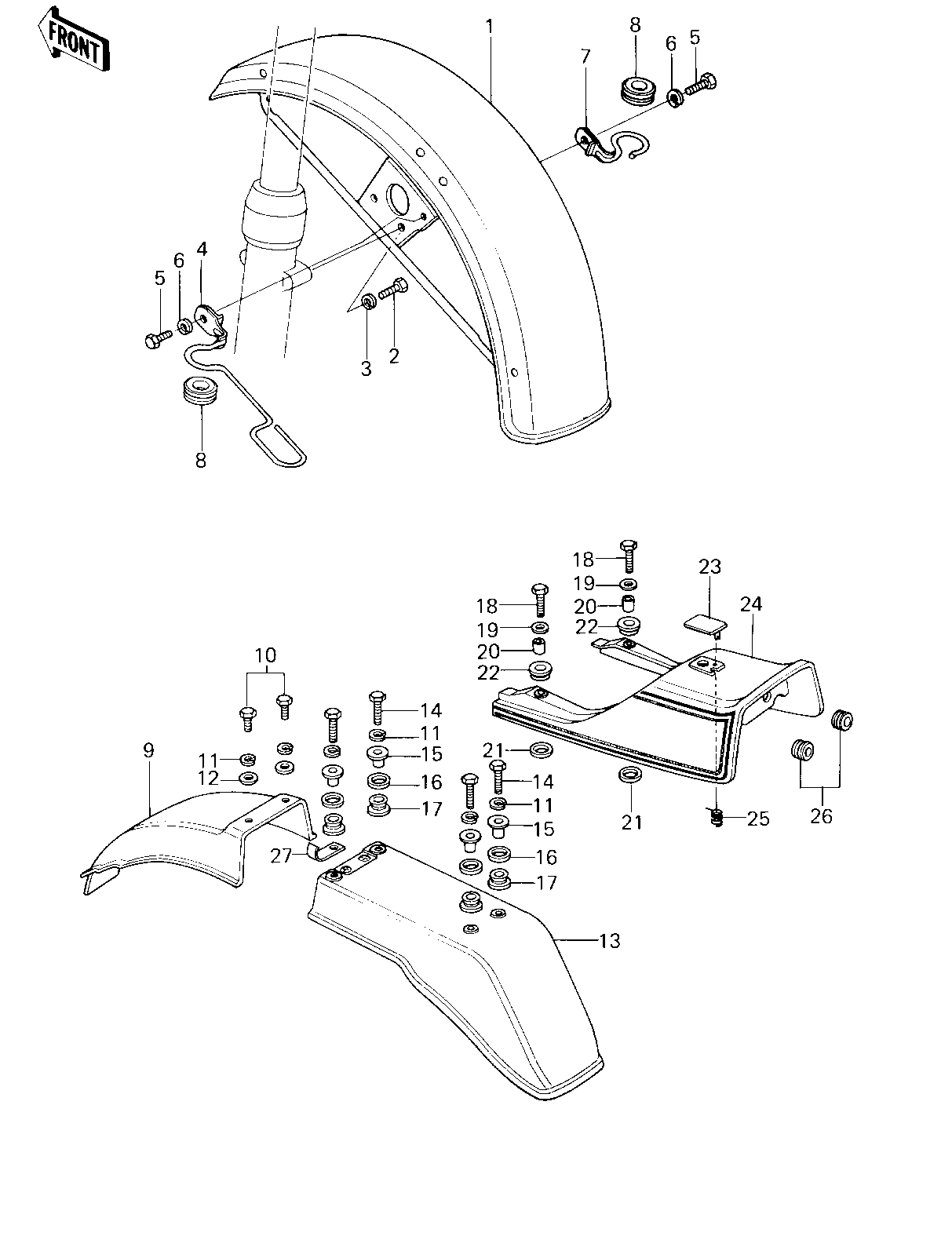

1978 Z1R - FENDERS/SEAT COVER ('78 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| FENDER-FR,M.S.SILVER | 1 | 35001-1021-7W | 1 | ||
| BOLT-SMALL-UPSET,8X1 | 2 | 115G0816 | 4 | ||
| WASHER SPRING 8MM | 3 | 461F0800 | 4 | ||
| CLAMP,CABLE | 4 | 92037-1116 | 1 | ||
| BOLT-UPSET,6X12 | 5 | 112G0612 | 2 | ||
| WASHER SPRING 6MM | 6 | 461F0600 | 2 | ||
| CLAMP,FRNT BRK HOSE | 7 | 92037-1054 | 1 | ||
| DAMPER RUBBER,CYL HS | 8 | 43064-006 | 2 | ||
| FENDER-RR | 9 | 35022-154 | 1 | FRONT | |
| BOLT-UPSET 6X14 | 10 | 112B0614 | 2 | ||
| WASHER SPRING 6MM | 11 | 461F0600 | 6 | ||
| WASHER PLAIN | 12 | 92022-024 | 2 | ||
| FENDER-RR | 13 | 35022-1040 | 1 | REAR | |
| BOLT-UPSET | 14 | 112G0630 | 4 | ||
| COLLAR | 15 | 92027-251 | 4 | ||
| DAMPER RUBBER | 16 | 92075-175 | 4 | ||
| RUBBER,FENDER COVER | 17 | 92075-174 | 4 | ||
| BOLT-UPSET | 18 | 112G0625 | 2 | ||
| WASHER,PLAIN,7MM | 19 | 92022-228 | 2 | ||
| COLLAR | 20 | 92027-241 | 2 | ||
| DAMPER RUBBER | 21 | 92075-175 | 2 | ||
| RUBBER,FENDER COVER | 22 | 92075-174 | 2 | ||
| COVER,SEAT LOCK | 23 | 14025-1025 | 1 | ||
| COVER,SEAT,M.S.SILVE | 24 | 14025-1018-7W | 1 | ||
| SPRING | 25 | 92081-1049 | 1 | ||
| DAMPER RUBB TANK FRN | 26 | 92075-013 | 2 | ||
| CLAMP,WIRING HARNESS | 27 | 21126-008 | 1 |
