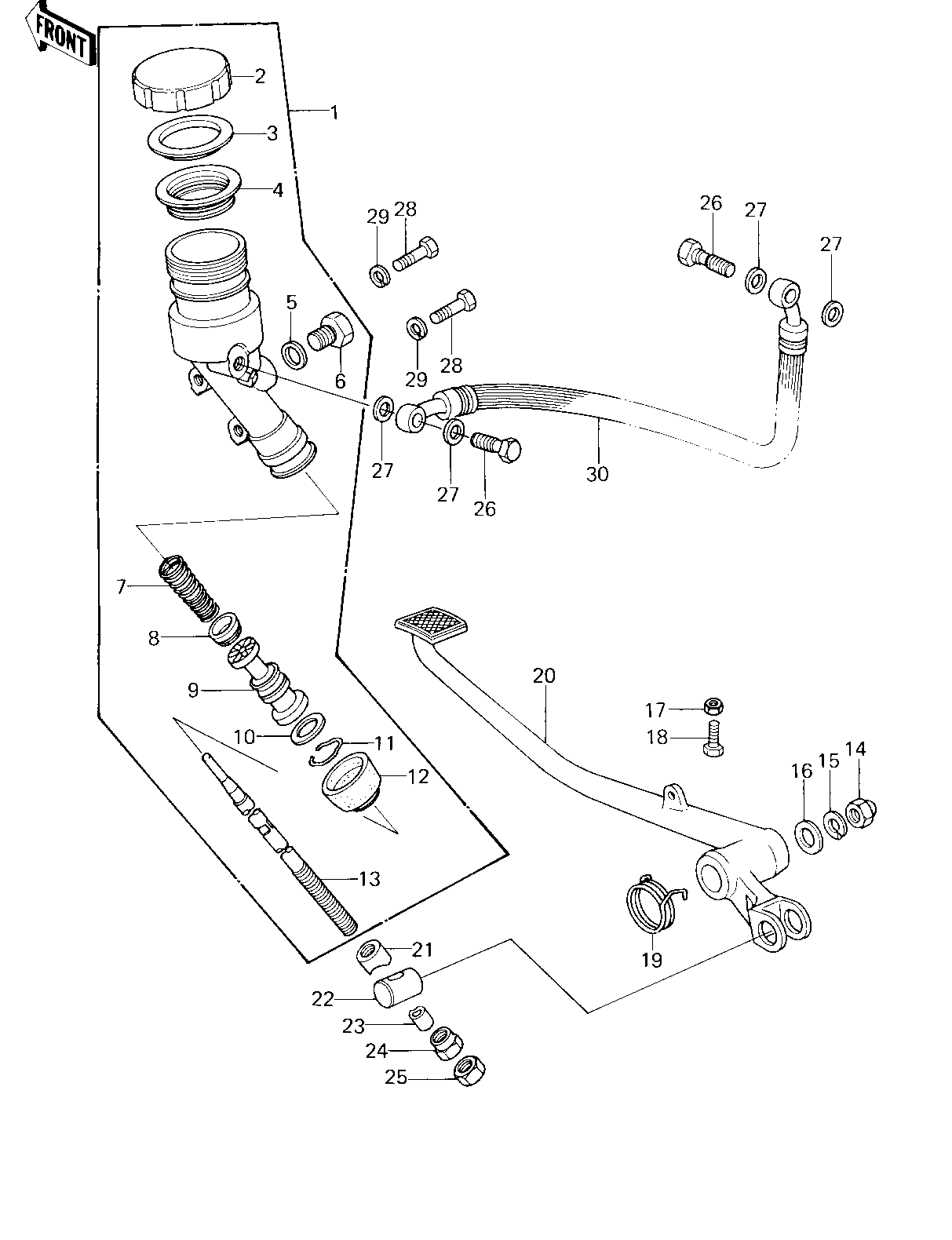

1978 Z1R - REAR MASTER CYLINDER/BRAKE PEDAL ('78 D1
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CYLINDER ASY,MAST,RR | 1 | 43015-1013 | 1 | ||
| CAP,OIL CUP | 2 | 43026-004 | 1 | ||
| PLATE-MASTER CYLINDE | 3 | 43027-001 | 1 | ||
| DIAPHRAGM | 4 | 43028-003 | 1 | ||
| 'O'RING | 5 | 43079-002 | 1 | ||
| BOLT | 6 | 92001-1073 | 1 | ||
| SPRING ASSY, RETURN | 7 | 43018-002 | 1 | ||
| CUP, PRIMARY | 8 | 43019-002 | 1 | ||
| PISTON ASSY | 9 | 43072-004 | 1 | ||
| STOPPER,PISTON | 10 | 43022-002 | 1 | ||
| RING,DUST SEAL | 11 | 43058-004 | 1 | ||
| DUST COVER | 12 | 43024-003 | 1 | ||
| ROD,BRAKE | 13 | 43011-1006 | 1 | ||
| NUT,CAP AND LOCK,8MM | 14 | 92019-013 | 1 | ||
| WASHER SPRING 8MM | 15 | 461F0800 | 1 | ||
| WASHER,8.5X20X1.6 | 16 | 92022-1561 | 1 | ||
| NUT 6MM | 17 | 311B0600 | 1 | ||
| BOLT-UPSET,6X20 | 18 | 112G0620 | 1 | ||
| SPRING,BRAKE PEDAL | 19 | 92081-1046 | 1 | ||
| PEDAL,BRAKE | 20 | 43001-1014 | 1 | ||
| COLLAR,BRAKE ROD | 21 | 92027-1065 | 1 | ||
| PIN,BRAKE ROD | 22 | 92043-1016 | 1 | ||
| COLLAR,BRAKE ROD | 23 | 92027-1065 | 1 | ||
| NUT,LOCK,10M/M | 24 | 92015-1027 | 1 | ||
| NUT 10MM | 25 | 315B1000 | 1 | ||
| BOLT,OIL,L=23 | 26 | 92002-1888 | 2 | ||
| WASHER-OIL BOLT | 27 | 43067-001 | 4 | ||
| BOLT,FLANGED,8X35 | 28 | 92001-1577 | 2 | ||
| WASHER SPRING 8MM | 29 | 461F0800 | 2 | ||
| HOSE,REAR MASTER | 30 | 43059-1006 | 1 |
| CYLINDER ASY,MAST,RR | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,OIL CUP | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE-MASTER CYLINDE | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DIAPHRAGM | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| 'O'RING | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING ASSY, RETURN | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CUP, PRIMARY | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PISTON ASSY | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER,PISTON | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| RING,DUST SEAL | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUST COVER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ROD,BRAKE | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP AND LOCK,8MM | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,8.5X20X1.6 | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 6MM | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X20 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,BRAKE PEDAL | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PEDAL,BRAKE | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,BRAKE ROD | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PIN,BRAKE ROD | |
| REF # | 22 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR,BRAKE ROD | |
| REF # | 23 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,10M/M | |
| REF # | 24 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT 10MM | |
| REF # | 25 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,OIL,L=23 | |
| REF # | 26 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER-OIL BOLT | |
| REF # | 27 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X35 | |
| REF # | 28 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 8MM | |
| REF # | 29 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOSE,REAR MASTER | |
| REF # | 30 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
