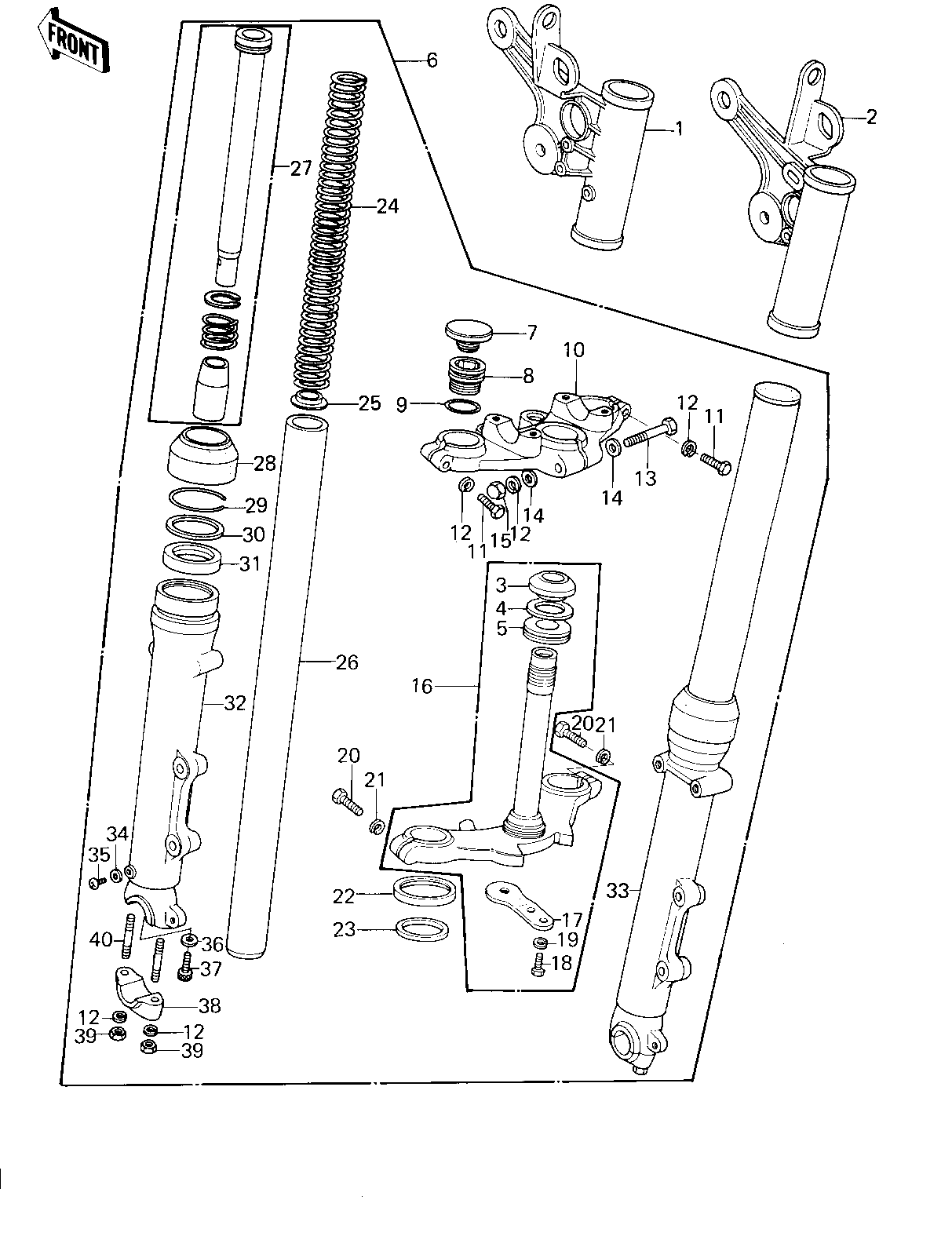

1978 Z1R - FRONT FORK ('78 D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,L.H.FORK 1 44033-1011 1 F. BLACK
COVER,R.H FORK 2 44033-1012 1 F. BLACK
CONE,STEERING STEM 3 92047-012 1
WASHER,PLAIN 4 92022-231 1
OIL SEAL,STEERING ST 5 92056-003 1
FORK-FRONT 6 44001-1024 1
CAP,RUBBER 7 11012-1017 2
CAP,FORK SPRING 8 44029-1003 2
"O" RING,FORK TOP 9 92055-1009 2
HEAD,STEERING STEM 10 44039-1005 1
BOLT,8X40 11 92001-1082 2
WASHER SPRING 8MM 12 461F0800 7
BOLT-STEERING STEM H 13 44041-042 1
WASHER PLAIN 8MM 14 410B0800 2
NUT FUEL TANK FRONT 15 92020-007 1
STEM,STEERING 16 44037-1008 1
BRACKET 17 11034-1126 2
BOLT,6X14 18 92001-1083 4
WASHER SPRING 6MM 19 461F0600 4
BOLT-HEX HEAD,12X36 20 92003-064 2
WASHER SPRING 12MM 21 461F1200 2
WASHER,FORK COVER 22 44043-049 2
GASKET,FORK COVER 23 44045-038 2
SPRING,FORK 24 44026-1003 2
GUIDE,FORK SPRING 25 44028-1001 2
TUBE,FORK INNER 26 44013-1003 2
CYLINDER-FORK 27 44022-1002 2
DUST SHEILD,FORK 28 44010-032 2
CIRCLIP-OIL SEAL FIT 29 44044-012 2
WASHER-OIL SEAL FIT 30 44043-044 2
OIL SEAL,FORK 31 44009-024 2
TUBE,LH,FORK OUTER 32 44005-1032 1
TUBE,RH,FORK OUTER 33 44006-1032 1
GASKET FORK DRAIN PL 34 44045-002 2
SCREW PAN HEAD 4X8 35 220B0408 2
GASKET,FORK CYLINDER 36 44045-057 2
BOLT-FORK CYLINDER 37 44041-040 2
HOLDER,FRONT AXLE 38 44063-014 2
NUT,LOCK,8MM 39 92017-013 4
STUD,8X35 40 92004-1009 4
