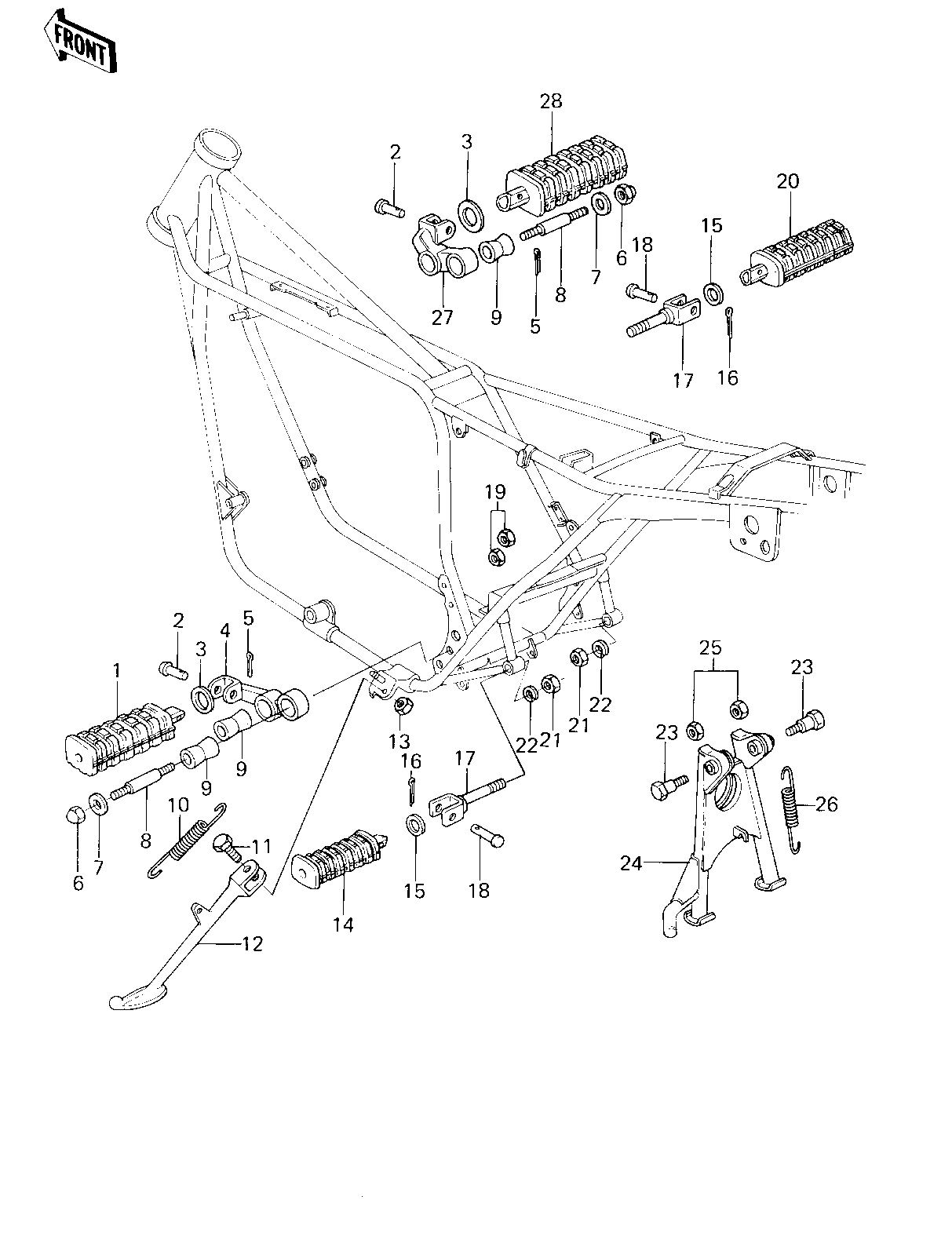

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| STEP,FOOTREST,FRONT, | 1 | 34028-1007 | 1 | ||
| PIN-FOOTREST BAR FIT | 2 | 92043-080 | 2 | ||
| WASHER,PLAIN | 3 | 92022-250 | 2 | ||
| BRACKET,FOOTREST,L.H | 4 | 34003-036 | 1 | ||
| PIN COTTER 2.5X16 | 5 | 550D2516 | 2 | ||
| NUT,CAP AND LOCK,8MM | 6 | 92019-013 | 4 | ||
| CAP,FOOTRESTBAR | 7 | 92102-010 | 4 | ||
| STUD,FOOTREST BAR FI | 8 | 92004-048 | 4 | ||
| DAMPER RUBBER,FOOTRS | 9 | 92075-140 | 4 | ||
| SPRING,SIDE STAND | 10 | 34025-005 | 1 | ||
| BOLT-SIDE STAND | 11 | 92003-079 | 1 | ||
| STAND-SIDE | 12 | 34024-1015 | 1 | ||
| NUT 10MM | 13 | 315B1000 | 1 | ||
| STEP,FOOTREST,REAR,L | 14 | 34028-1009 | 1 | ||
| WASHER-PLAIN | 15 | 92022-181 | 2 | ||
| PIN,COTTER,2.0X12 | 16 | 550D2012 | 2 | ||
| BRACKET,FOOTREST BAR | 17 | 34029-014 | 2 | ||
| PIN | 18 | 92043-1464 | 2 | ||
| NUT 10MM | 19 | 315B1000 | 4 | ||
| STEP,FOOTREST,REAR,R | 20 | 34028-1010 | 1 | ||
| NUT,10MM | 21 | 314B1000 | 2 | ||
| WASHER SPRING 10MM | 22 | 461F1000 | 2 | ||
| SHAFT MAIN STAND | 23 | 34019-014 | 2 | ||
| STAND-MAIN | 24 | 34011-1004 | 1 | ||
| NUT,MAIN STAND FITT | 25 | 92016-044 | 2 | ||
| SPRING,MAIN STAND | 26 | 34023-012 | 1 | ||
| BRACKET,FOOTREST,R.H | 27 | 34003-037 | 1 | ||
| STEP,FOOTREST,FRONT, | 28 | 34028-1008 | 1 |
