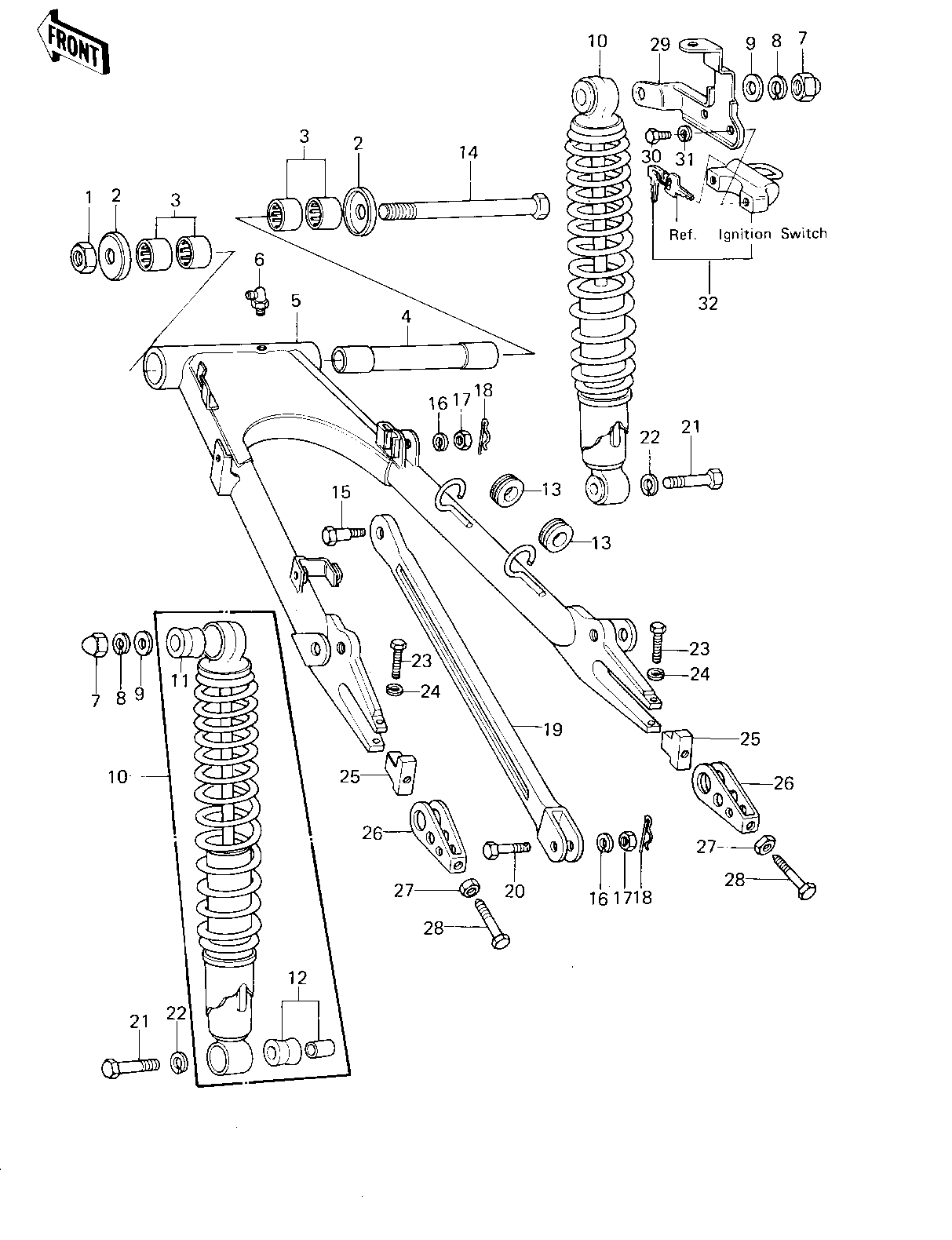

1978 Z1R - SWING ARM/SHOCK ABSORBERS ('78 D1)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
NUT-SELF LOCKING 1 92019-012 1
CAP,SWING ARM 2 33035-009 2
BEARING-NEEDLE,HK221 3 92046-1115 4
SLEEVE,SWING ARM 4 42036-1011 1
ARM,SWING 5 33001-1014 1 INCLUDES REF. NO'S MARKED*
GREASE NIPPLE 6 92005-002 1
NUT 12MM 7 92020-014 2
WASHER SPRING 12MM 8 461F1200 2
WASHER PLAIN 12MM 9 410B1200 2
SHOCK ABSBR RR 10 45014-1020 2
BUSHING,SHOCK ABSORB 11 45017-020 2
BUSHING,SHOCK ABSORB 12 45017-019 2
DAMPER RUBBER 13 43064-007 2
SHAFT,SWING ARM PIVO 14 33032-036 1
BOLT,HEX HEAD,10X39 15 92003-218 1
WASHER SPRING 10MM 16 461F1000 2
NUT,10MM 17 314B1000 2
PIN,SNAP 18 554A0800 2
TORQUE LINK,REAR HUB 19 43007-049 1
BOLT,10X47 20 92001-1145 1
BOLT HEX HEAD 10X35 21 113N1035 2
WASHER SPRING 10MM 22 461F1000 2
BOLT 23 110G0840 2 *
WASHER SPRING 8MM 24 461F0800 2 *
STOPPER,CHAIN ADJUST 25 33044-001 2 *
ADJUSTER,CHAIN 26 33040-066 2
NUT 10MM 27 315B1000 2
BOLT-CHN ADJUST 10MM 28 92001-143 2
BRACKET,HELMET LOCK 29 11034-1134 1
BOLT-UPSET 30 112G0516 2
WASHER SPRING 5MM 31 461F0500 2
LOCK ASSY,HELMET 32 27016-5007 1
