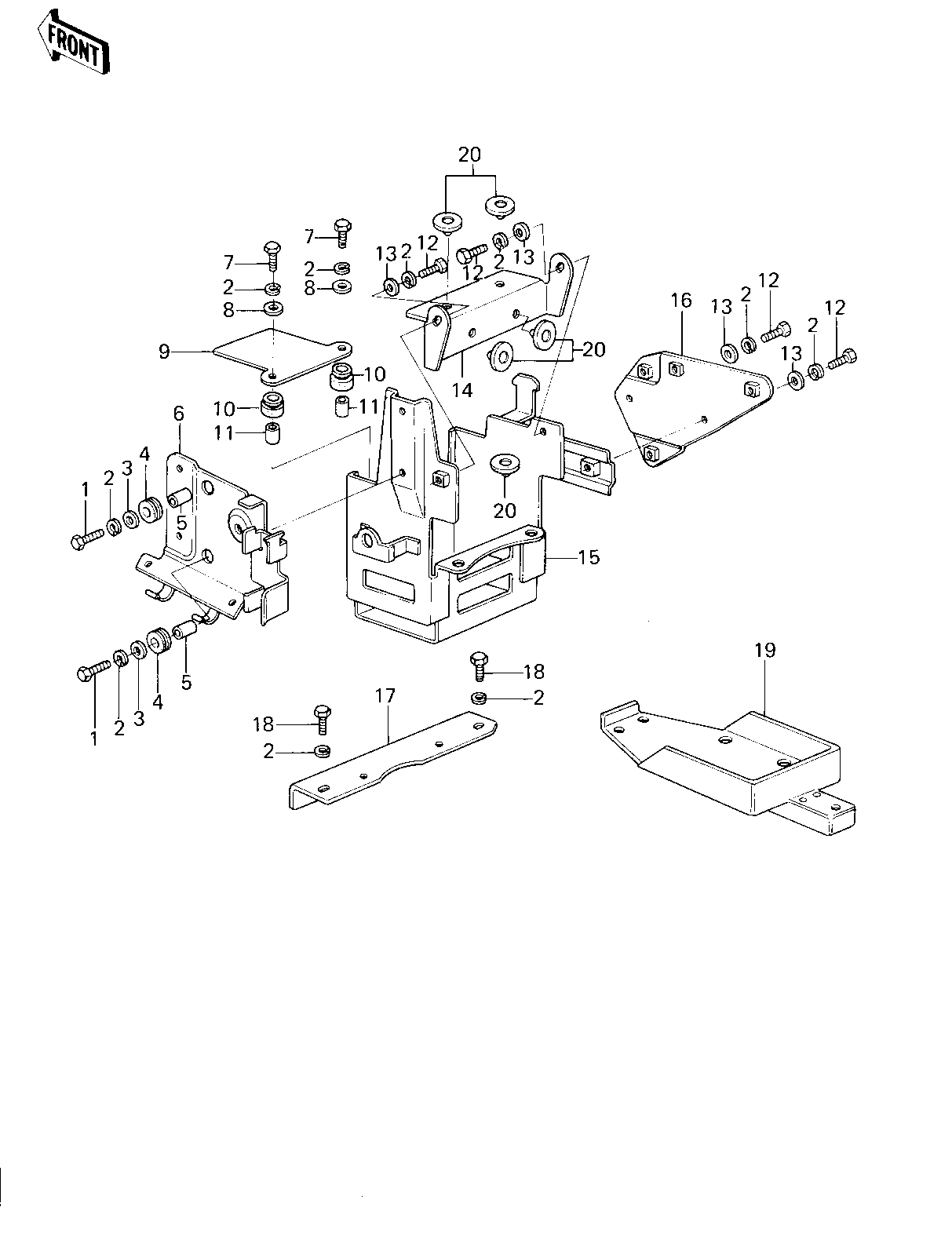

1978 Z1R - BATTERY CASE/ELECTRO BRACKET ('78 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-UPSET,6X20 | 1 | 112G0620 | 2 | ||
| WASHER SPRING 6MM | 2 | 461F0600 | 12 | ||
| WASHER 6.5X22X1.6T | 3 | 92022-237 | 2 | ||
| DAMPER RUBBER | 4 | 92075-149 | 2 | ||
| COLLAR | 5 | 92027-165 | 2 | ||
| BRACKET,BATTERY CASE | 6 | 11034-1133 | 1 | ||
| BOLT-UPSET | 7 | 112G0630 | 4 | ||
| WASHER,6.5X16X2 | 8 | 92022-1565 | 4 | ||
| STAY,AIR CLEANER | 9 | 32105-007 | 1 | ||
| DAMPER RUBBER,BTT CA | 10 | 92075-146 | 4 | ||
| COLLAR 6.8X10X14.5 | 11 | 92027-156 | 4 | ||
| BOLT-UPSET,6X12 | 12 | 112G0612 | 4 | ||
| WASHER PLAIN 6MM | 13 | 410B0600 | 4 | ||
| BAND,BATTERY | 14 | 32100-100 | 1 | ||
| CASE,BATTERY | 15 | 32097-1007 | 1 | ||
| BRACKET,BASE,R.H | 16 | 11034-1732 | 1 | ||
| PLATE,BATTERY CASE | 17 | 13169-1077 | 1 | ||
| BOLT-UPSET,6X16 | 18 | 112G0616 | 2 | ||
| CASE,TOOL | 19 | 32098-1001 | 1 | ||
| DAMPER RUBBER | 20 | 92075-078 | 10 |
| BOLT-UPSET,6X20 | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 12 |
| DESTINATION | |
| REMARKS | |
| WASHER 6.5X22X1.6T | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,BATTERY CASE | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X2 | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STAY,AIR CLEANER | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER,BTT CA | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| COLLAR 6.8X10X14.5 | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X12 | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| BAND,BATTERY | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CASE,BATTERY | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET,BASE,R.H | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,BATTERY CASE | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET,6X16 | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CASE,TOOL | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER RUBBER | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 10 |
| DESTINATION | |
| REMARKS | |
