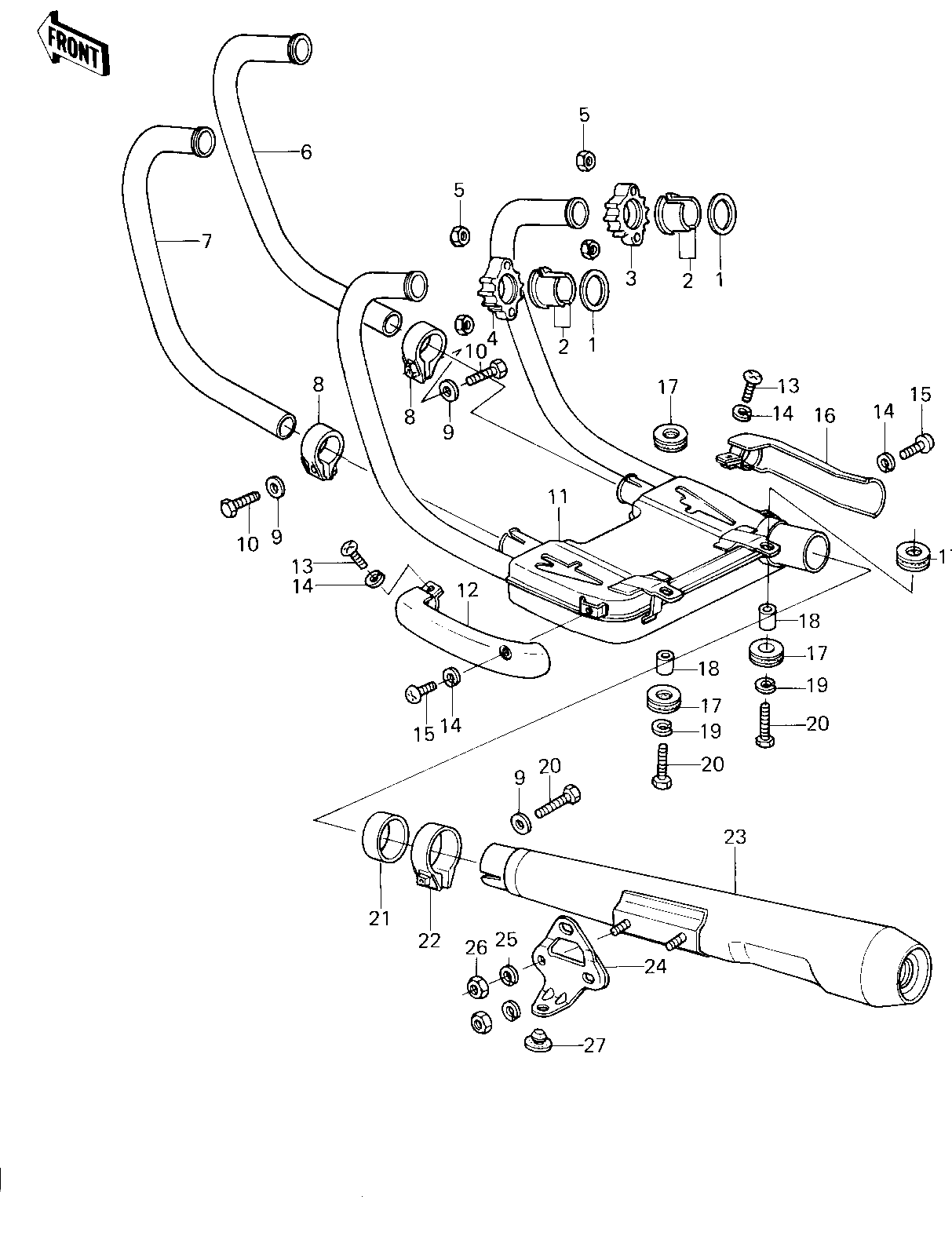

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE | 1 | 11009-1906 | 4 | ||
| INSERT,EXHAUST PIPE | 2 | 92027-170 | 8 | ||
| HOLDER,EXHAUST PIPE, | 3 | 18069-1004 | 2 | ||
| HOLDER,EXHAUST PIPE, | 4 | 18069-1005 | 2 | ||
| NUT,LOCK,8MM | 5 | 92017-013 | 8 | ||
| PIPE,EXHAUST,R.H.INN | 6 | 18049-1031 | 1 | ||
| PIPE,EXHAUST,L.H.INN | 7 | 18049-1030 | 1 | ||
| CLAMP,EXH PIPE CONNC | 8 | 92037-180 | 2 | ||
| WASHER PLAIN 8MM | 9 | 410B0800 | 3 | ||
| BOLT-SMALL-UPSET,8X3 | 10 | 115G0830 | 2 | ||
| BOX,MUFFLER CONNECTI | 11 | 49070-1006 | 1 | ||
| COVER,MUFFLER,L.H | 12 | 14025-1016 | 1 | ||
| SCREW PAN HEAD 6X20 | 13 | 220B0620 | 2 | ||
| WASHER-SPRING,6MM,BL | 14 | 461K0600 | 4 | ||
| SCREW-PAN-CROS,6X10, | 15 | 220C0610 | 2 | ||
| COVER,MUFFLER,R.H | 16 | 14025-1017 | 1 | ||
| DAMPER RUBBER | 17 | 92075-1042 | 4 | ||
| COLLAR | 18 | 92027-1064 | 2 | ||
| WASHER SPRING 8MM | 19 | 461F0800 | 2 | ||
| BOLT,FLANGED,8X35 | 20 | 92001-1577 | 3 | ||
| GASKET,MUFFLER CONNE | 21 | 11009-1035 | 1 | ||
| CLAMP,MUFFLER CONNEC | 22 | 92037-1055 | 1 | ||
| MUFFLER,R.H | 23 | 18002-1034 | 1 | ||
| BRACKET,MUFFLER | 24 | 32069-1016 | 1 | ||
| WASHER SPRING 8MM | 25 | 461F0800 | 2 | ||
| NUT,8MM | 26 | 311B0800 | 2 | ||
| DAMPER RUBB MAIN STA | 27 | 92075-015 | 1 |
