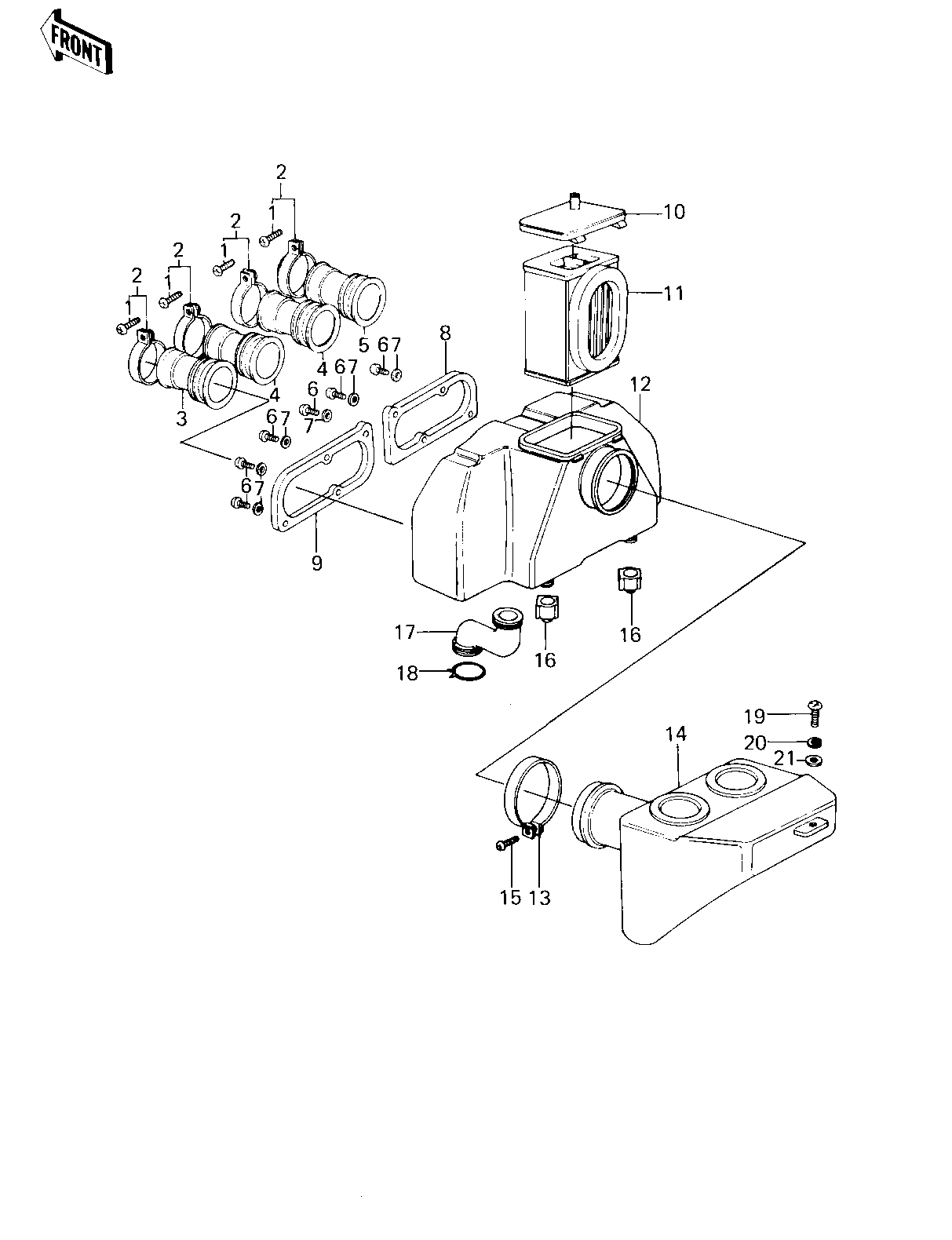

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SCREW,PAN HEAD | 1 | 92011-037 | 4 | ||
| CLAMP-INLET PIPE | 2 | 92037-061 | 4 | ||
| DUCT,AIR CLEANER,#1 | 3 | 14073-1022 | 1 | ||
| DUCT,AIR CLEANER,#2, | 4 | 14073-1023 | 2 | ||
| DUCT,AIR CLEANER,#4 | 5 | 14073-1024 | 1 | ||
| SCREW-PAN-CRSOSS,4X1 | 6 | 220B0412 | 8 | ||
| WASHER PLAIN 4MM | 7 | 410B0400 | 8 | ||
| PLATE,CARBURETOR HOL | 8 | 11040-003 | 1 | ||
| PLATE,CARBURETOR HOL | 9 | 11040-002 | 1 | ||
| CAP,AIR CLEANER | 10 | 11012-075 | 1 | ||
| ELEMENT,AIR CLNR | 11 | 11013-063 | 1 | ||
| BODY,AIR CLEANER | 12 | 11011-1025 | 1 | ||
| CLAMP | 13 | 92037-106 | 1 | ||
| SILENCER | 14 | 11016-009 | 1 | ||
| BOLT,5X50 | 15 | 92011-036 | 1 | ||
| CAP,DRAIN | 16 | 11012-1083 | 2 | ||
| TUBE,DRAIN | 17 | 92059-124 | 1 | ||
| CLAMP BREATHER PIPE | 18 | 92037-028 | 1 | ||
| SCREW PAN HEAD 6X16 | 19 | 220B0616 | 1 | ||
| WASHER SPRING 6MM | 20 | 461F0600 | 1 | ||
| WASHER PLAIN 6MM | 21 | 410B0600 | 1 |
| SCREW,PAN HEAD | |
| REF # | 1 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| CLAMP-INLET PIPE | |
| REF # | 2 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR CLEANER,#1 | |
| REF # | 3 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR CLEANER,#2, | |
| REF # | 4 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DUCT,AIR CLEANER,#4 | |
| REF # | 5 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CRSOSS,4X1 | |
| REF # | 6 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 4MM | |
| REF # | 7 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| PLATE,CARBURETOR HOL | |
| REF # | 8 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE,CARBURETOR HOL | |
| REF # | 9 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,AIR CLEANER | |
| REF # | 10 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELEMENT,AIR CLNR | |
| REF # | 11 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BODY,AIR CLEANER | |
| REF # | 12 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 13 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SILENCER | |
| REF # | 14 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,5X50 | |
| REF # | 15 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CAP,DRAIN | |
| REF # | 16 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,DRAIN | |
| REF # | 17 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLAMP BREATHER PIPE | |
| REF # | 18 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW PAN HEAD 6X16 | |
| REF # | 19 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 6MM | |
| REF # | 20 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN 6MM | |
| REF # | 21 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
