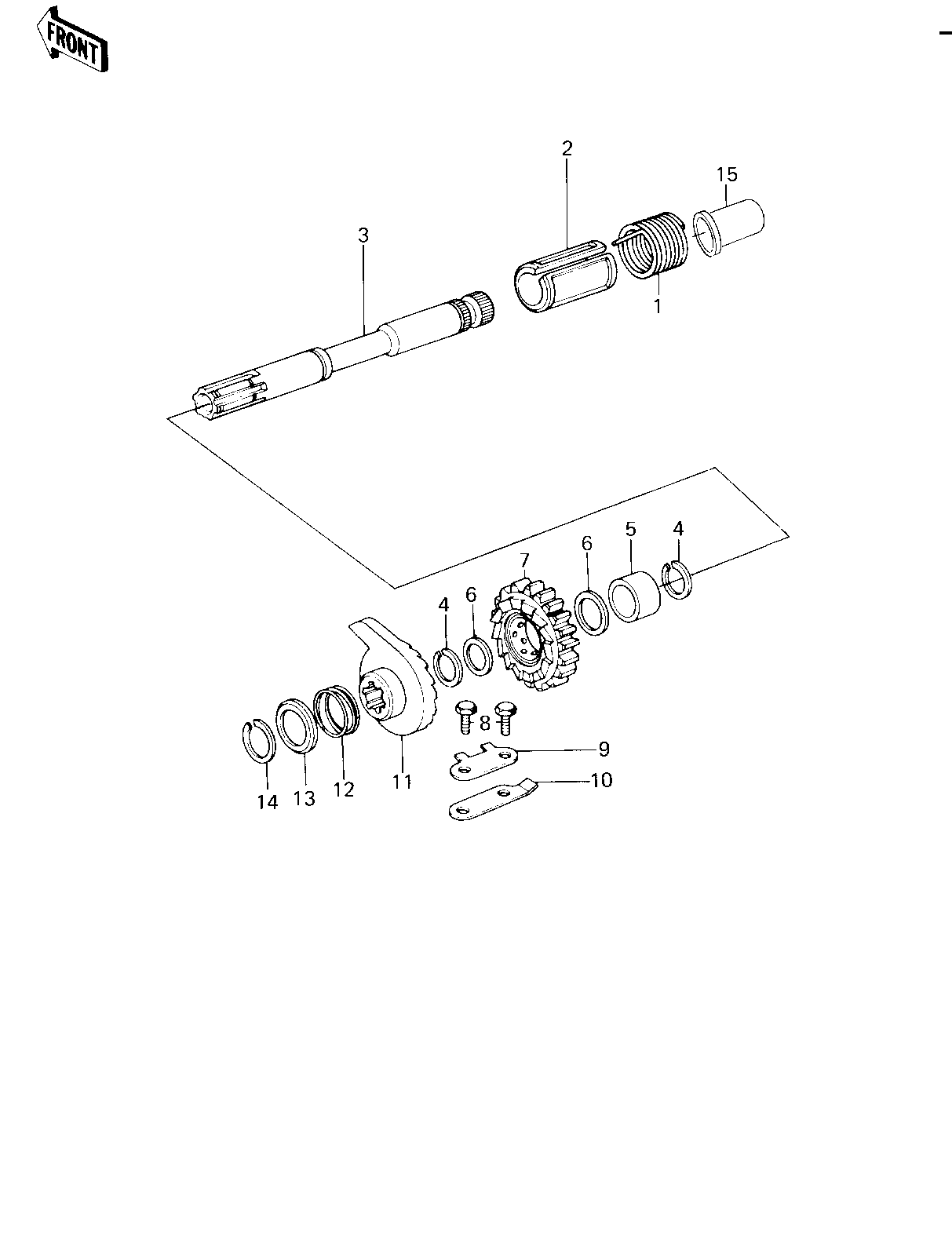

1978 Z1R - KICKSTARTER MECHANISM ('78 D1)
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| SPRING,KICKSTARTER | 1 | 92082-004 | 1 | ||
| GUID,KICK SHAFT | 2 | 13070-005 | 1 | ||
| SHAFT,KICKSTARTER | 3 | 13066-1004 | 1 | ||
| CIRCLIP,25MM | 4 | 92033-025 | 2 | ||
| COLLAR,KICKSHAFT | 5 | 92028-126 | 1 | ||
| WASHER,PLAIN,22MM | 6 | 92022-207 | 2 | ||
| GEAR,KICKSTARTER | 7 | 59051-1006 | 1 | ||
| BOLT-UPSET | 8 | 112G0614 | 2 | ||
| WASHER-LOCK | 9 | 92024-036 | AR | ||
| STOPPER,KICKSTARTER | 10 | 13072-012 | 1 | ||
| RATCHET,KICK SHAFT | 11 | 13078-011 | 1 | ||
| SPRING RATCHET | 12 | 92081-104 | 1 | ||
| CAP,KICKSTARTER | 13 | 92102-008 | 1 | ||
| CIRCLIP,19MM | 14 | 480J1900 | 1 | ||
| PLUG | 15 | 92074-037 | 1 |
