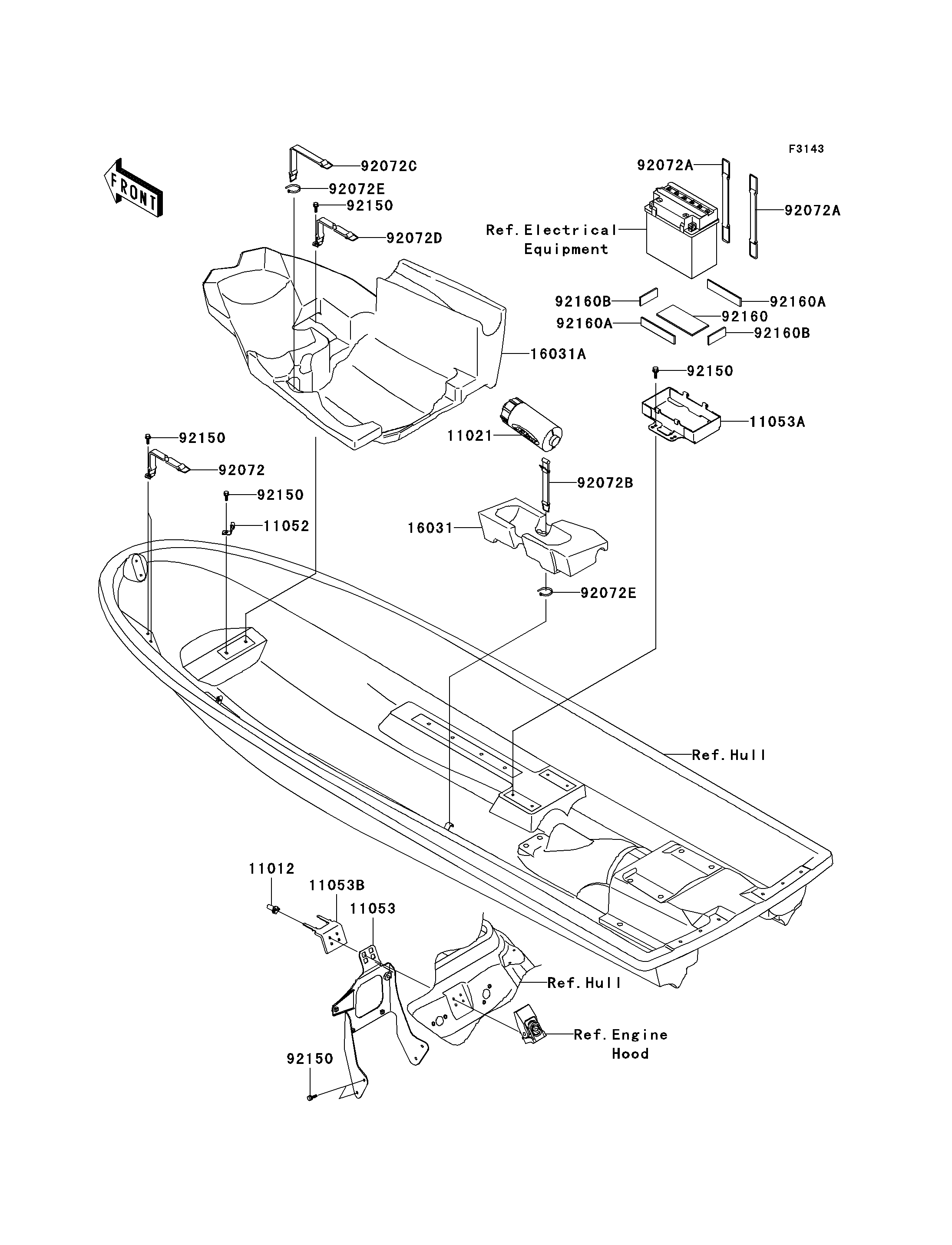

2011 JET SKI® 800 SX-R™ - Hull Fittings

DOWNLOAD PDF
SELECT A NEW PART
11012
11021
11052
11053
11053A
11053B
16031
16031A
92072
92072A
92072A
92072B
92072C
92072D
92072E
92072E
92150
92150
92150
92150
92150
92160
92160A
92160A
92160B
92160B
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,HOLDER 11012 11012-3768 2
CASE-ASSY,TOOL 11021 11021-3706 1
BRACKET 11052 11052-3773 1
BRACKET 11053 11053-3702 1
BRACKET,BATTERY 11053A 11053-3727 1
BRACKET 11053B 11053-3747 1
FLOAT 16031 16031-3941 1
FLOAT,FUEL TANK 16031A 16031-3985 1
BAND,OIL TANK 92072 92072-3812 2
BAND,BATTERY 92072A 92072-3841 2
BAND,TOOL CASE 92072B 92072-3859 1
BAND,FUEL TANK,LH 92072C 92072-3864 1
BAND,FUEL TANK,RH 92072D 92072-3865 1
BAND,L=100.08 92072E 92072-3882 2
BOLT,6X20 92150 92150-3758 12
DAMPER 92160 92160-1851 1
DAMPER 92160A 92160-3840 2
DAMPER,WATER MUFFLER 92160B 92160-3880 2
